EtherWAN Series

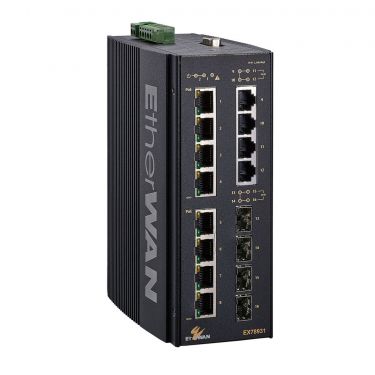

 EX78931-0VB   12-Port 10/100/1000BASE-TX with 8-port PoE + 4-port Gigabit SFP Hardened Managed Ethernet Switch

● Ultra High-Power PoE Switch 60W PoE
● Intelligent Management
● Remote Secure Access

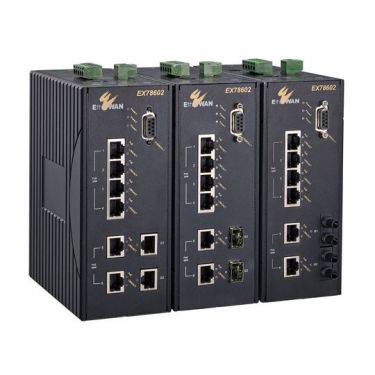

Hardened Managed 6-port 10/100BASE (4 x PoE + 2 x 60W PoE) and 2-port Gigabit Ethernet Switch

● Ultra High-Power PoE Switch 60W PoE
● Intelligent Management
● Remote Secure Access

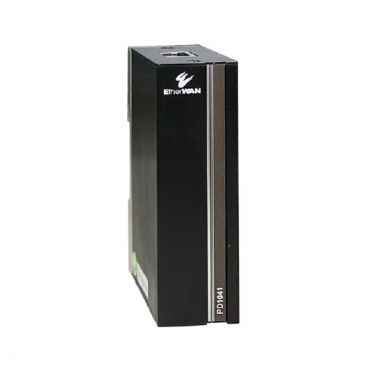

Hardened Surge Protection Device – RJ45

● Protection Solution Against Voltage Surge
● Flexible Installation
● Wide Temperature Range
● Compatible with 10/100BASE-T, Gigabit and PoE products

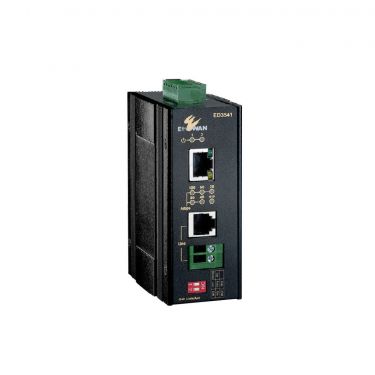

 Hardened 10/100BASE-TX Ethernet Extender

● Certified by UL60950-1 standard
● Up to 100Mbps at 300 meters distance
● Up to 1Mbps at 2600 meters distance
● -40°C to 75°C wide operating temperature
● Redundant power inputs with Terminal Block
● DIP switch to select Local or Remote side
● Hardened aluminium case
● DIN-rail mounting kit included

Managed 10/100/1000BASE-TX to 100/1000BASE-X Dual Rate Media Converter

● Complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X
● Complies with IEEE 802.3ah OAM standard
● Supports SNMP V1, V2 Management
● Supports IN-BAND Loop Back and Diagnostic
● Gigabit transmission supports 9K bytes jumbo frame
● One fiber interface supports dual rate 100BASE-FX and 1000BASE-SX/LX fiber transmission
● Supports IEEE802.3x Flow controls: Flow control for full duplex and Back pressure for half duplex
● Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● Supports Wall Mounting installation or use with EMC1600 media converter chassis system

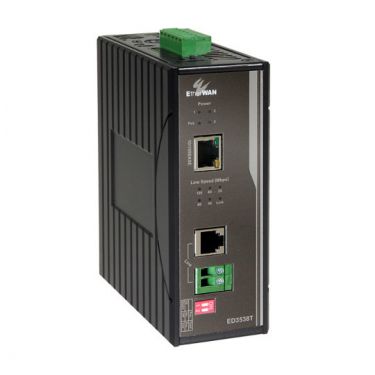

Hardened PoL/PoE Ethernet Extender over Copper Wires (including one ED3538T and one ED3538R)

● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Ethernet Port: 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100Mbps communications link over existing copper telephone wire
● Operates transparent to higher layer protocols
● Six speeds with speed indicator LEDs on front panel of unit,
● Up to 100Mbps @ about 300meters (984 ft.); 1Mbps @ about 2,200meters (7,2186 ft.)
● ED3538R supports IEEE802.3at PSE standard for PoE/PD applications
● Supports Power Over Link application up to 1,200 meters (3,937 ft.) for Max. 5 watts power consumed PoE powered devices
● Auto data rate negotiation for Ethernet extension interface
● Redundant power inputs with Terminal Block and DC Jack
● -40XC to 75XC (-40XF to 167XF) operating temperature range and tested at -40XC to 85XC (-40XF to 185XF)
● Hardened aluminum case
● Supports DIN-Rail, Panel and Rack mount installation

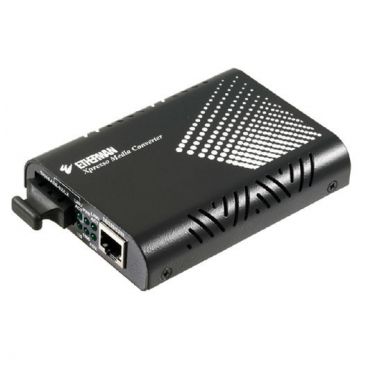

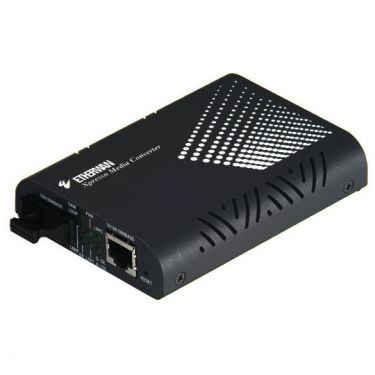

10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter

● Complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X
● Supports IEEE802.3x Flow controls: Flow control for full duplex and Back pressure for half duplex
● DIP switch configuration for "Link-Fault-Pass-Through," fiber auto/force mode
● Gigabit transmission supports 9K bytes jumbo frame
● Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● Packed with 12VDC external PSU
● Supports Wall Mounting installation or use with EMC1600 media converter chassis system

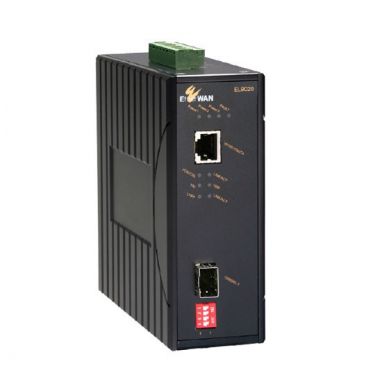

Hardened 10/100/1000BASE-TX to Gigabit SFP Media Converter

● Complies with NEMA TS1 & TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● DIP switch configuration for "Link-Fault-Pass-Through", fiber auto/force mode, link down alarm
● 1000Mbps-Full-duplex, Auto-Negotiation, Auto-MDI/MDIX
● SFP socket offers Gigabit fiber optic selection flexibility
● Full wire-speed forwarding rate
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack interfaces
● -40°C to 75°C (-40°F to 167°F) operating temperature range
● Hardened aluminum case
● Supports DIN-Rail, Panel or Rack Mounting installation

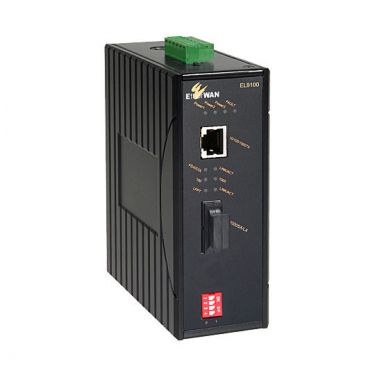

Hardened 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter

● Complies with NEMA TS1 & TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● DIP switch configuration for "Link-Fault-Pass-Through", fiber auto/force mode, link down alarm
● 10/100/1000Mbps-Full-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack
● -40°C to 75°C (-40°F to 167°F) operating temperature range
● Hardened aluminum case
● Supports DIN-Rail, Panel or Rack Mounting installation

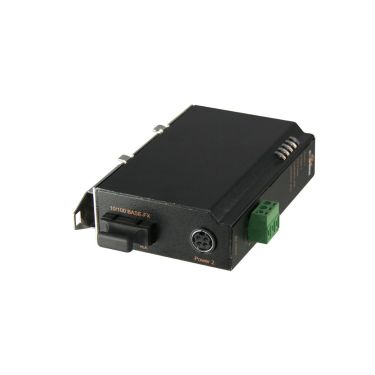

Industrial 10/100BASE-TX to 100BASE-FX Media Converter with PoE/PSE

● Supports PoE 30W high power and 15.4W IEEE802.3af PoE/PSE standard
● DIP switch configuration for "Link-Fault-Pass Through" speed, duplex mode
● 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX
● Supports full wire-speed forwarding rate
● Offers 228K bits buffer memory
● Industrial operating temperature -10°C to 60°C (14°F to 140°F)
● Aluminum case
● Supports DIN-Rail, Panel or Wall Mounting installation

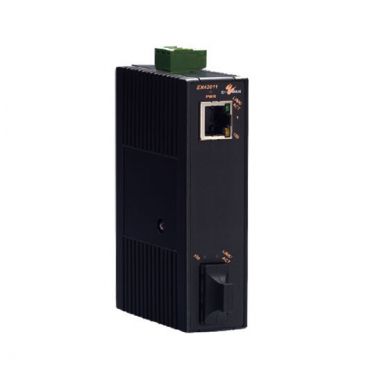

Industrial 10/100BASE-TX to 100BASE-FX Media Converter

● Provides 1-port 10/100BASE-TX plus 1-port 100BASE-FX
● The fiber port is available with SC or ST with a fiber connection that can reach up to 120Km (74.4miles)
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Supports 12 to 48VDC Power inputs
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● 384K bits buffer memory

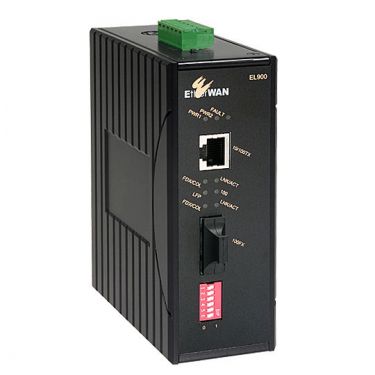

Hardened 10/100BASE-TX to 100BASE-FX Media Converter

● Complies with NEMA TS1 & TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● ISA 12.12.01 (UL1604) Class I, Division 2 Classified for use in hazardous locations (Applicable to versions with DC Terminal Block power option)
● DIP switch configuration for "Link-Fault-Pass-Through," link down alarm, speed, duplex mode
● 128K bits buffer memory
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● Alarms for power and port link failure by relay output
● -40°C to 75°C (-40°F to 167°F) operating temperature range
● Hardened aluminum case
● Supports DIN-Rail, Panel or Rack Mounting installation

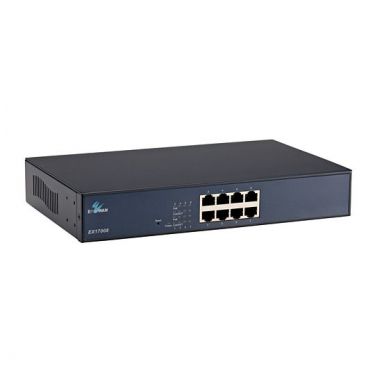

Web-smart 8-port PoE 10/100BASE-TX Ethernet Switch

● 8 ports support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port-based VLAN, QoS Mode, QoS Priority through the Web browser Interface
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 - 240VAC, 50 - 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

Unmanaged 8-port PoE (IEEE802.3at) 10/100BASE-TX and 2-port combo Gigabit SFP Ethernet Switch

● 8 10/100TX ports support 30W (IEEE802.3at) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 to 240VAC, 50 to 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

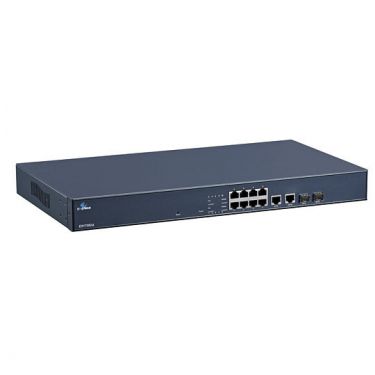

Web-Smart 8-port 10/100BASE-TX PoE (IEEE802.3at) and 2-port combo Gigabit SFP Ethernet Switch

● 8 10/100TX ports support 30W (IEEE802.3at) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port-based VLAN, QoS Mode, QoS Priority through the Web browser Interface
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 to 240VAC, 50 to 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

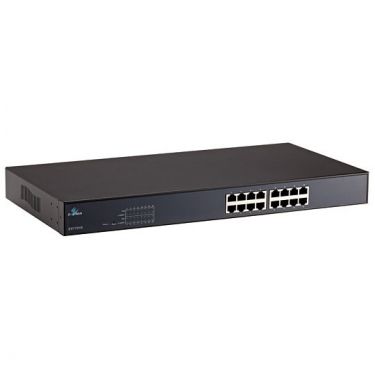

Web-smart 16-port 10/100BASE-TX PoE Ethernet Switch

● 16 ports support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port-based VLAN, QoS Mode, QoS Priority through the Web browser Interface
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 - 240VAC, 50 - 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

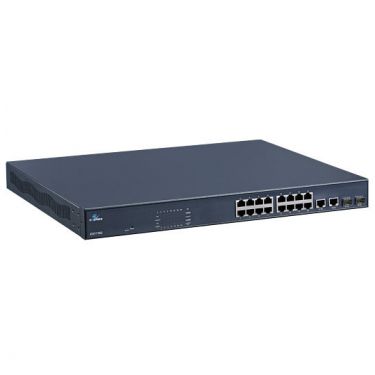

Unmanaged 16-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch

● 16 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Internal Universal Power Supply 100VAC to 240VAC, 50 to 60HZ
● Operating Temperature Range 0°C to 45°C (32°F to 113°F)

Web-smart 16-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch

● 24 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port based VLAN, QoS Mode, QoS Priority, MAC/Port based trunking through the Web browser interface
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Internal Universal PSU 100VAC - 240VAC, 50 - 60HZ
● Operating Temperature Range 0°C - 45°C (32°F - 113°F)

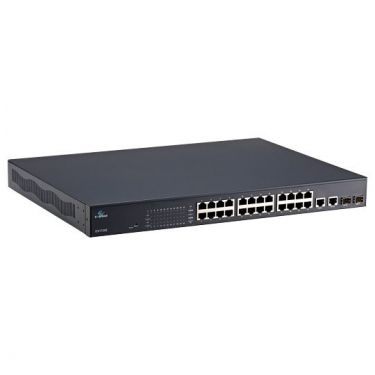

Web-smart 24-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch

● 24 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port based VLAN, QoS Mode, QoS Priority, MAC/Port based trunking through the Web browser interface
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Internal Universal PSU 100VAC - 240VAC, 50 - 60HZ
● Operating Temperature Range 0°C - 45°C (32°F - 113°F)

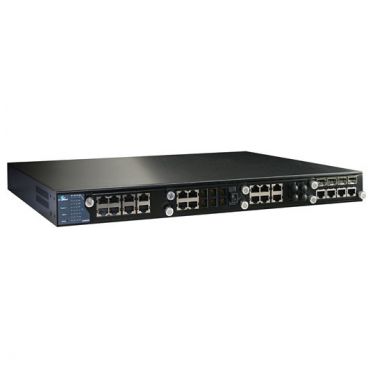

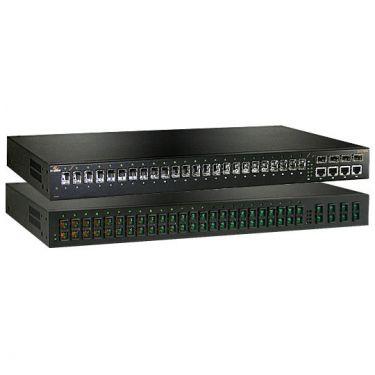

IEC61850-3/IEEE1613 Modulized Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with IEC61850-3/IEEE1613 for power substations & EN50121-4 for railway applications
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking with automatic link fail-over
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● Supports Command Line Interface in RS-232 Console
● Supports IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● Supports NTP
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range
