Dataq Instruments

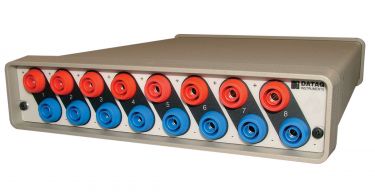

Dataq Instruments DI-4730 Serie
High-speed USB / Ethernet / PoE DAQ
● 8 beveiligde analoge differentiële ingangen
● Bereiken: ±2 to ±100 V of ±200mV to ±10 V
● tot ±120 V rms zonder schade
● Anti-aliasing Filter per kanaal instelbaar
● 16-bit A/D en tot 160 kHz sample frequentie
● USB, Ethernet en PoE Interfaces
● Optioneel te gebruiken als stand-alone datalogger
● Ondersteund ChannelStretch™ voor multi-unit synchronisatie:
● Ready-to-run & Easy to learn professionele WinDaq software
● .Net Classes voor Visual Studio programma ontwikkeling

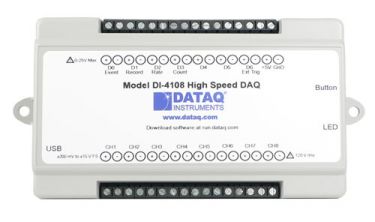

Dataq Instruments DI-4000 Serie
High-speed USB / Ethernet / PoE DAQ
● 8 beveiligde analoge differentiële ingangen
● Bereiken: ±2 to ±100 V of ±200mV to ±10 V
● tot ±120 V rms zonder schade
● Anti-aliasing Filter per kanaal instelbaar
● 16-bit A/D en tot 160 kHz sample frequentie
● USB, Ethernet en PoE Interfaces
● Optioneel te gebruiken als stand-alone datalogger
● Ondersteund ChannelStretch™ voor multi-unit synchronisatie:
● Ready-to-run & Easy to learn professionele WinDaq software
● .Net Classes voor Visual Studio programma ontwikkeling

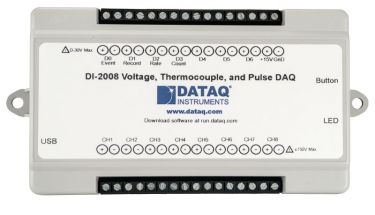

DI-2008 USB Voltage and Thermocouple Data Acquisition

● Eight differential and isolated analog input channels
● High resolution (16-bit A/D) measurements
● 10 mV to 50 V programmable range per channel in 12 steps
● Programmable support for type J, K, T, B, R, S, E, N thermocouples per channel
● ChannelStretch™ channel expansion to 128 analog and 112 digital channels
● 2000 Hz sample throughput for a single channel and 200 Hz for two or more
● USB interface
● Included WinDaq software for ready-to-run measurements

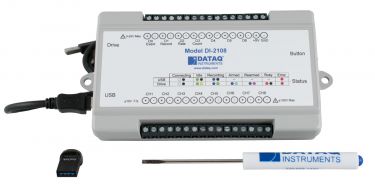

Dataq DI-2108 High-speed USB Data Acquisition with Anti-alias filters

● 4 or 8 armored analog differential inputs
● ±10 V measurement range
● Up to ±100 V without damage
● 16-bit measurement resolution
● Up to 220 kHz sample throughput rate
● 7 digital I/O ports (rate and count)
● Includes WinDaq Software
● .Net Classes for Visual Studio program development
● Optional upgrade to stand-alone datalogger

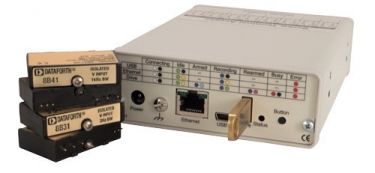

DI-4718B Data Acquisitie en Data Logger Systemen

● 8 analoge ingangen
● 160 kHz max sample frequentie
● Voor industriële metingen
● Maakt gebruik van geïsoleerde DI-8B meetversterkers
● Anti-aliasing Filter per kanaal
● Dataopslag naar PC of USB Stick
● Kanaal uitbreiding middels ChannelStretch™
● Inclusief WinDaq software

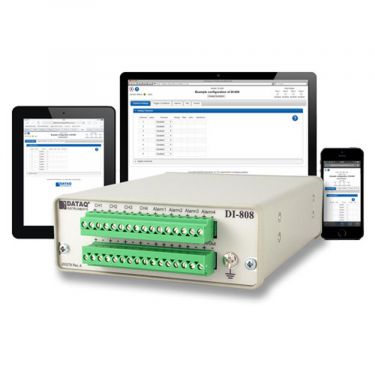

Eight-channel Web-based Voltage and Thermocouple Data Logger

● No software to install
● Intelligent data logger with built-in web server
● Allows remote real time display and configuration
● 8differential and isolated analog input channels
● Voltage or Thermocouple per channel configurable
● 12 input Voltage ranges: ±10mV ~±50V;
● Supports TC types J, K, T, B, R, S, E, or N
● 4 pulse input channels (frequency, or discrete function per channel)
● 4 real-time discrete alarm output channels with email/text notification
● Automatic time and date stamping
● Flexible triggering selections start and stop data recording
● Alarm status
● Date/time/day-of-week
● 20 programmable sampling intervals ranging from 25 mS to 1 hour
● 16-bit analog A/D resolution
● Built-in Ethernet interface

Dataq DI-730USB, 14-bit A/D , 8-channel, built-in isolation

● Measurement range of ±10 mV ~ ±1000 VDC (or peak AC) over six ranges
● 1000V input-to-output and channel-to-channel isolation
● Perfect for troubleshooting AC or DC motor drive systems.
● Measure field voltages and currents, control signals, RPM, and more
● Also for electric motor/generator maintenance and troubleshooting in mills and locomotion
● Easily replace bulky chart recorders
● 150 kHz Sample Rate
● 14-bit resolution
● USB communcation interface

DI-730-EN 14-bit A/D, 8 isolated channels,wide dynamic measurement range (10mV to 1000V full scale)

● Synchronous and Distributed Data Acquisition
● Measurement range of ±10 mV to ±1000 VDC (or peak AC) over six ranges
● 1000 V input-to-output and channel-to-channel isolation
● Perfect for troubleshooting AC or DC motor drive systems.
● Measure field voltages and currents, control signals, RPM, and more
● Also for electric motor/generator maintenance and troubleshooting in mills and locomotion
● Easily replace bulky chart recorders
● Portable, lightweight instrument
● 14-bit resolution
● Ethernet interface
● supports synchronous and distributed data acquisition up to 100 meters apart

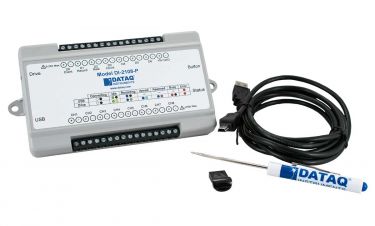

Dataq DI-2108-P, High-speed, 16-bit, Expandable USB DAQ

● 4 or 8 armored analog differential inputs
-  ±2.5, ±5, ±10, 0-5, 0-10 Volts
- Up to ±300 V without damage
● Up to 160 kHz sample throughput rate
● Optional upgrade to Stand-alone Datalogger
● Supports ChannelStretch™ multi-unit synchronization
- Up to sixteen instruments
- Up to 480 kHz throughput
- Up to 128 analog channels and 112 digital ports
● Seven digital I/O ports
- Programmable per port as input or switch
- Support for frequency measurements to 50 kHz
- Support for 16-bit counter
● Wide-ranging software support includes:
- Ready-to-run WinDaq software

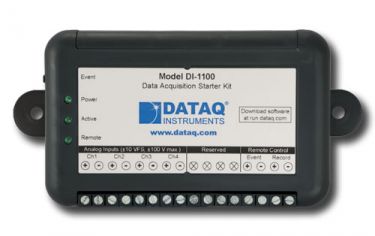

Low Cost, Compact USB Data Acquisition Starter kit, 4 analog channels and a full scale range of ±2.5 to ±100 Volts.

● Low-cost, Compact USB Data Acquisition Starter Kit
● Four Differential Analog Inputs
● ±2.5 to ±100 Volts full scale range
● 14-bit Resolution
● Supports ChannelStretch™ multi-unit synchronization
● Up to 160 kHz Sample Rate
● 7 Digital Ports
● Provided with WinDaq/Lite Software

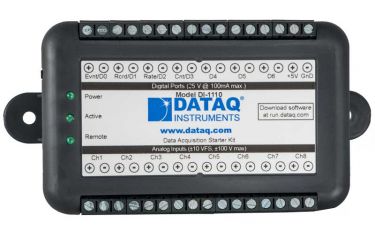

8-channel USB Data Acquisition Starter Kit

● Eight Analog Input Channels
● Differential Analog Input Configuration
● Up to ±100 V without damage
● 12-bit Measurement Resolution
● Armored Inputs Absorb Mistakes
● 160 kHz Analog Channel Sample Rate
● 7 Digital Ports
● USB-powered
● Comprehensive Programming Support
● Ready-to-run Software Support

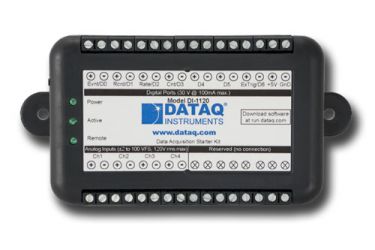

Four-channel USB Data Acquisition Starter Kit

● Four Analog Input Channels
● Differential Analog Input Configuration
● Enhanced noise immunity, and limited common mode volt tolerance.
● 12-bit Measurement Resolution
● Armored Inputs Absorb Mistakes
● Fast Analog Channel Sample Rate
● Two Digital Input Ports
● Supports 4-20 mA Measurements
● USB-powered
● Comprehensive Programming Support
● Ready-to-run Software Support

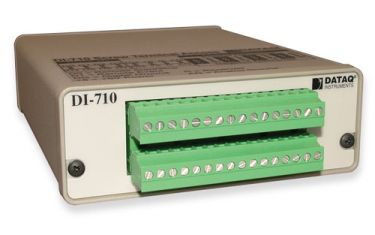

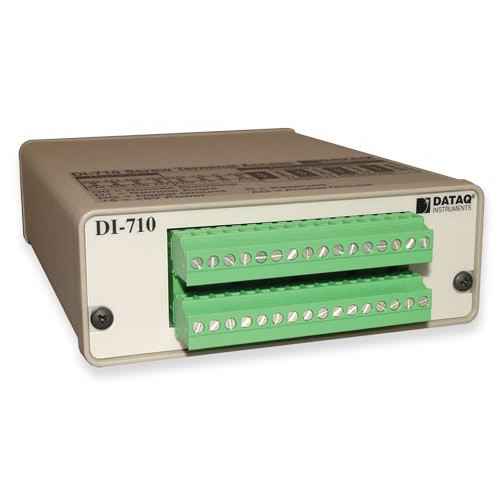

DI-710 Series Low-Cost, DAQ and Portable, USB Data Logger

● Low-Cost, Portable, USB or Ethernet Data Logger or Data Acquisition System
● 16 single-ended, 8 differential analog inputs

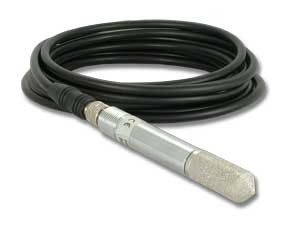

● HMP60 Relative Humidity (RH) and Temperature probe specifically for use with the DI-710
● Stand-alone data logger option allows in-the-field measurements to be saved to Secure Digital Cards (SD)
● Built-in Real Time Clock allows automatic time and date stamping of data acquired to SD memory when used in the stand-alone mode
● 14-bit analog to digital conversion
● Includes WinDaq Software
● Record up to 14,400 samples per second with Stand-alone models or up to 4,800 samples per second with PC-connected instruments (WinDaq/HS required to achieve recording rates over 1,108 Hz with PC-connected instruments)
● Measurement range of ±10mV to ±10V

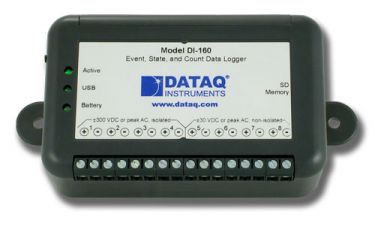

DI-160 geavanceeerde Event, Status en Teller Data Logger

● 8 kanaals data logger voor opname van events, statussen en pulsen
● 4 geïsoleerde kanalen geschikt voor channels ±300V en 230 VAC rms bronnen
● 4 niet-geïsoleerde kanalen voor contacten en to 30V discrete logica
● Opslag van data in universeel CSV (komma-gescheiden waarden) bestandsformaat
● Ingebouwde real time klok
● Opslag naar verwijderbare, SD-style geheugen voor bijna oneindige metingen
● USB interface
● Ingebouwde oplaadbare backup batterij

Low-Cost, Portable, Ethernet Data Logger

● Low-Cost, Portable, USB or Ethernet Data Logger or Data Acquisition System
● 16 single-ended, 8 differential analog inputs
● HMP60 Relative Humidity (RH) and Temperature probe specifically for use with the DI-710
● Stand-alone data logger option allows in-the-field measurements to be saved to Secure Digital Cards (SD)
● Built-in Real Time Clock allows automatic time and date stamping of data acquired to SD memory when used in the stand-alone mode
● 14-bit analog to digital conversion
● Includes WinDaq Software
● Record up to 10,000 samples per second (assumes SD speeds of 133x or higher) with Stand-alone models or up to 4,800 samples per second with PC-connected instruments (WinDaq/HS required to achieve recording rates over 1,108 Hz with PC-connected instruments)
● Measurement range of ±1.25V to ±10V

● Powered 7 port USB hub to synchronize multiple USB Dataq Instruments devices

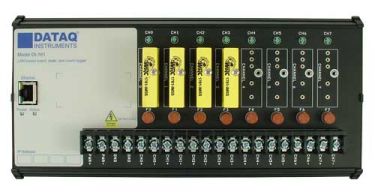

LAN-based Event Data Logger

● Measures how long, how many, and when events occur
● Perfect as an OEE (Overall Equipment Effectiveness) data logger
● Adapts to a wide range of signal types
● LAN-based for easy deployment, singularly or in groups
● Includes server-side software to aggregate and report results

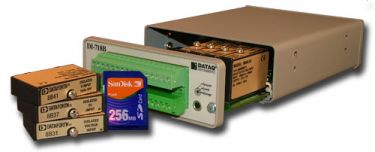

Eight-channel, DI-8B module data logger system

● Measures temperature, pressure, flow, current, voltage, and more
● Low-Cost, Portable, USB or Ethernet Data Logger. This product is similar to the DI-710 Series but with Signal Conditioned inputs
● Eight DI-8B signal-conditioned analog inputs
● Stand-alone data logger option allows in-the-field measurements to be saved to Secure Digital Cards (SD)
● 14-bit analog to digital conversion
● Includes WinDaq Software
● Record from as low as 0.0017 Hz to as much as 14,400 Hz
● Wide variety of measurement functions and ranges based on DI-8B module selections

14-bit, 8-channel, built-in isolation, wide dynamic measurement range (10 mV ~ 1000 V full scale)

● Synchronous and Distributed Data Acquisition
● Measurement range of ±10 mV ~ ±1000 VDC (or peak AC) over six ranges
● 1000V input-to-output and channel-to-channel isolation
● Perfect for troubleshooting AC or DC motor drive systems.
● Measure field voltages and currents, control signals, RPM, and more
● Also for electric motor/generator maintenance and troubleshooting in mills and locomotion
● Easily replace bulky chart recorders
● Replace entire racks of isolation amps, high & low voltage amps, and data acquisition subsystems with one, portable, lightweight, 9 × 7 × 1½ inch instrument
● 14-bit resolution
● Printer Port interface is standard, USB or Ethernet interfaces are optional
● Ethernet Option supports synchronous and distributed data acquisition up to 100 meters apart
