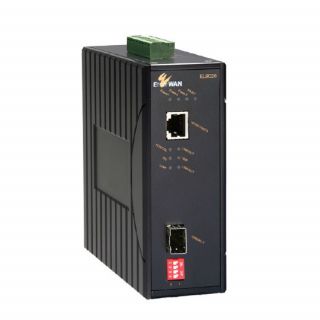

EtherWAN Media Converter EL9020
Levertijd:
3~4 weken
SKU
EL9020
Hardened 10/100/1000BASE-TX to Gigabit SFP Media Converter
● Complies with NEMA TS1 & TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● DIP switch configuration for "Link-Fault-Pass-Through", fiber auto/force mode, link down alarm
● 1000Mbps-Full-duplex, Auto-Negotiation, Auto-MDI/MDIX
● SFP socket offers Gigabit fiber optic selection flexibility
● Full wire-speed forwarding rate
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack interfaces
● -40°C to 75°C (-40°F to 167°F) operating temperature range
● Hardened aluminum case
● Supports DIN-Rail, Panel or Rack Mounting installation
The EL9020 Series provides media conversion between 10/100/1000BASE-TX and 1000BASE SFP Fiber. Built specifically for missioncritical applications in harsh environments, the EL9020's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing.
With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options the EL9020 is the ideal media converter for environments where connectivity is crucial.
Meer informatie
Art.nr.
EL9020
Fabrikant
EtherWAN
Technology
| Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab1000BASE-T, IEEE802.3z 1000BASE-SX/1000BASE-LX, IEEE802.3x |
| Forward and Filtering Rate | 1,488,100pps for 1000Mbps |
Interface
| Ethernet Port | 10/100/1000BASE-TX: 1 port Gigabit SFP: 1 port |
| LED Indicators | Per Unit: Power Status (Power1, Power2, Power3, Fault),LFPT Per Port: 10/100/1000TX: Link/Activity, Speed, Fullduplex/Collision Gigabit SFP: Link/Activity |
| Relay Contact | Relay contact rating with current 1A @ 30VDC,0.5A @ 120VAC |
Power
| Input Power | Input: 12 to 48VDC (Terminal Block); 12VDC (DC Jack) |
| Power Consumption | 7.68W, Max., 0.16A @ 48VDC |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
Mechanical
| Case | Aluminum case IP30 |
| Dimensions (w x h x d) | 50mm (W) x 110mm (D) x 135mm (H) (1.97" (W) x 4.33" (D) x 5.31" (H)) |
| Weight | 0.8Kg (1.76lbs.) |
| Installation | DIN-Rail (Top hat type 35mm), Panel, Rack Mounting |
Environmental
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) Tested @ -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% ~ 95% (non-condensing) |
Approvals
| ISO | Manufactured in an ISO9001 facility |
| Safety | UL508 |
| EMI | FCC Part 15, Class A EN61000-6-3 - EN55022 - EN61000-3-2 - EN61000-3-3 |
| EMS | EN61000-6-2 - EN61000-4-2 (ESD Standards) Contact: + / - 4KV Air: + / - 8KV - EN61000-4-3 (Radiated RFI Standards) 10V/m, 80 to 2.7GMHz; 80% AM - EN61000-4-4 (Burst Standards) Signal Ports: + / - 4KV D.C. Power Ports: + / - 4KV - EN61000-4-5 (Surge Standards) Signal Ports: + / - 1KV; Line-to-Line D.C. Power Ports: + / - 0.5KV; Line-to-earth - EN61000-4-6 (Induced RFI Standards) Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM - EN61000-4-8 (Magnetic Field Standards) 30A/m @ 50, 60Hz |
| Environmental Test Compliance | IEC60068-2-6 Fc (Vibration Resistance) 5g @ 10 - 150Hz, Amplitude 0.35mm (Operation/Storage/Transport) IEC60068-2-27 Ea (Shock) 25g @ 11ms (Half-Sine Shock Pulse; Operation) 50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport) FED STD 101C Method 5007.1 (Free fall w/ package) -Tested with Cross Weight and Drop High standard table |
