Ethernet I/O Modules
ICPDAS Ethernet I/O-modules bieden een geavanceerde oplossing voor het monitoren en besturen van industriële processen via Ethernet-netwerken. Deze modules bieden een breed scala aan I/O-functies, waaronder analoge in- en uitgangen, digitale ingangen en uitgangen, en relay-modules. Ze zijn ontworpen voor gebruik in diverse toepassingen, variërend van fabrieksautomatisering tot gebouwbeheersystemen.
Belangrijke kenmerken van de ICPDAS Ethernet I/O-modules zijn onder meer:
1. Ethernet-connectiviteit: Hiermee kunnen de modules eenvoudig worden geïntegreerd in bestaande Ethernet-netwerken voor naadloze gegevensoverdracht en communicatie.
2. Modulaire I/O-configuraties: De modules zijn verkrijgbaar in verschillende configuraties met diverse analoge en digitale ingangen en uitgangen, evenals relay-modules, waardoor ze kunnen worden aangepast aan de specifieke behoeften van de toepassing.
3. Real-time gegevensbewaking: Geavanceerde Ethernet I/O-modules bieden mogelijkheden voor real-time monitoring en controle van industriële processen, waardoor operators snel kunnen reageren op veranderingen en problemen.
4. Eenvoudige installatie en configuratie: De modules worden geleverd met gebruiksvriendelijke configuratietools en zijn gemakkelijk te installeren, zelfs voor gebruikers met beperkte technische expertise.
5. Duurzaamheid en betrouwbaarheid: ICPDAS Ethernet I/O-modules zijn gebouwd om bestand te zijn tegen de rigoureuze eisen van industriële omgevingen en bieden een hoge mate van betrouwbaarheid en prestaties.
Kortom, ICPDAS Ethernet I/O-modules bieden een krachtige en flexibele oplossing voor het monitoren en besturen van industriële processen via Ethernet-netwerken, waardoor efficiëntie, betrouwbaarheid en productiviteit worden verbeterd.
Ethernet I/O Module with 2-port Ethernet Switch, 8-ch High Speed AI - ET-2217H● Web Server for Configuration
● Support TCP Streaming, Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Dual-watchdog
● I/O Pair Connection (Push and Pull)
● Built-in I/O
High Speed 8-ch AI (Differential)
PoE Ethernet I/O Module with 2-port Ethernet Switch, 8-ch High Speed AI - PET-2217H● Web Server for Configuration
● Support TCP Streaming, Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Dual-watchdog
● I/O Pair Connection (Push and Pull)
● Built-in I/O
High Speed 8-ch AI (Differential)
Ethernet I/O Module with 2-port Ethernet Switch, 8-ch High Speed RTD Input - ET-2215H● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● 3-wire RTD Lead Resistance Compensation
● Supports Firmware Update via Ethernet
● 90Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
8-ch RTD Input
● Individual Channel Configuration
PoE I/O Module with 2-port Ethernet Switch, 8-ch High Speed RTD Input - PET-2215H● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● 3-wire RTD Lead Resistance Compensation
● Supports Firmware Update via Ethernet
● 90Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
8-ch RTD Input
● Individual Channel Configuration
Ethernet I/O Module with 2-port Ethernet Switch, 16-ch High Speed RTD Input - ET-2215H-16● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● 3-wire RTD Lead Resistance Compensation
● Supports Firmware Update via Ethernet
● 90Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch RTD Input
● Individual Channel Configuration
PoE I/O Module with 2-port Ethernet Switch, 16-ch High Speed RTD Input - PET-2215H-16● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● 3-wire RTD Lead Resistance Compensation
● Supports Firmware Update via Ethernet
● 90Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch RTD Input
● Individual Channel Configuration
Ethernet I/O Module with 8-ch High Speed Thermocouple Input, includes CN-1825M Daughter Board - ET-2218H/S1● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
8-ch Thermocouple Input
● Individual Channel Configuration
PoE I/O Module with 16-ch High Speed Thermocouple Input, includes CN-1825M Daughter Board - PET-2218H-16/S1● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch Thermocouple Input
● Individual Channel Configuration
PoE I/O Module with 8-ch High Speed Thermocouple Input, includes CN-1825M Daughter Board - PET-2218H/S1● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
8-ch Thermocouple Input
● Individual Channel Configuration
PoE I/O Module with 16-ch High Speed Thermocouple Input, includes CN-1825M Daughter Board - ET-2218H-16/S1● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch Thermocouple Input
● Individual Channel Configuration
Ethernet I/O Module with 16-ch High Speed Thermocouple Input, Support Standard Thermocouple Connector - ET-2218HS-16● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch Thermocouple Input
Support Standard Thermocouple Connector
● Individual Channel Configuration
PoE I/O Module with 16-ch High Speed Thermocouple Input, Support Standard Thermocouple Connector - PET-2218HS-16● Web Server for Configuration
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● Supports Firmware Update via Ethernet
● 100 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● Built-in I/O
16-ch Thermocouple Input
Support Standard Thermocouple Connector
● Individual Channel Configuration
Ethernet I/O Module with 4-ch AI Channel-to-Channel Isolation - ET-2217CI-4● Web Server for Configuration
● Support Modbus TCP/UDP and MQTT Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● I/O Pair Connection (Push and Pull)
● Software Configurable Voltage/Current Input
● Adjustable Sampling Rate (200Hz/10Hz per channel)
● Records with Time Stamps for Voltage and Current Measurements
480,000 records/each channel
● Built-in I/O
4-ch AI (Differential)
● 3000V DC Channel-to-Channel Isolation
Ethernet I/O Module with 8-ch AI Channel-to-Channel Isolation - ET-2217CI● Web Server for Configuration
● Support Modbus TCP/UDP and MQTT Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● I/O Pair Connection (Push and Pull)
● Software Configurable Voltage/Current Input
● Adjustable Sampling Rate (200Hz/10Hz per channel)
● Records with Time Stamps for Voltage and Current Measurements
320.000 records/each channel
● Built-in I/O
8-ch AI (Differential)
● 3000V DC Channel-to-Channel Isolation

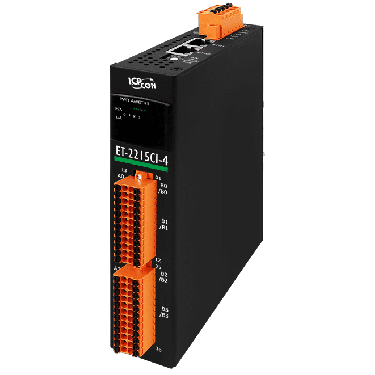

Ethernet I/O Module with 4-ch High Speed RTD Input - ET-2215CI-4● Web Server for Configuration
● Support Modbus TCP/UDP and MQTT Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● I/O Pair Connection (Push and Pull)
● 3-wire RTD Lead Resistance Compensation
● Supports Firmware Update via Ethernet
● 90 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● 3000 VDC Channel-to-Channel Isolation
● Built-in I/O
4-ch RTD Input
● Individual Channel Configuration

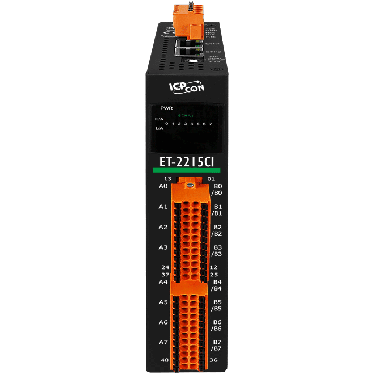

Ethernet I/O Module with 8-ch High Speed RTD Input - ET-2215CI● Web Server for Configuration
● Support Modbus TCP/UDP and MQTT Protocols
● 2-port Ethernet Switch (LAN bypass) for Daisy-chain Wiring
● I/O Pair Connection (Push and Pull)
● 3-wire RTD Lead Resistance Compensation
● Supports Firmware Update via Ethernet
● 90 Hz High-speed Sampling Rate for each Channel
● Open Wire Detection
● 3000 VDC Channel-to-Channel Isolation
● Built-in I/O
8-ch RTD Input
● Individual Channel Configuration

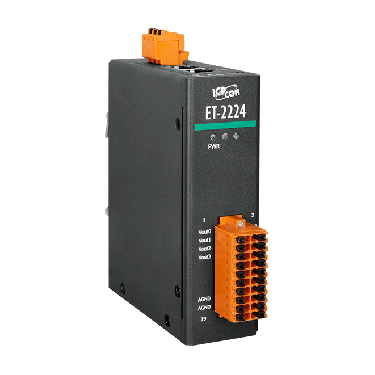

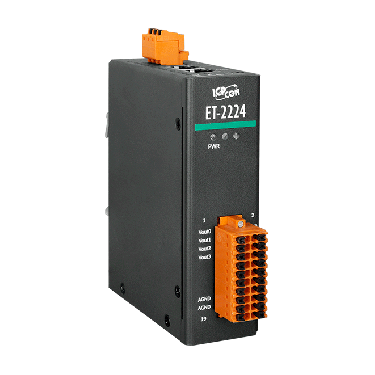

Ethernet I/O Module with 4-ch Analog Outputs - ET-2224● Built-in Web Server
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
● Dual Watchdog
● I/O Pair Connection (Push and Pull)
● Built-in I/O

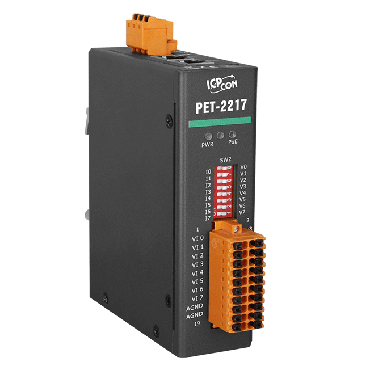

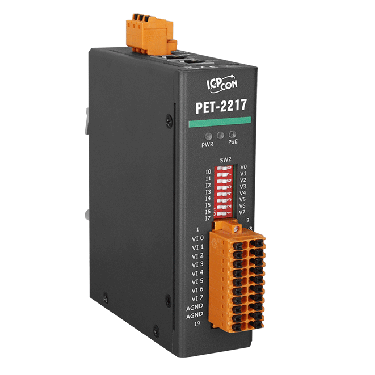

ICPDAS - PoE Ethernet I/O Module with 2-port Ethernet Switch, 8/16-ch Analog Input - PET-2217● Built-in Web Server
● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
● 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
● Dual Watchdog
● I/O Pair Connection (Push and Pull)
● Built-in I/O
AI: 8 Differential or 16 Single-ended Analog Inputs

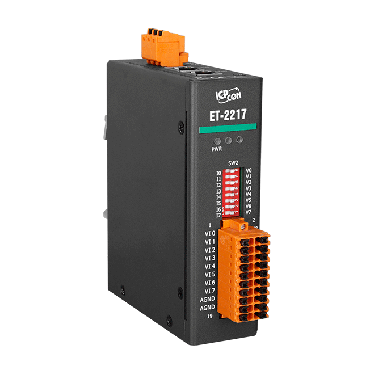

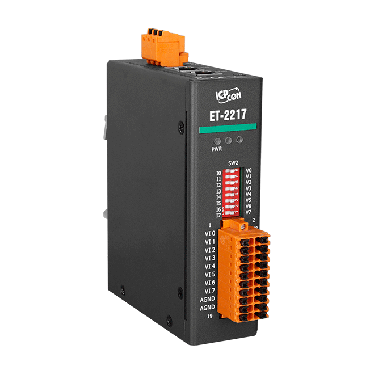

ICPDAS - Ethernet I/O Module with 2-port Ethernet Switch, 8/16-ch Analog Input - ET-2217● Built-in Web Server● Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols● 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring● Dual Watchdog● I/O Pair Connection (Push and Pull)● Built-in I/OAI: 8 Channels or 16 Single-ended Analog Inputs

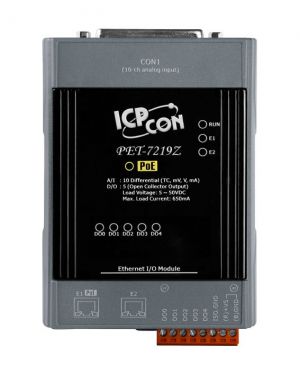

ICPDAS PET-7219ZPoE Ethernet I/O Module with 2-port Ethernet Switch, 10 Analog inputs and 6/3 Digital outputs (RoHS)
● Built-in Web Server
● Web HMI
● Support for both Modbus TCP and Modbus UDP Protocols
● Communication Security
● Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C
● I/O Pair Connection
● Built-in I/O
● Analog Input : 10 Channels with 240 Vrms Overvoltage Protection
● Digital Outputs : 6/3 Channels
