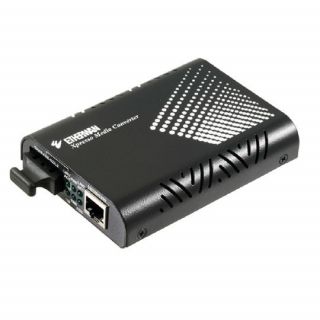

EtherWAN Media Converter EL2211
10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter
● Complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X
● Supports IEEE802.3x Flow controls: Flow control for full duplex and Back pressure for half duplex
● DIP switch configuration for "Link-Fault-Pass-Through," fiber auto/force mode
● Gigabit transmission supports 9K bytes jumbo frame
● Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● Packed with 12VDC external PSU
● Supports Wall Mounting installation or use with EMC1600 media converter chassis system
The EL2211 Series provides media conversion between 10/100/1000BASE-T(X) and 1000BASE-SX/LX/BX Fiber. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be active or disabled. With Gigabit transmission rate, the EL2211 supports Jumbo Frame up to 9K bytes. The EL2211 is the ideal media converter for enterprise environments.
EtherWAN – “When Connectivity is Crucial”.
| Standards | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3z 1000BASE-SX/1000BASE-LX IEEE802.3x Full duplex and flow control |
| Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps |
| Ethernet Port | 10/100/1000BASE-TX: 1 port 100/1000BASE-SX/LX/BX: 1 port |
| LED Indicators | Per Unit: Power Status, LFPT Per Port: FX/TX Speed, Link/Activity |
| Input Power | Input Voltage: 12VDC |
| Power Consumption | 3W Max. 0.23A @ 12VDC |
| Case | Aluminum case |
| Dimensions (w x h x d) | 80.3mm (W) x 109.2mm (D) x 23.8mm (H) (3.16" (W) x 4.3" (D) x 0.94" (H)) |
| Weight | 150g (0.33lbs.) |
| Installation | Wall Mounting |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (-14°F to 158°F) |
| Humidity | 5% ~ 95% (non-condensing) |
| ISO | Manufactured in an ISO9001 facility |
| Emission Compliance |
CE Mark Class A FCC Part 15 Class A VCCI Class A |
