Maintenance Solution

ICP DAS is designed for Remote maintenance M-4132 module is specially designed for the remote maintenance solution with voice streaming. This module provides 2 major technologies on networking: Voice streaming and Pair connection. The Pair connection means that the user can operate remote COM port device via Ethernet TCP/IP protocol just like a local COM port and the Voice streaming means the user can talk to remote operator while operate remote COM-linked devices. Refer to the following graph.
- ICPDAS M2M-710D
Remote Maintenance with serial streaming Solution
● Provide pair connection (RS-232,RS-485) on network
● Support Server and Client communication mode
● Support VxComm function in server mode (V13 or latter)
● Be applied with other M2M products (M-4132, M2M-720-A
● Support RS-232 or RS-485 serial communication ports
● Built-in self-tuner ASIC chip for RS-485 port
● Web-based administration
● Built-in MiniOS7 OS to keep off the computer virus
● Ethernet Protocol: TCP, UDP, IP, ICMP, ARP, RARP
● Provide dynamic DNS function
● Supply static IP/DHCP
● Supply DDNS(Dynamic DNS)
● Quick start
● 5-Digit 7 Segment LED Display
● EMI, RoHS compliance - ICPDAS M2M-720A
Intelligent Remote Maintenance Device Server
● Support voice streaming on network
● Provide pair connection (RS-232, RS-485) on network
● Support server and client function
● Server mode can manage max 64 clients (Clients can be M-4132, M2M-720-A, M2M-710D …)
● Support voice broadcast function in server mode
● Support Virtual COM technology
● Web-based administration
● Linux 2.6 platform
● Provide Static IP/DHCP/PPPoE
● Provide dynamic DNS function to resolve the problem without the fixed real IP
● Provide event record and e-mail function
● Built-in web server, FTP server
● Built-in RTC
● Built-in self-tuner ASIC chip for RS-485 port
● Provide LED indicators
● Robust, fan less design
● CE/FCC, EMI, RoHS compliance - ICPDAS M-4132

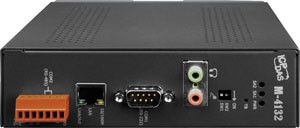

Remote Maintenance Device server with audio communication
● Support voice streaming on network
● Provide pair connection on network
● Web-based administration
● Linux 2.6 platform
● Support TCP/IP protocols
● Provide dynamic DNS function
● Provide event record and e-mail function
● Built-in web server, FTP server
● Built-in RTC
● Built-in self-tuner ASIC chip for RS-485 port
● 2500V isolated on RS-485 port
● Provide LED indicators
● Robust, fan less design
● CE/FCC, EMI, RoHS compliance - ICPDAS M2M-711D

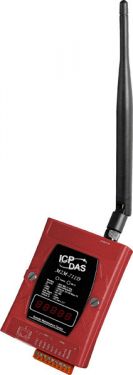

Remote maintenance Wi-Fi Device Terminal Unit
● Support VxServer software
● Provide pair connection (RS-232,RS-485) on network
● Support Server and Client communication mode
● Be applied with other M2M products (M2M-420-A, M2M-720-A, M2M-710D…)
● Support RS-232 or RS-485 serial communication ports
● Built-in self-tuner ASIC chip for RS-485 port
● Web-based administration
● Built-in MiniOS7 OS to keep off the computer virus
● Ethernet Protocol: TCP, UDP, IP, ICMP, ARP, RARP
● Supports IEEE 802.11 b/g for Wi-Fi mode
● Supports WEP-64,WEP-128, WPA-TKIP and WPA2-AES encryption for AP mode
● Supports WEP-64,WEP-128 encryption for Ad Hoc mode
● Provide dynamic DNS function
● Supply static IP/DHCP (Ad Hoc mode don’t support DHCP)
● Quick start
● 5-Digit 7 Segment LED Display
● EMI, RoHS compliance - ICPDAS M2M-520-AV
Intelligent Remote Maintenance Device Server
● Support voice and video streaming on network
● Provide pair connection (RS-232, RS-485) on network
● Support server and client function
● Server mode can manage max 64 clients (Clients can be M-4132, M2M-520-AV, M2M-720-A, M2M-710D …)
● Support voice broadcast function in server mode
● Support Virtual COM technology
● Support VPN (Virtual Private Network) technology
● Support DES/AES encryption and decryption
● Web-based administration
● Linux 2.6 platform
● Provide Static IP/DHCP/PPPoE
● Provide dynamic DNS function to resolve the problem without the fixed real IP
● Provide event record and e-mail function
● Built-in web server, FTP server
● Built-in RTC
● Provide LED indicators
● Robust, fan less design
● EMI, RoHS compliance
