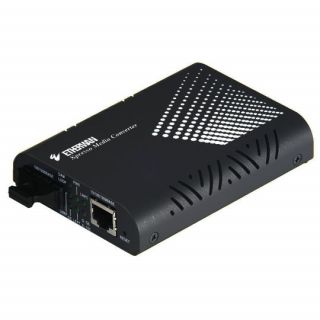

EtherWAN Media Converter EL2321 Series
Managed 10/100/1000BASE-TX to 100/1000BASE-X Dual Rate Media Converter
● Complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X
● Complies with IEEE 802.3ah OAM standard
● Supports SNMP V1, V2 Management
● Supports IN-BAND Loop Back and Diagnostic
● Gigabit transmission supports 9K bytes jumbo frame
● One fiber interface supports dual rate 100BASE-FX and 1000BASE-SX/LX fiber transmission
● Supports IEEE802.3x Flow controls: Flow control for full duplex and Back pressure for half duplex
● Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● Supports Wall Mounting installation or use with EMC1600 media converter chassis system
The EL2321 Series provides media conversion between 10/100/1000BASE-T(X) and 100/1000BASE-SXLX Fiber or 100/1000BASE SFP Fiber. EL2321's fiber design is compatible to 100BASE fiber or 1000BASE fiber transceiver.
The EL2321 managed media converter supports Telnet, SNMP v1/v2, and web browser management enabling value-added connectivity and bandwidth control. Key features include; 802.3ah OAM compliance, VLAN tagging, broadcast storm protection, Far-End-Fault, and Link-Fault-Pass-Through resulting in reliable communications between networks. With link down alarming and a wide rangeof fiber connectivity options the EL2321 is the ideal media converter for environments where connectivity is variable.
| Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-SX/1000BASE-LX, IEEE802.3x |
| Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps |
| Ethernet Port | 10/100/1000BASE-TX: 1 port 100/1000BASE-SX/LX/BX: 1 port |
| LED Indicators | Per Unit: Power Status, OAM loop Per Port: TX Speed, Link/Activity, Full-duplex |
| Input Power | Input Voltage: 12VDC |
| Power Consumption | 3W Max. 0.25A @ 12VDC |
| Case |
lCasing Metal case |
| Dimensions (w x h x d) | 80.3mm (W) x 109.2mm (D) x 23.8mm (H) (3.16"(W) x 4.30" (D) x 0.94" (H)) |
| Weight | 150g (0.33lbs.) |
| Installation | Wall Mounting |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% ~ 95% (non-condensing) |
| ISO | Manufactured in an ISO9001 facility |
| Emission Compliance |
CE Mark Class A FCC Part 15 Class A VCCI Class A |
