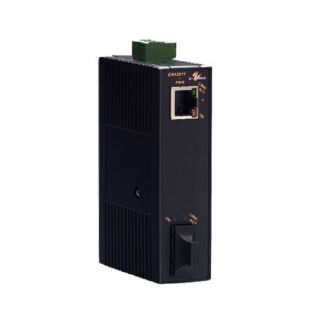

EtherWAN Media Converter EX42011
Industrial 10/100BASE-TX to 100BASE-FX Media Converter
● Provides 1-port 10/100BASE-TX plus 1-port 100BASE-FX
● The fiber port is available with SC or ST with a fiber connection that can reach up to 120Km (74.4miles)
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Supports 12 to 48VDC Power inputs
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● 384K bits buffer memory
The EX42011 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber.
Built specifically for mission-critical applications in harsh environments, the EX42011’s industrial design features high shock and vibration resistance, electrical noise immunity, a wide operating temperature range from -10°C to 60°C. With link down alarming and a wide range of fiber connectivity options, the EX42011 is the ideal media converter for industrial environments.
EtherWAN – “When Connectivity is Crucial”.
Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/100BASE-FX, IEEE802.3x |
Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps |
Packet Buffer Memory | 384K bits |
Processing Type | Store-and-Forward Half-duplex back-pressure and IEEE802.3x full-duplex flow control |
Ethernet Port | 10/100BASE-TX: 1 port 100BASE-FX: 1 port |
LED Indicators | Per Unit: Power Status (Power1, Power2) Per Port: 10/100TX, 100FX: Link/Activity (Green),Speed (Yellow) |
Input | Input Voltage: 12 to 48VDC (Terminal Block) |
Power Consumption | 4.3W Max. 0.3A @ 12VDC, 0.15A @ 24VDC, 0.07A @ 48VDC |
Reverse Polarity Protection | Present |
Casing | Plastic case IP30 |
Dimensions (w x h x d) | 26mm (W) x 70mm (D) x 110mm (H) (1.02" (W) x 2.76" (D) x 4.33" (H)) |
Weight | 0.2Kg (0.44lb.) |
Installation | DIN-Rail (Top hat type 35mm) Mounting |
Operating Temperature | -10°C to 60°C (14°F to 140°F) Tested @ -20°C to 70°C (-4°F to 158°F) |
Storage Temperature | -25°C to 85°C (-13°F to 185°F) |
Humidity | 5% to 95% (non-condensing) |
ISO | Manufactured in an ISO9001 facility |
Safety | UL60950-1, EN60950-1, IEC60950-1 |
EMI | FCC Part 15, Class A, VCCI EN61000-6-4 - EN55022 - EN61000-3-2 - EN61000-3-3 |
EMS |
EN61000-6-2 |
Environmental Test Compliance | IEC60068-2-6 Fc (Vibration Resistance) 5g @ 10 - 150Hz, Amplitude 0.35mm (Operation/Storage/Transport) IEC60068-2-27 Ea (Shock) 25g @ 11ms (Half-Sine Shock Pulse; Operation) 50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport) FED STD 101C Method 5007.1 (Free fall w/ package) -Tested with Cross Weight and Drop High standard table |
