EtherWAN Ethernet Switch EX78900

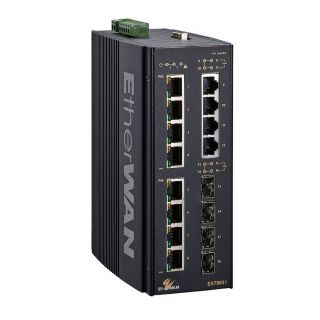

EX78931-0VB 12-Port 10/100/1000BASE-TX with 8-port PoE + 4-port Gigabit SFP Hardened Managed Ethernet Switch
● Ultra High-Power PoE Switch 60W PoE
● Intelligent Management
● Remote Secure Access
EtherWAN's EX78900 Series is a hardened DIN-rail mounted 16-port Gigabit switching platform. It features with 60W and IEEE802.3at/af Power over Ethernet combining with robust management features required for mission-critical and harsh environments where sustained connectivity is crucial.
The EX78900 Series is equipped with 12 x 10/100/1000 BASE-TX (8 x PoE port), in combination with 4 Gigabit SFP ports. The Ultra PoE ports provide up to 60W/port with a total power budget of 240W, making the switch truly versatile to connect with PoE Powered Devices (PD) with different bandwidth and power consumption requirements such as outdoor PTZ dome cameras, wireless access points, and way-side communication devices. The EX78900 Series is equipped with EtherWAN's Alpha-Ring self-healing technology, providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption. Users are able to access management features such as port security, IGMP snooping, port-based VLAN, GARP protocols, link aggregation and ACL, via web browser, telnet, SSH, SNMP, RMON, TFTP, and RS-232 console interfaces.
With the hardened specifications, the EX78900 Series is designed to operate at -40°C to 75°C in harsh environments, where high ESD, shock, and vibration may be present.
EtherWAN — "When Connectivity is Crucial."
| Standards | • IEEE802.3 10BASE-T • IEEE802.3u 100BASE-TX/100BASE-FX • IEEE802.3ab 1000BASE-T • IEEE802.3z 1000BASE-SX/1000BASE-LX • IEEE802.3x Full duplex and flow control • IEEE802.1p QoS • IEEE802.1Q Tag VLANs • IEEE802.1w RSTP • IEEE802.1x Port-based Network Access Control • IEEE802.3af/at Power over Ethernet |
| Forward and Filtering Rate | • 14,880pps for 10Mbps • 148,810pps for 100Mbps • 1,488,100pps for 1000Mbps |
| Packet Buffer Memory | 12M bits |
| Processing Type | • Store-and-Forward • Auto Negotiation • Half-duplex back-pressure and IEEE802.3x full-duplex flow control • Auto MDI/MDIX |
| Address Table Size | • 16K MAC addresses |
| Jumbo frame | • 9216 bytes |
| Input | • Redundant power inputs: Terminal block: 55 (52 - 57) VDC |
| Power Consumption | • Device: Max. 20W (without PoE) PoE Power Output • PoE can be configured as: 1. 6-port 15.4 W PoE and 2- port 60 watt PoE 2. 8-port 30W PoE 3. 4-port 10/100/1000 TX and 4-port 60 watt PoE 4. Other PoE power level configuration can be done through firmware • PoE power budget: 240W |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Ethernet Port | • 10/100/1000BASE-TX (PoE): 12 ports • 1000BASE-SFP: 4 ports |
| Console Port | One DB9 RS-232 port |
| LED Indicators | • Per Unit: Power 1, Power 2 • Per PoE Port: PoE Status (Orange) • Per Port: Link/Activity (Green) |
| Case | • Aluminum Case • IP30 |
| Dimensions (w x h x d) | • 72mm (W) x 140mm (D) x 170mm (H) |
| Installation | • DIN-Rail (Top hat type35mm), Rack, or Wall mounting |
| Weight | 1.1Kg |
| Operating Temperature | -40 °C ~ +75 °C Tested @ -40 °C ~ +85 °C |
| Storage Temperature | -45 °C ~ +85 °C |
| Humidity | 5% to 95% (non-condensing) |
| ISO | • Manufactured in an ISO9001 facility |
| EMI | FCC Part 15, Class A EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 |
| EMS | EN61000-6-2 • EN61000-4-2 (ESD Standards) • EN61000-4-3 (Radiated RFI Standards) • EN61000-4-4 (Burst Standards) • EN61000-4-5 (Surge Standards) • EN61000-4-6 (Induced RFI Standards) • EN61000-4-8 (Magnetic Field Standards) |
| Environmental Test Compliance | IEC60068-2-6 Fc (Vibration) IEC60068-2-27 Ea (Shock) IEC60068-2-32 Ed (Free fall) |
