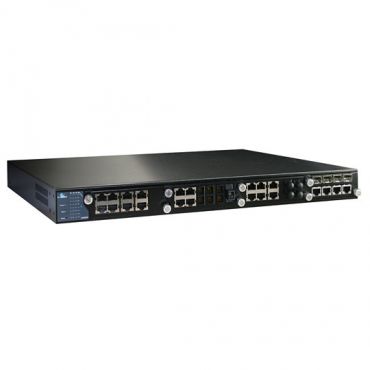

EtherWAN Ethernet Switch EX29000

Levertijd:
3~4 weken
SKU
EX29000

IEC61850-3/IEEE1613 Modulized Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with IEC61850-3/IEEE1613 for power substations & EN50121-4 for railway applications
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking with automatic link fail-over
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● Supports Command Line Interface in RS-232 Console
● Supports IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● Supports NTP
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range

Brochure EN

EtherWAN’s EX29000 Series provides an industrial Fully Managed 28-port switching platform combining high performance switching backbone with robust and secure management features required for mission critical and industrial environments where sustained connectivity is crucial.

Highly modularized, the EX29000 switch supports up to 28 electrical and/or optical interfaces with data transfer rates of 10/100 Mbit/s.and up to four Gigabit, Fixed Fiber, or SFP Combo port options. Mountable on a 1U rack, the EX29000 Series is equipped with EtherWAN’s Alpha-Ring self-healing technology, providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption.

Users are able to access management features such as port security, IGMP snooping, VLANs, GARP protocols, LACP to name a few via web browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interface.

Meer informatie
Art.nr.
EX29000
Fabrikant
EtherWAN
Land van herkomst
Taiwan
Technology
Standards IEEE802.3 10BASE-T, IEEE802.3u 100BASE-
TX/100BASE-FX,
IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-
SX/1000BASE-LX,
IEEE802.3x, IEEE802.1p, IEEE802.1Q, IEEE802.1w,
IEEE802.1x
Forward and Filtering Rate 14,880pps for 10Mbps
148,810pps for 100Mbps
1,488,100pps for 1000Mbps
Packet Buffer Memory 3M bits
Processing Type Store-and-Forward
Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Address Table Size 8192 MAC addresses
Interface
Ethernet Port 10/100BASE-TX: 24, 16, 8 or 0 port
100BASE-FX: 0, 4, 8, 12, 16, 20 or 24 ports
Gigabit: 0, 2 or 4 ports
Console Port Port: One DB9 RS-232 port
LED Indicators Per Unit: Power Status
Per Port: 10/100TX, 100FX: Link/Activity (Green)
10/100/1000TX, 1000SX/LX: Link/Activity(Green)
SFP Selected: Selected/Unselected (Green)
Power
Input (T) : + / - 48VDC(36 - 75VDC) Internal Universal PSU
(W) : 88 - 370VDC and 90 - 264VAC Internal UniversalPSU
(C) : 90 - 264VAC, 50 - 60Hz Internal Universal PSU
Power Consumption 42.7W Max.
Overload Current Protection Present
Mechanical
Casing Metal case
IP30
Dimensions (w x h x d) Single Power :
442mm (W) x 343mm (D) x 44.2mm (H)
(17.4" (W) x 13.5" (D) x 1.74" (H))
Weight 4.4Kg (9.68lbs.)
Installation Rack Mounting
Environmental
Operating Temperature -10°C to 60°C (14°F to 140°F)
Tested @ -20°C to 70°C (-4°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% (non-condensing)
Approvals
ISO Manufactured in an ISO9001 facility
EMI FCC Part 15, Class A
EN61000-6-4
- EN55022, EN61000-3-2, EN61000-3-3
EMS

EN61000-6-2
- EN61000-4-2 (ESD Standards)
Contact: + / - 8KV
Air: + / - 15KV
- EN61000-4-3 (Radiated RFI Standards)
35V/m, 80 to 1000MHz, 1400 to 2000MHz, 2000 to
2700MHz; 80% AM
- EN61000-4-4 (Burst Standards)
Signal Ports: + / - 4KV
A.C. Power Ports: + / - 4KV
- EN61000-4-5 (Surge Standards)
Signal Ports: + / - 2KV; Line-to-Line
A.C. Power Ports: + / - 4KV Line-to-Earth; + / - 2KV
Line-to-Line
D.C. Power Ports: + / - 2KV Line-to-Earth; + / - 1KV
Line-to-Line
- EN61000-4-6 (Induced RFI Standards)
Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
A.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
- EN61000-4-8 (Magnetic Field Standards)
1000A/m @ 50, 60Hz
- IEC 61000-4-10 (Oscillatory wave magnetic field test)
100kHz and 1MHz: 30A/m
- IEC61000-4-16 (Power frequency immunity test) 50Hz: 300V
- IEC61000-4-18 (oscillatory wave immunity test):
100 kHz, 2.5kV CM and 2.5kV DM
1MHz , 2.5kV CM and 2.5kV DM
- IEEE1613:
power frequency withstand voltage: 2KV, Insulation
resistance >550 MOhm
RJ45 Port 500V, Insulation resistance >550 MOhm
Impulse voltage: 5Kv, Insulation resistance >550 MOhm
IEC60870-2-1: AC/DC power supply voltage variations
Environmental Test Compliance IEC60068-2-6 Fc (Vibration Resistance)
2g @ 10 - 150Hz, Amplitude 0.35mm
(Operation/Storage/Transport)
IEC60068-2-27 Ea (Shock)
25g @ 11ms (Half-Sine Shock Pulse; Operation)
50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
FED STD 101C Method 5007.1 (Free fall w/ package)
-Tested with Cross Weight and Drop High standard table
EtherWAN Ethernet Switch EX29000 aanpassen
Rack mount chassis with integrated power supply for four M29000 modules [EX29000-00Z]
