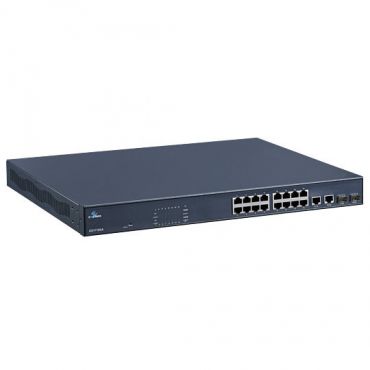

EtherWAN Ethernet Switch EX17162
Web-smart 16-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch
● 24 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port based VLAN, QoS Mode, QoS Priority, MAC/Port based trunking through the Web browser interface
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Internal Universal PSU 100VAC - 240VAC, 50 - 60HZ
● Operating Temperature Range 0°C - 45°C (32°F - 113°F)
EtherWAN's EX17162 provides an 18-port switching platform supporting IEEE802.3af Power over Ethernet, high performance switching with features required for small-business or enterprise environments where sustained connectivity is crucial.
The EX17162 is equipped with 16 10/100BASE-TX PoE ports, in combination with two Gigabit SFP ports. The EX17162 is feature rich with full wire speed throughput, QoS support, making the EX17162 Series a powerful network switch.
The IEEE802.3af PoE ports provide up to 15.4W/port with a total power budget of 260W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption.
Users are able to access management features such as IP configuration, QoS, VLANs, trunking and via web browser interfaces.
| Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3x, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-SX/LX, IEEE802.1p QoS, IEEE802.1x Port Security, IEEE802.3af PoE |
| Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps |
| Packet Buffer Memory | 2.75M bits |
| Processing Type | Store-and-Forward Half-duplex back-pressure and IEEE802.3x full-duplex flow control |
| Address Table Size | 4096 MAC addresses |
| Ethernet Port | 10/100BASE-TX: 16 PoE ports Gigabit: 2 ports |
| LED Indicators | Per Unit: Power Status Per Port: 10/100TX: PoE Act/Status Gigabit: Link/Activity |
| Input | 100 - 240VAC, 50 / 60Hz |
| Power Consumption | Device: Max. 12W (without PoE) PoE power budget: 246.4W Max. |
| PoE Power Output |
IEEE802.3af: up to 15.4W/port, 47 - 55VDC, 350mA Max. |
| Casing | Metal case |
| Dimensions (w x h x d) | 440mm (W) × 330mm (D) × 44mm (H) (17.32" (W) x 12.99" (D) x 1.73" (H)) Standard 19" rack-mount size, one-unit-height |
| Weight | 4.3 kg (9.46lbs.) |
| Installation | Rack Mounting |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 10 to 90% (non-condensing) |
| ISO | Manufactured in an ISO9001 facility |
| Emission Compliance | FCC Part 15, Class A, CE mark Class A |
