Single Board Computers
Het assortiment Single Board Computers omvat compacte formaten, variërend van 3.5" PC/104, EPIC, en EBX tot 5.25" borden. Deze platforms zijn gebouwd in standaard afmetingen en ontworpen voor hoge flexibiliteit, uitgebreide I/O-opties en eenvoudige uitbreidingsmogelijkheden. Ze bieden schaalbare prestaties om te voldoen aan de eisen van uiteenlopende toepassingen, met betrouwbare werking en industriële kwaliteit. De SBC’s leveren laag stroomverbruik en ultra-laag vermogen oplossingen, fanless ontwerpen, compacte en laag-profiel architecturen, en opties voor een uitgebreid temperatuurbereik en lange levensduur.
Laat u persoonlijk adviseren of vraag een offerte aan
Fieldworks Direct B.V. helpt u graag bij het selecteren van de meest geschikte Single Board Computer voor uw specifieke toepassing. Voor persoonlijk advies of om een offerte aan te vragen, kunt u contact met ons opnemen via +31 (0) 73 624 1111 of rechtstreeks via onze website.

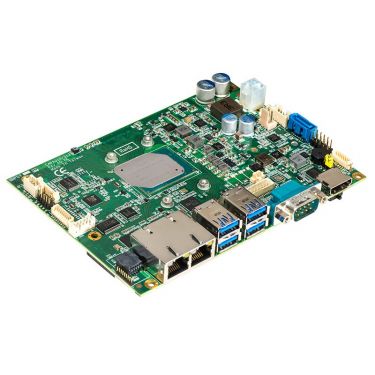

Axiomtek 3.5'' Capa Board CAPA841Intel® Atom™ Processor E3845/E3827 3.5" Embedded SBC with LVDS/VGA/HDMI,Dual LANs and Audio
● Intel® Atom™ processor E3845 (1.91 GHz)/ E3827 (1.75 GHz)
● 1 DDR3L SO-DIMM supports up to 8 GB memory capacity
● 4 USB 2.0 ports
● 4 COM ports
● 2 PCI Express Mini Card
● 2 Gigabit Ethernet (Intel® i210IT)
● Display: LVDS/VGA/HDMI in dual view

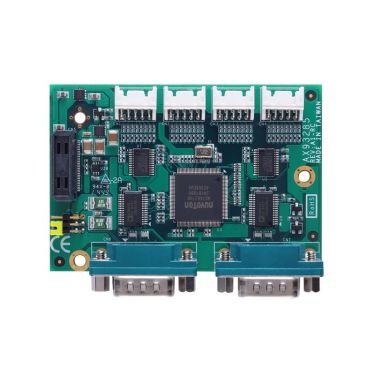

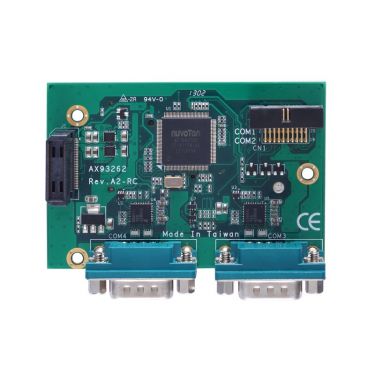

ZIO module with four COM ports and one PCI Express Mini Card● Specification: 2 x RS-232/422/485, 2 x RS-232, 1 x PCI Express Mini Card
● Dimension: 80 x 55 mm
● Accessory: 2 x COM with bracket cable
● Compliant Product:CAPA310, CAPA500, CAPA313, CAPA840, CAPA843, CAPA880
ZIO module with two COM ports and 32 bit programbale DIO● Specification: 2 x RS-232, 32-bit programmable DIO
● Dimension: 80 x 55 mm
● Compliant Product: CAPA310, CAPA500, CAPA313, CAPA840, CAPA843, CAPA880

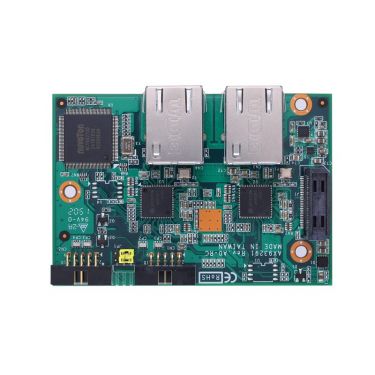

ZIO module with two Gigabit Ethernet and two COM ports● Specification: 2 x Gigabit Ethernet, 2 x RS-232
● Dimension: 80 x 55 mm
● Controller: Intel® i211AT
● Compliant Product: CAPA310, CAPA500, CAPA313, CAPA840, CAPA843, CAPA880

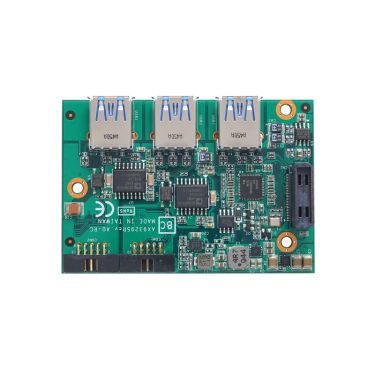

ZIO module with two isolated COM ports and three USB 3.0 ports● Specification: 2 x isolated RS-232, 2 x USB 3.0
● Dimension: 80 x 55 mm
● Compliant Product: CAPA310, CAPA500, CAPA313, CAPA840, CAPA843, CAPA880

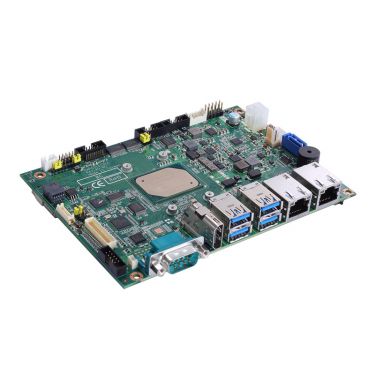

3.5” embedded SBC with Intel® Atom® x5-E3940 processor, HDMI, LVDS, 2 GbE LANs, audio, ZIO and heatsink● Intel® Atom® x5-E3940 processor
● 1 DDR3L SO-DIMM for up to 8GB of memory
● 2 USB 2.0 and 4 USB 3.0
● 1 PCI Express Mini Card slot
● ZIO connector
3.5” embedded SBC with Intel® Atom® x5-E3940 processor (1.6 - 1.8 GHz, 2MB cache, 9.5W), HDMI, LVDS, 2 GbE LAN and audio● Intel® Atom® x5-E3940 processor
● 1 DDR3L SO-DIMM for up to 8GB of memory
● 2 USB 2.0 and 4 USB 3.0
● 2 full-size PCI Express Mini Card slots

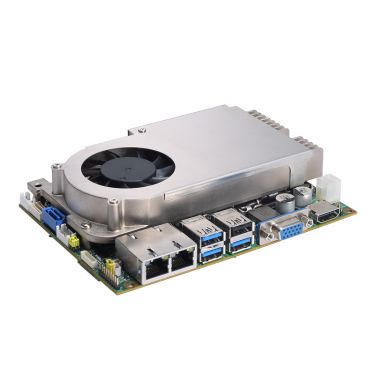

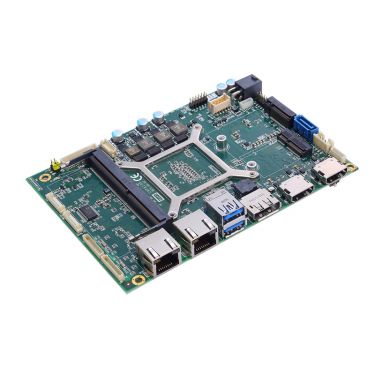

3.5” Embedded SBC with AMD® RYZEN™ Embedded V1807B/V1605B APU, DisplayPort, 2 HDMI, LVDS and 4 GbE LAN● AMD® RYZEN™ Embedded V1807B and V1605B APU
● 1 DDR4 SO-DIMM for up to 16GB of memory
● 4 GbE LAN
● Supports quad-view
● M.2 Key E
● M.2 Key B

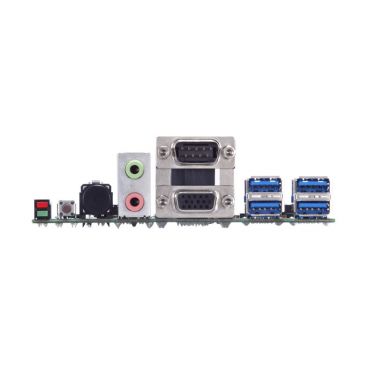

I/O board with two COM, four USB 3.0, VGA and audio for PICO312, PICO313, PICO511, PICO512 - AX93A00● I/O Board for Pico-ITX Boards
● for PICO312, PICO313, PICO511, PICO512

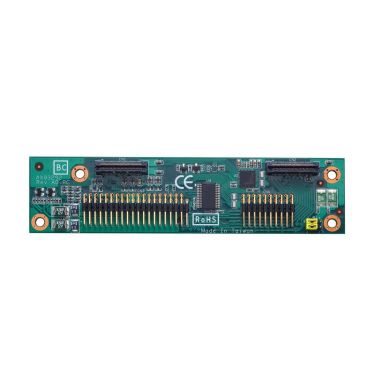

I/O board with two COM, four USB 2.0 and audio for PICO312, PICO313, PICO511, PICO512 - AX93A09● I/O Board for Pico-ITX Boards
● for PICO312, PICO313, PICO511, PICO512

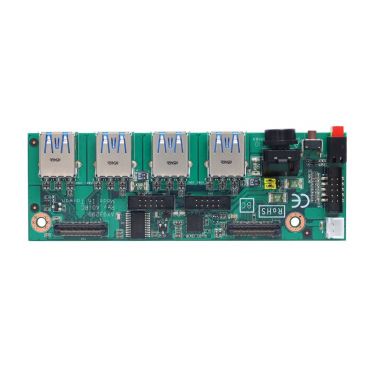

I/O board with two COM, four USB 3.0 and audio for PICO312, PICO313, PICO511, PICO512 - AX93A02● I/O Board for Pico-ITX Boards
● for PICO312, PICO313, PICO511, PICO512

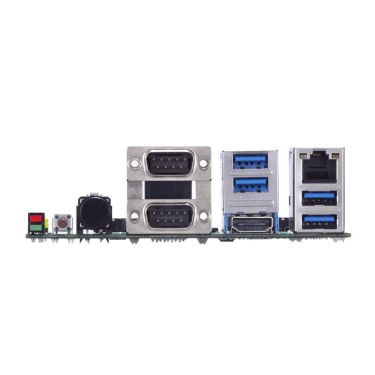

I/O board with two COM, four USB 3.0, one Gigabit LAN, HDMI and audio for PICO312, PICO313, PICO511, PICO512 - AX93A01● I/O Board for Pico-ITX Boards
● for PICO312, PICO313, PICO511, PICO512

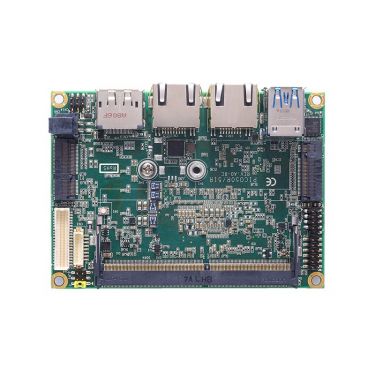

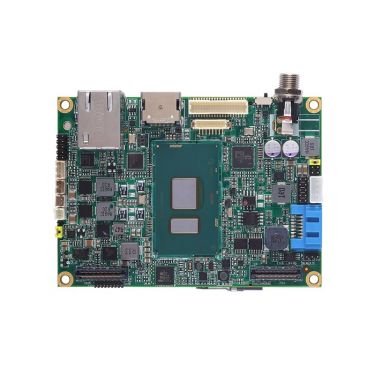

Axiomtek Embedded ITX PICO board - PICO51R● 7th generation Intel® Core™ i7/i5/i3 and Celeron® processor
● 1 DDR4 SO-DIMM for up to 16GB of memory
● 2 GbE LAN
● M.2 Key E
● M.2 Key B
● Intel® AMT 11 supported

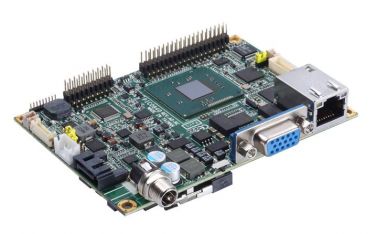

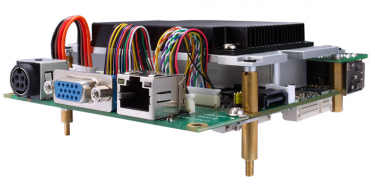

Axiomtek PICO840Intel® Atom™ Processor E3845/E3827 Pico-ITX SBC with LVDS/ VGA (HDMI), LAN and Audio
● Intel® Atom™ processor E3845 (1.91GHz)/E3827 (1.75GHz)(Bay Trail)
● 1 DDR3L SO-DIMM supports up to 8GB memory capacity
● 4 USB 2.0 ports
● 2 COM ports (RS-232/422/485 selectable)
● PCI Express Mini Card w/mSATA supported
Axiomtek PICO841Intel® Atom™ Processor E3845/E3827 Pico-ITX SBC with LVDS/ VGA, LAN and Audio
● Intel® Atom™ processor E3845 (1.91GHz)/E3827 (1.75GHz)(Bay Trail)
● 1 DDR3L SO-DIMM supports up to 8GB memory capacity
● 4 USB 2.0 ports
● 2 COM ports (RS-232/422/485 selectable)
● PCI Express Mini Card w/mSATA supported

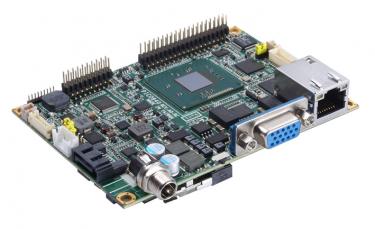

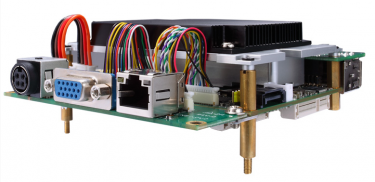

Axiomtek PICO842Intel® Celeron® Processor J1900/N2807 Pico-ITX SBC with LVDS/VGA (HDMI), LAN & Audio
● Intel® Celeron® processor J1900 (up to 2.42 GHz) /N2807 (up to 2.16 GHz) (Bay Trail)
● 1 DDR3L SO-DIMM supports up to 8GB memory capacity
● 4 USB 2.0 ports
● 2 COM ports (RS-232/422/485 selectable)
● PCI Express Mini Card w/mSATA supported
Axiomtek NANO842Intel® Celeron® Processor J1900/N2807 Nano-ITX SBC with LVDS/VGA/HDMI, Dual LANs and Audio
● Intel® Celeron® Processor J1900 (2.0 GHz)/ N2807 (1.58 GHz)
● 1 DDR3L SO-DIMM supports up to 8 GB memory capacity
● 5 USB 2.0 ports and 1 USB3.0 port
● 2 COM ports
● 2 PCI Express Mini Cards
Axiomtek NANO840Intel® Atom™ Processor E3845/E3827 Nano-ITX SBC with LVDS/ VGA/HDMI, Dual LANs and Audio
● Intel® Atom™ processor E3845 (1.91GHz)/E3827 (1.75GHz)
● 1 DDR3L SO-DIMM supports up to 8 GB memory capacity
● 5 USB 2.0 ports and 1 USB3.0 port
● 2 COM ports
● 2 PCI Express Mini Cards

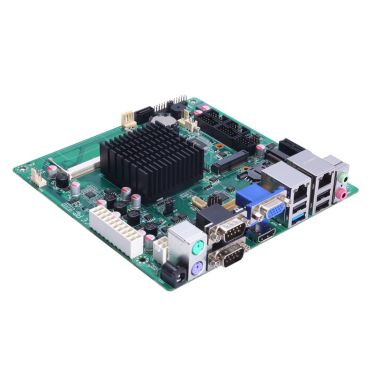

Axiomtek Mini-ITX MANO842Intel® Celeron® Processor J1900 (up to 2.42 GHz) SoC Mini-ITX SBC with VGA/HDMI/LVDS, USB 3.0, PCI Express Mini Card, PCIe x1, and HD Audio
● Intel® Bay Trail-D 2.0GHz SoC
● 1 DDR3L-1333 MHz max up to 8 GB
● PCIe x1 supported
● 1 USB 3.0 and 5 USB 2.0 ports
● 1 SATA-300 interface
● mSATA supported
● 6 COM ports
● ATX or 12VDC supported
● Dual view display

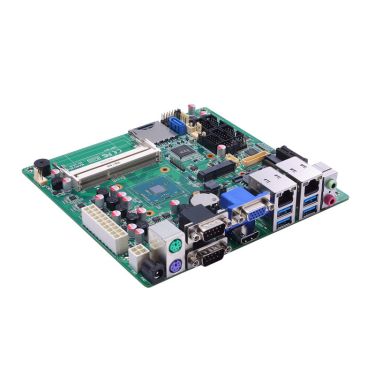

Axiomtek Mini-ITX MANO300Intel® Celeron® Processor N3150 SoC Mini-ITX SBC with VGA/HDMI/ LVDS, USB 3.0, PCI Express Mini Card, mSATA, PCIe x1, and HD Audio
● Intel® Celeron® N3150 1.6 GHz Braswell SoC processor
● 2 DDR3L-1333 MHz max. up to 8 GB
● PCIe x1 supported
● 4 USB 3.0 and 2 USB 2.0 supported
● 1 SATA-600 and 1 mSATA supported
● 1 SDXC supported
● 6 COM ports supported
● 12VDC and STD ATX supported
● Triple view display (VGA/HDMI/LVDS)
