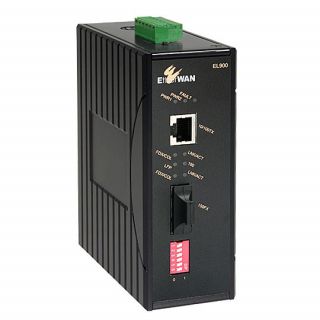

EtherWAN Media Converter EL900
Hardened 10/100BASE-TX to 100BASE-FX Media Converter
● Complies with NEMA TS1 & TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● ISA 12.12.01 (UL1604) Class I, Division 2 Classified for use in hazardous locations (Applicable to versions with DC Terminal Block power option)
● DIP switch configuration for "Link-Fault-Pass-Through," link down alarm, speed, duplex mode
● 128K bits buffer memory
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● Alarms for power and port link failure by relay output
● -40°C to 75°C (-40°F to 167°F) operating temperature range
● Hardened aluminum case
● Supports DIN-Rail, Panel or Rack Mounting installation
The EL1141 Series provides media conversion between 10/100BASE-T and 100BASE-SX-LX Fiber. Built specifically for mission-critical applications in harsh environments, the EL1141's ardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The EL1141 passes IEC61850-3/IEEE1613 certifications and is suitable for power substation applications.
With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options the EL1141 is the ideal media converter for harsh environments.
EtherWAN – “When Connectivity is Crucial”.
Standards | IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/100Base-FX, IEEE802.3x |
Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps |
Packet Buffer Memory | 128K bits |
Processing Type | Store-and-forward Half-duplex back-pressure and IEEE802.3x full-duplex flow control |
Ethernet Port | 10/100Base-TX: 1 port 100Base-FX: 1 port |
LED Indicators | Per Unit: Power Status (Power 1, Power 2, Fault), Link-Fault-Pass-Through Per Port: 10/100TX: Link/Activity, Full-duplex/Collision, Speed100FX: Link/Activity, Full-duplex/Collision |
Relay Contact | Relay contact rating with current 1A @ 30VDC, 0.5A @ 120VAC |
Input Power | Input Voltage: 10 to 48VDC (DC Terminal Block) or 12VDC (DC Jack) or 24VAC, 0.185A (AC Terminal Block) |
Power Consumption | 4.32W MAX. 0.36A @ 12VDC, 0.09A @ 48VDC |
Overload Current Protection | Present |
Reverse Polarity Protection | Present |
Case | Aluminum case IP30 |
Dimensions (w x h x d) | 50mm (W) x 110mm (D) x 135mm (H) (1.97" (W) x 4.33" (D) x 5.31" (H)) |
Weight | 0.8Kg (1.76lbs.) |
Installation | DIN-Rail (Top hat type 35mm), Panel, Rack Mounting |
Operating Temperature | -40°C to 75°C (-40°F to 167°F) Tested @ -40°C to 85°C (-40°F to 185°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Humidity | 5% ~ 95% (non-condensing) |
ISO | Manufactured in an ISO9001 facility |
Safety | Hazardous locations: Class 1, Division 2 group A,B,C&D UL60950-1, EN60950-1, IEC60950-1 |
EMI | FCC Part 15, Class A EN61000-6-3 - EN55022 - EN61000-3-2 - EN61000-3-3 |
EMS | EN61000-6-2 - EN61000-4-2 (ESD Standards) Contact: + / - 4KV Air: + / - 8KV - EN61000-4-3 (Radiated RFI Standards) 10V/m, 80 to 1000MHz; 80% AM - EN61000-4-4 (Burst Standards) Signal Ports: + / - 4KV D.C. Power Ports: + / - 4KV - EN61000-4-5 (Surge Standards) Signal Ports: + / - 1KV; Line-to-Line D.C. Power Ports: + / - 0.5KV; Line-to-earth - EN61000-4-6 (Induced RFI Standards) Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM - EN61000-4-8 (Magnetic Field Standards) 30A/m @ 50, 60Hz |
Environmental Test Compliance | IEC60068-2-6 Fc (Vibration Resistance) 5g @ 10 - 150Hz, Amplitude 0.35mm (Operation/Storage/Transport) IEC60068-2-27 Ea (Shock) 25g @ 11ms (Half-Sine Shock Pulse; Operation) 50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport) FED STD 101C Method 5007.1 (Free fall w/ package) -Tested with Cross Weight and Drop High standard table NEMA TS1/2 Environmental requirements for traffic control equipment |
