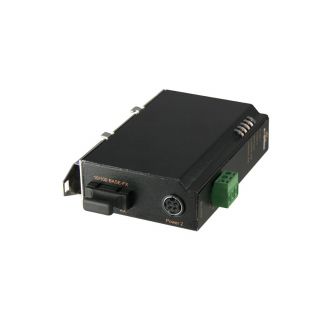

EtherWAN Media Converter EL1032T
Industrial 10/100BASE-TX to 100BASE-FX Media Converter with PoE/PSE
● Supports PoE 30W high power and 15.4W IEEE802.3af PoE/PSE standard
● DIP switch configuration for "Link-Fault-Pass Through" speed, duplex mode
● 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX
● Supports full wire-speed forwarding rate
● Offers 228K bits buffer memory
● Industrial operating temperature -10°C to 60°C (14°F to 140°F)
● Aluminum case
● Supports DIN-Rail, Panel or Wall Mounting installation
The EL1032T Series provides media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be active or disabled.
EL1032T supports IEEE802.3at PoE/PSE standard and can transmit power and data over one RJ45 cable. The EL1032T’s industrial design features high shock/vibration resistance, electrical noise immunity and a wide operating temperature range from -10°C to 60°C. EL1032T is the ideal media converter for industrial environments.
EtherWAN – “When Connectivity is Crucial”.
| Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX |
| Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps |
| Packet Buffer Memory | 228K bits |
| Processing Type | Store-and-forward Half-duplex back-pressure and IEEE802.3x full-duplex flow control |
| Ethernet Port | 10/100Base-TX: 1 port 100Base-FX: 1 port |
| LED Indicators | Per Unit: Power Status (Power) Per Port: 10/100TX: Link/Activity, Full-duplex/Collision,100FX: Link/Activity PoE: PD connect/PD disconnect |
| Input Power | EL1032 Input Voltage: 48VDC EL1032P Input Voltage: 48 to 52 VDC supports up to 15.4 Watts 52 to 57 VDC supports up to 30 Watts |
| Power Consumption | 3.6W Max. 0.075A @ 48VDC EL1032: 19.2W Max. 0.4A @ 48VDC when PoE link with 15.4W IEEE802.3af PD EL1032P: 19.2W Max. 0.4A @ 48VDC when PoE link with 15.4W IEEE802.3af PD34.1W Max. 0.62A @ 55VDC when PoE link with 30Watts high power PD high power PoE |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Case | Aluminum case |
| Dimensions (w x h x d) | 70mm (W) x 110mm (D) x 30mm (H) (2.76" (W) x 4.33" (D) x 1.18" (H)) |
| Weight | 0.25Kg (0.55lb.) |
| Installation | DIN-Rail (Top hat type 35mm), Panel, Wall Mounting |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) Test @ -20°C to 70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% ~ 95% (non-condensing) |
| ISO | Manufactured in an ISO9001 facility |
| Safety | UL508 |
| EMI | FCC Part 15, Class A EN61000-6-4 * EN55022 * EN61000-3-2 * EN61000-3-3 |
| EMS | EN61000-6-2 - EN61000-4-2 (ESD Standards) Contact: + / - 4KV Air: + / - 8KV - EN61000-4-3 (Radiated RFI Standards) 10V/m, 80 to 1000MHz; 80% AM - EN61000-4-4 (Burst Standards) Signal Ports: + / - 4KV D.C. Power Ports: + / - 4KV - EN61000-4-5 (Surge Standards) Signal Ports: + / - 1KV; Line-to-Line D.C. Power Ports: + / - 0.5KV; Line-to-earth - EN61000-4-6 (Induced RFI Standards) Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM - EN61000-4-8 (Magnetic Field Standards) 30A/m @ 50, 60Hz |
| Environmental Test Compliance | IEC60068-2-6 Fc (Vibration Resistance) 5g @ 10 - 150Hz, Amplitude 0.35mm (Operation/Storage/Transport) IEC60068-2-27 Ea (Shock) 25g @ 11ms (Half-Sine Shock Pulse; Operation) 50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport) FED STD 101C Method 5007.1 (Free fall w/ package) -Tested with Cross Weight and Drop High standard table |
