EtherWAN Ethernet Switch EX78602
Hardened Managed 6-port 10/100BASE (4 x PoE + 2 x 60W PoE) and 2-port Gigabit Ethernet Switch
● Ultra High-Power PoE Switch 60W PoE
● Intelligent Management
● Remote Secure Access

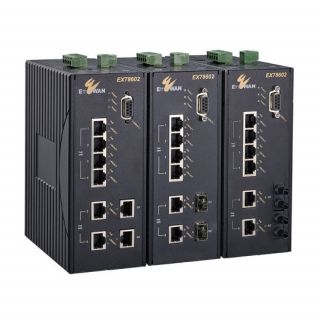

EtherWAN's EX78602 Series provides a hardened 8-port switching platform with 60W and IEEE802.3at/af Power over Ethernet combining high performance switching with robust management features required for mission-critical and harsh environments where sustained connectivity is crucial.
The EX78602 Series is equipped with 6 10/100BASE-TX PoE (4 x PoE 30W + 2 x 60W ports), in combination with two Gigabit SX/LX/BX/ WDM Fiber ports with SFP options.
The Ultra PoE ports provide up to 60W/port with a total power budget of 180W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements such as outdoor PTZ dome cameras, wireless access points, and way-side communication devices.
Din Rail mountable, the EX78602 Series is equipped with EtherWAN's Alpha-Ring self-healing ring technology providing less than 15ms fault recovery time. Users are able to access management features such as port security, IGMP snooping, port-based VLAN, GARP protocols, link aggregation , via web browser, telnet, SSH, SNMP, RMON, TFTP, and RS-232 console interfaces. With the hardened specifications, the EX78602 Series is designed to operate at -40°C to 75°C in harsh environments, where high ESD, shock, and vibrationmay be present.
EtherWAN — "When Connectivity is Crucial."
| Standards | • IEEE802.3 10BASE-T • IEEE802.3u 100BASE-TX/100BASE-FX • IEEE802.3ab 1000BASE-T • IEEE802.3z 1000BASE-SX/1000BASE-LX • IEEE802.3x Full duplex and flow control • IEEE802.1p QoS • IEEE802.1Q Tag VLANs • IEEE802.1w RSTP • IEEE802.1x Port-based Network Access Control • IEEE802.3af/at Power over Ethernet |
| Forward and Filtering Rate | • 14,880pps for 10Mbps • 148,810pps for 100Mbps • 1,488,100pps for 1000Mbps |
| Packet Buffer Memory | 2M bits |
| Processing Type | • Store-and-Forward • Auto Negotiation • Half-duplex back-pressure and IEEE802.3x full-duplex flow control • Auto MDI/MDIX |
| Address Table Size | 8192 MAC addresses |
| Input | • Redundant power inputs: Terminal block: 55 (52 - 57) VDC DC Jack: 55 (52 - 57) VDC |
| Power Consumption | • Device: Max. 15W without PoE • Total PoE power budget: 180W Max. depending on power input |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Ethernet Port | • 10/100BASE-TX (PoE): 6 ports Port 1 to port 4: Up to 30W/ea Port 5 to port 6: Up to 60W/ea • Gigabit: 2 ports |
| Console Port | Port: One DB9 RS-232 port |
| LED Indicators | • Per Unit: Power 1 (Green) Power 2 (Green) Power 3 (Green) • Per Port: Link/Activity (Green) • Per PoE Port: PoE Status (Orange) |
| Case | • Aluminum Case • IP30 |
| Dimensions (w x h x d) | • 71.4mm (W) x 140mm (D) x 170mm (H) |
| Installation | • DIN-Rail (Top hat type35mm), Rack, or Wall mounting |
| Weight | 1.7Kg |
| Operating Temperature | -40 °C ~ +75 °C Tested @ -40 °C ~ +85 °C |
| Storage Temperature | -45 °C ~ +85 °C |
| Humidity | 5% to 95% (non-condensing) |
| ISO | • Manufactured in an ISO9001 facility |
| EMI | FCC Part 15, Class A EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 |
| EMS | EN61000-6-2 • EN61000-4-2 (ESD Standards) • EN61000-4-3 (Radiated RFI Standards) • EN61000-4-4 (Burst Standards) • EN61000-4-5 (Surge Standards) • EN61000-4-6 (Induced RFI Standards) • EN61000-4-8 (Magnetic Field Standards) |
| Environmental Test Compliance | IEC60068-2-6 Fc (Vibration) IEC60068-2-27 Ea (Shock) IEC60068-2-32 Ed (Free fall) |
