ICPDAS DB-24C/D
Levertijd:
2~7 dagen
SKU
DB-24C/D

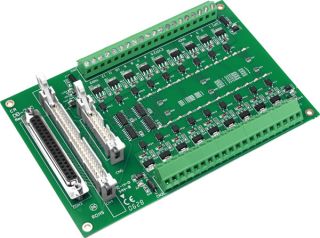

24-channel Open-Collector Output Board
● 24 open-collector output (NPN)
● One OPTO-22 Compatible Connector and one 37 pin D-sub connector and one 20-pin connector
● Connects directly to OPTO-22 compatible board or any 722,724 series board
● 24 channel max. load 600mA (per channel)
● Max. load voltage: 30V DC
● LED’s indicated output status
● Screw terminals for easy field wiring
The DB-24C has 24 channels of optically isolated digital outputs, arranged into four isolated banks.
APPLICATIONS:
● On/Off Control
● Energy Management
● Test Automation
● Process Control
Meer informatie
Art.nr.
DB-24C/D
Fabrikant
ICPDAS
Special
| Type | Form C |
| Nominal Load | 0.5 A/120 V AC , 1 A /24 V DC |
| Max. Switching Power | 60 VA, 24 W |
| Max. Switching Voltage | 120V AC , 60V DC |
| Max. Switching Current | 1 A |
| Life Expectancy | Electrical (20 Millions Times) |
| Time Value | Operate: 6 ms |
| Release | 3 ms |
| Control Logic | Input TTL high (+5 V), relay on |
| Power Consumption | 12 V /0.53 A ; 5 V /0.2 A |
| Dimensions (l x w) | 205 x 114mm |
| Operating Temperature | 0 °C ~ 60 °C |
| Storage Temperature | -20 °C ~ 70 °C |
| Humidity | 5% ~ 90% RH, Non condensing |
