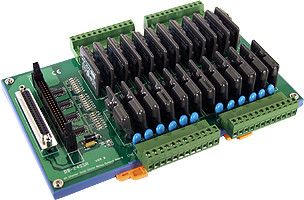

24-channel Solid State Relay Output Board


● 24 optically isolated digital output channels
● 24 form A solid-state relays
● Switch up to 4 A at 250 VAC/50 VDC
● One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
● Connects directly to OPTO-22 compatible board or any 722, 724 series board
● LED’s indicated relay status
● Screw terminals for easy field wiring



The DB-24SSR includes 24 normally open, or form A, solid-state relays The board interface to filed logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages.

The user can use the DB-24SSR to switch high voltage load, up to 240 VAC/50 VDC and up to 4 A. The relay is energized by applying a 5-voltage signal to the appropriate relay channel on the 50-pin header or 37-pin D-sub connector. Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated. Because there is a D-sub 37-pin connector on the board, the user may use it to interface to any TTL output board. In other words, the user may use it as a general purpose solid state relay output board.


APPLICATIONS:

● On/Off Control
● Energy Management
● Test Automation
● Process Control

Meer informatie
Art.nr.
DB-24SSR
Fabrikant
ICPDAS
Special
Solid State Relay AC
Load Voltage 50 ~ 250 VAC
Max. Load Current 4 A
Repetitive Peak OFF Voltage 600 V
Max. “ON-state “ Voltage Drop 1.5 V
Surge Current 50 A
Maxi. “OFF-State” Leakage Current 5 mA
Min. Load Current 20 mA
Breakdown Voltage 2.500 V (Between Input & Output)
Insulation Resistance 100.000.000 Ω (min.)
Operate Time, ½ Cycle of Voltage Sine Wave 1 ms (max.)
Zero Crossing Yes
Snubber Circuit Yes
Power Consumption 0.4 A @ +5 V (max.)
Operating Temperature 0 °C ~ 60 °C
Storage Temperature -20 °C ~ 70 °C
Humidity 5% ~ 90% RH, non-condensing
Dimensions (l x w) 130 x 220mm
