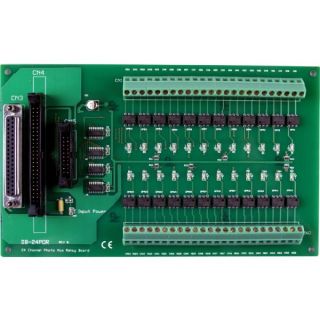

ICPDAS DB-24POR/D
Levertijd:
2~7 dagen
SKU
DB-24POR/D
24-channel Photo-Mos Relay Output Board
● 24 Photo Mos Relay
● One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
● Connects directly to OPTO-22 compatible board or any 722, 724 series board
● LED’s indicated relay status
● Screw terminals for easy field wiring
● 5.000 VDC optical isolation
The DB-24POR/D has 24 channels of optically isolated Photo-Mos Relay , and OPTO-22 compatible connector.
APPLICATIONS:
● On/Off Control
● Energy Management
● Test Automation
● Process Control
Meer informatie
Art.nr.
DB-24POR/D
Fabrikant
ICPDAS
Special
| Relay | Photomos |
| Turn-on Time | 0.7ms (typical) |
| Turn-off Time | 0.05ms (typical) |
| Output On Resistance | 23 Ω (typical) |
| Load Voltage | 350V (peak AC) |
| Power Dissipation | 500mW |
| Countinuous Load Current | 0.13A |
| Power Consumption | +5V @ 0.3A max |
| Dimensions (l x w) | 213 x 132mm |
| Operating Temperature | 0 °C -60 °C |
| Storage Temperature | -20 °C~70 °C |
| Humidity | 5% to 90 % noncondensing |
