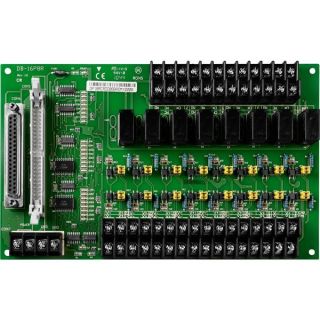

ICPDAS DB-16P8R

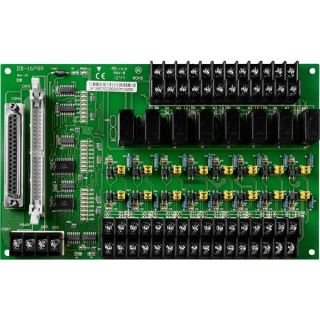

16-channel Isolated Input & 8-channel relay output Board
● 16 Optically isolated digital input channels
● 8 Relay output channels
● Connects directly to DIO24,DIO48,DIO144, PIO-D144 ,PIO-D96 , PIO-D48 OPTO-22 compatible digital input card or any 722,724 OPTO-22 compatible digital input board
● Isolation digital input
● Dry contact or wet contact by jumper select Input range: High 5~24V DC / Low 0~1.8 VDC
● Input resistor: 1.2K Ohm/ 1W Input buffer with voltage comparators
● Relay output 8-Channel Relay Output Max. Load 30V DC/220 VAC @5A
The DB-16P8R is a 16 channel isolated digital input & 8 channel relay output daughter board for DIO24, DIO48, DIO144, PCI-PIO144, PCI-PIO96 & PCI-PIO48 OPTO-22 Compatible digital I/O board or any 722, 724, digital input board.
APPLICATIONS:
● Isolated digital input sensing
● Testing Automation
| Type | Form C |
| Nominal Load | 0.5 A/120 V AC , 1 A /24 V DC |
| Max. Switching Power | 60 VA, 24 W |
| Max. Switching Voltage | 120V AC , 60V DC |
| Max. Switching Current | 1 A |
| Life Expectancy | Electrical (20 Millions Times) |
| Time Value | Operate: 6 ms |
| Release | 3 ms |
| Control Logic | Input TTL high (+5 V), relay on |
| Power Consumption | 12 V /0.53 A ; 5 V /0.2 A |
| Dimensions (l x w) | 205 x 114mm |
| Operating Temperature | 0 °C ~ 60 °C |
| Storage Temperature | -20 °C ~ 70 °C |
| Humidity | 5% ~ 90% RH, Non condensing |
