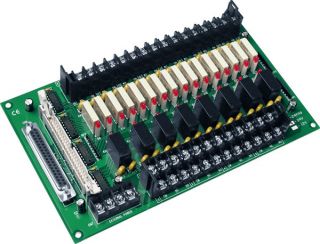

ICPDAS DB-24PRD

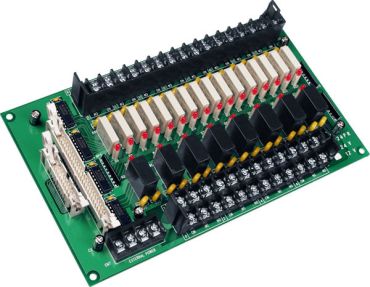

24-channel Power Relay Output Board
● 8 Form C Relays (SPDT) and 16 FORM A Relay
● Accept 20-pin connector to control 8 Form and 8 Form A relays
● Switch up to 5A at 250 VAC / 5A at 30VDC
● LEDs indicated relay status
● Designed varistor to protect each channel’s high voltage spike
● Screw terminals for easy field wiring
● 50-Pin header Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722, 724 series board
● 20-Pin header connects directly to A-82X, A-626, A-628, DIO-64
The DB-24PRD 24-Channel power relay output board consists of 8 form C and 16 form A electromechanical relays for efficient switching of load by programmed control . The contact of each relay can control a 5 A load at 250V AC / 30V DC.
The relay is energized by applying a 5 voltage signal to the appropriate relay channel on the 50-pin OPTO-22 compatible connector or 20-pin flat cable connector . Twenty-four enunciator LEDs, 37-pin D-Sub one for each relay, light when their associated relay is activated . To avoid overloading your PC’s power supply, this board needs a +12V DC or +24V DC external power supply.
APPLICATIONS:
● On/Off Control
● Energy Management
● Test Automation
● Process Control
