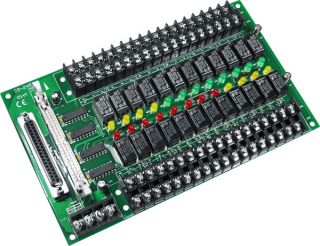

ICPDAS DB-24RD
24-channel Relay Output Board
● 24 Form C Relays (SPDT)
● SPST: Single Pole Double Throe
● OPTO-22 Compatible Connector
● Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722, 724 series board
● Switch up to 0.5A at 120V AC
● Switch up to 1A at 24V DC
● On board relay driver circuits
● LED’s indicated relay status
● Screw terminals for easy field wiring
The DB-24R consists of 24 form C, electromechanical relays for efficient switching of load by programmed control . The contact of each relay can control a 0.5 A /110 V load or 1A / 24V DC . The relay is energized by applying a 5 voltage signal to the appropriate relay channel on the 50-pin Opto-22 compatible connector or D-Sub 37 connector .
Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated . To avoid overloading your PC’s power supply, this board needs a +12V DC or +24V DC external power supply.
APPLICATIONS:
● On/Off Control
● Energy Management
● Test Automation
● Process Control
| Relay | Form C | ||
| Type | 1 form C | ||
| Nominal Load | 0.5 A /120 VAC , 1A /24 VDC | ||
| Max. Switching Power | 60VA, 24W | ||
| Max. Switching Voltage | 120V AC, 60V DC | ||
| Max. Switching Current | 1A | ||
| Life Expectancy | Mechanical (2 x 107); Electrical (2 x 10 5) | ||
| Release Time Value | Operate (6 ms) | ||
| Control Logic | Input TTL high (+5V) , relay on | ||
| Power Consumption |
|
||
| Dimensions (l x w) | 220 x 132mm | ||
| Operating Temperature | 0 °C ~ 60 °C | ||
| Storage Temperature | -20 °C ~70 °C | ||
| Humidity | 5% to 90 % noncondensing |
