ICPDAS DB-24R

Levertijd:
2~7 dagen
SKU
DB-24R

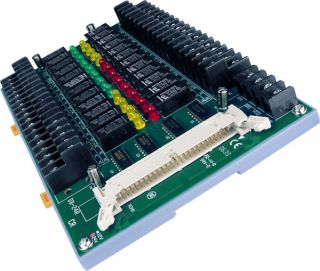

24-channel Relay Output Board


● 24 Form C Relays (SPDT)
● SPST: Single Pole Double Throe
● OPTO-22 Compatible Connector
● Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722, 724 series board
● Switch up to 0.5A at 120V AC
● Switch up to 1A at 24V DC
● On board relay driver circuits
● LED’s indicated relay status
● Screw terminals for easy field wiring



The DB-24R consists of 24 form C, electromechanical relays for efficient switching of load by programmed control . The contact of each relay can control a 0.5 A /110 V load or 1A / 24V DC . The relay is energized by applying a 5 voltage signal to the appropriate relay channel on the 50-pin Opto-22 compatible connector or D-Sub 37 connector .

Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated . To avoid overloading your PC’s power supply, this board needs a +12V DC or +24V DC external power supply.


APPLICATIONS:

● On/Off Control
● Energy Management
● Test Automation
● Process Control

Meer informatie
Art.nr.
DB-24R
Fabrikant
ICPDAS
Special
Relay Form C
Type 1 form C
Nominal Load 0.5 A /120 VAC , 1A /24 VDC
Max. Switching Power 60VA, 24W
Max. Switching Voltage 120V AC, 60V DC
Max. Switching Current 1A
Life Expectancy Mechanical (2 x 107); Electrical (2 x 10 5)
Release Time Value Operate (6 ms)
Control Logic Input TTL high (+5V) , relay on
Power Consumption
+12V @0.3A max.
+5V @0.18A max.
Dimensions (l x w) 220 x 132mm
Operating Temperature 0 °C ~ 60 °C
Storage Temperature -20 °C ~70 °C
Humidity 5% to 90 % noncondensing
