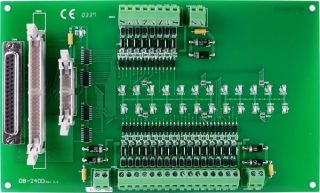

ICPDAS DB-24OD

Levertijd:
2~7 dagen
SKU
DB-24OD

24-channel Open-Drain Output Board


● 24 Open-Drain output
● One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
● Connects directly to OPTO-22 compatible board or any 722, 724 series board
● Each channel max. load 400mA
● LED’s indicated relay status
● Max. load voltage: 35V DC
● Screw terminals for easy field wiring



The DB-24OD has 24-channel of optically isolated digital output, arranged into four isolated banks.


APPLICATIONS:

● On/Off Control
● Energy Management
● Test Automation
● Process Control

Meer informatie
Art.nr.
DB-24OD
Fabrikant
ICPDAS
Special
Open-Drain Each Channel 400mA (max. load current)
Power Consumption +5V @0.4A max.
Dimensions (w x l) 223.5 x 135.5mm
Operating Temperature 0 °C ~ 60 °C
Storage Temperature -20 °C ~ 70 °C
Humidity 5% to 90 % non-condensing
ICPDAS DB-24OD aanpassen
Aantal

* Verplichte velden

Uw configuratie
24-channel Open-Drain Output Board
ICPDAS DB-24OD
Overzicht
    Mijn vraag gaat over: ICPDAS DB-24OD

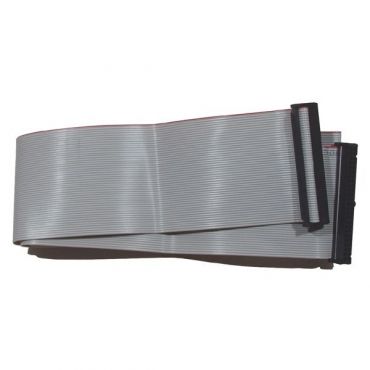

    Gerelateerde producten
