ICPDAS DB-12SSR

Levertijd:
2~7 dagen
SKU
DB-12SSR

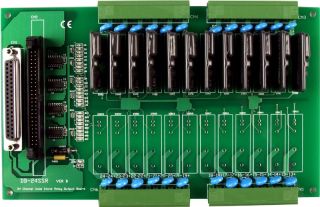

12-channel Solid State Relay Output Board


● 12 SSR (AC)
● One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
● Connects directly to OPTO-22 compatible board or any 722, 724 series board
● 8-channel max. load 4A/250V AC (per channel)
● LED’s indicated relay status
● Screw terminals for easy field wiring



The DB-12SSR has 12channels of optically isolated SSR (Solid State Relay) , and OPTO-22 compatible connector.


APPLICATIONS:

● On/Off Control
● Energy Management
● Test Automation
● Process Control

Meer informatie
Art.nr.
DB-12SSR
Fabrikant
ICPDAS
Special
Solid State Relay AC
Load Voltage 50 ~ 250 VAC
Repetitive Peake OFF Voltage 600V
Surge Current 50 A
Max. Load Current 4 A
Max. "Off-state" Leakage Current 50mA
Operate Time 1 ms (½ cycle of voltage sine wave)
Power Consumption +5V @0.4A max .
Dimensions (l x w) 223.5 x 135.5mm
Operating Temperature 0 °C ~ 60 °C
Storage Temperature -20 °C ~ 70 °C
Humidity 5% to 90 % non-condensing
