ICPDAS M-7065D
Levertijd:
2~7 dagen
SKU
M-7065D

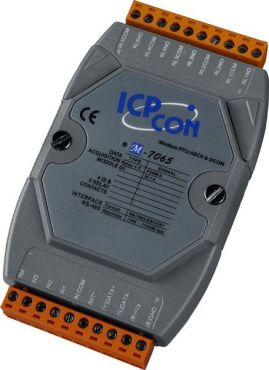

4-channel Isolated Digital Input and 5-channel Relay Output Module with 16-bit Counters and LED Display (Gray Cover)
● Input: 4 single-ended
ON: Voltage Level: 4 V ~ 30 V
OFF Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Output: 5 Form A power relay
● Contact rating:
5 A@250 VAC / 5 A@30 VDC
The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU and DCON protocols. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/HMI software and PLC. It has the same form factor as the I-7000 series.
ICPDAS Power Relay Module M-7065D is a data acquisition and control module with digital input/output. The module can be remotely controlled using a set of commands, which we call the DCON protocol. Communication between the module and the host is in ASCII format via an RS-485 bi-directional serial bus standard. Baud Rates are software programmable and transmission speeds of up to 115.2K baud can be selected.
The functionality of the M-7000 series is the same as the I-7000 series, except M-7000 series offers extended support for the Modbus RTU protocol.
Meer informatie
Art.nr.
M-7065D
Fabrikant
ICPDAS
Digital Input
| Channels | 4 | ||||
| Input Type | Sink, Source, isolated channels with common ground or power | ||||
| On Voltage Level | +4 ~to +30 V | ||||
| Off Voltage Level | +1 V max. | ||||
| Input Impedance | 3 kΩ, 0.5 W | ||||
| Counters |
|
||||
| Photo-Isolation | 3750 Vrms |
Relay Output
| Channels | 5 | ||
| Relay Type | Form "A” relay SPST (N.O.) | ||
| Contact Rating |
|
||
| Operating Time (Max.) | 6 ms | ||
| Release Time (Min.) | 3 ms | ||
| Surge Strength | 4,000 VAC | ||
| Insulation Resistance | 1000 MΩ min. at 500 VDC | ||
| Life Time |
|
Interface
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200 bps |
LED Indicators
| 1 LED as Power/Communication indicator |
| 4 LEDs as Digital Input indicators and 5 LEDs as Relay Output indicators |
Protocol
| Support Modbus and DCON Protocol | Yes |
Power
| Input Voltage Range | 10 ~ 30 VDC |
| Power Consumption | 1.3 W (max.) |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 5 ~ 95%, non-condensing |
