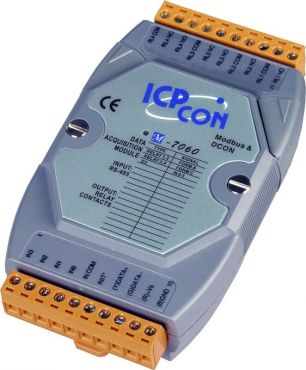

ICPDAS M-7060D

Levertijd:
2~7 dagen
SKU
M-7060D

4-channel Isolated Digital Input and 4-channel Relay Output Module with 16-bit Counters and LED Display (Gray Cover)

● Input: 4 single-ended
   ON Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 ~ 1 V
● Isolation voltage: 3750 Vrms
● Input resistance: 3 kΩ, 0.25 W
● Output: 4-channel relay

The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU and DCON protocols. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/HMI software and PLC. It has the same form factor as the I-7000 series.

Meer informatie
Art.nr.
M-7060D
Fabrikant
ICPDAS
Digital Input
Channels 4
Input Type Sink or Source
On Voltage Level +4 V ~ +30 V
Off Voltage Level +1 V max.
Input Impedance 3 kΩ , 0.5 W
Counters
Channels: 4
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Optical Isolation 3750 Vrms
Digital Output
Channels 4
Relay Type Form A x2, Form C x2
Contact Rating
AC: 125 V @0.6 A; 250 V @0.3 A
DC: 30 V @2 A; 110 V @0.6 A
Operating Time (typical) 3 ms
Release Time (typical) 2 ms
Total Switching Time 10 ms
Surge Strength 500 VAC (50/60 Hz)
Insulation resistance 1000 MW min. at 500 VDC
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
1 LED as Power/ Communication indicator
4 LEDs as Digital Input indicators and 4LEDs as Relay Output indicators
Protocol
Support Modbus and DCON Protocol Yes
Power
Input Voltage Range 10 ~ 30 VDC
Power Consumption 1.9 W
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95%, non-condensing
