The ICP DAS Managed Switch provides a cost-effective managed Ethernet solution for industrial control and automation. It provides lots of powerful managed functions, such as 802.1Q Tag-based VLAN, Port-based VLAN, 802.1p QoS (Quality of Service), Port Trunking, Spanning Tree, Cable Testing and Port Mirroring. These managed functions can be configured through RS-232 port via serial console or Ethernet port using telnet or Web browser. In addition, the built-in Cyber-Ring technology offers real-time fault-tolerant ring topology to increase the reliability and performance of network. This is an ideal Managed Switch for industrial environments.
1-20 van 23
Pagina
  1. 1
  2. 2

Hardened Surge Protection Device – RJ45

● Protection Solution Against Voltage Surge
● Flexible Installation
● Wide Temperature Range
● Compatible with 10/100BASE-T, Gigabit and PoE products

Hardened Managed 8-port 10/100BASE M12 PoE with 2-port Gigabit M12 Ethernet Switch


● Railway Oriented
● Compliant with EN50155/EN50121-3-2/EN50121-4 railway applications
● M12 Connectors
● Built-in 8-port 10/100BASE M12 plus 2-port Gigabit M12/LC connectors
● Power over Ethernet (PoE)
● Provides 8-port PoE function with IEEE802.3at up to 30W per port

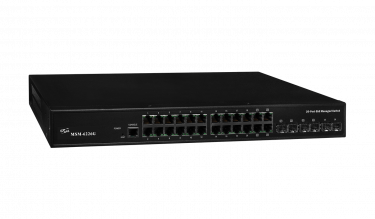

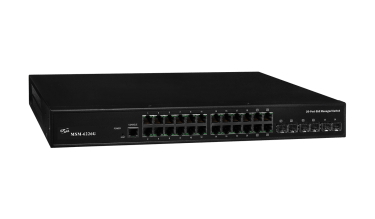

20-Port 10/100/1000 Base-T + 4 Combo 100/1000 TP/SFP Port + 2 SFP Port L2 Managed Switch

● IEEE 802.3ab 1000BASE-T Gigabit Ethernet
● L2+ features provide better manageability, security, QoS, and performance
● IPv6 and s-Flow supports
● Supports IGMPv3 snooping and IGMP Proxy
● IEEE 802.3z Gigabit Ethernet
● Dual speed SFPs for FE or GbE fiber uplink
● 802.3az Energy Efficient Ethernet standard
● Port Mirroring helps supervisor monitoring network



IEC61850-3/IEEE1613 Modulized Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with IEC61850-3/IEEE1613 for power substations & EN50121-4 for railway applications
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking with automatic link fail-over
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● Supports Command Line Interface in RS-232 Console
● Supports IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● Supports NTP
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range

IEC61850-3/IEEE1613 Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with EN50121-4 Railway application environment
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range

Managed Hardened 6-port 10/100BASE (4 x PoE) with 2-port SFP (DDM) Gigabit combo Ethernet Switch

● Supports PoE Power Sourcing Equipment (PSE)
● PoE control and Scheduling
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Taggingand GVRP
● IEEE802.1p QoS and LACP
● MAC-based trunking with automatic link fail-over
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, WebBrowser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation,Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range,tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Managed Industrial 8-port 10/100BASE and 2-port Gigabit Ethernet Switch with SFP options

● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range

Managed Hardened 8-port 10/100BASE and 2-port Gigabit Ethernet Switch with SFP options

● Certified by NEMA TS2 Environmental requirements for Traffic control equipment
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Managed lndustrial 8 to 14 ports 10/100BASE and 2-port Gigabit Ethernet Switch with SFP options

● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range

Hardened Managed 8 to 14 ports 10/100BASE and 2-port Gigabit Ethernet Switch with SFP options

● Certified by NEMA TS2 Environmental requirements for Traffic control equipment
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range,tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Industrial Managed 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch

● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range

IEC61850-3/IEEE1613 Modulized Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with IEC61850-3/IEEE1613 for power substations & EN50121-4 for railway applications
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy and GOOSE Message
● Zero Packet Loss pass by GOOSE Message
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 Console, Telnet, SNMP V1, V2c & V3, RMON, WebBrowser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range,tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

IEC61850-3/IEEE1613 Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with IEC61850-3/IEEE1613 for power substations & EN50121-4 for railway applications
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy and GOOSE Message
● Zero Packet Loss pass by GOOSE Message
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 Console, Telnet, SNMP V1, V2c & V3, RMON, WebBrowser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range,tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Managed Hardened 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch

● Certified by NEMA TS2 Environmental requirements for Traffic control equipment
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range,tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Managed Hardened 16-port 10/100BASE PoE with 2-port Gigabit combo Ethernet Switch

● Supports PoE Power Sourcing Equipment (PSE)
● PoE control and scheduling
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● DHCP Client/Server
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

16-port 10/100Base IEC61850/IEEE1613 Managed Hardened Ethernet Switch with 2-port Combo Gigabit

● Complies with IEC61850-3 & IEEE1613 environmental requirements for power substation automation systems
● Complies with EN50121-4 environmental requirement for railway application
● Complies with IEC61000-6-2 EMC generic standard immunity for industrial environment
● Proprietary "α-ring" support for network redundancy recovery time <15ms
● IEEE802.1w RSTP, IEEE802.1S MSTP and IEEE802.1D STP compatible
● IP multicast filtering through IGMP snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q
● VLAN tagging and GVRP
● IEEE802.1p QoS with four priority queues MAC-based trunking with automatic link fail-over RS-232 console, Telnet, SSL/SSH, SNMP V1& V2c & V3, RMON, Web browser, and TFTP management
● Supports command line interface in RS-232 console
● Supports IEEE802.1x security
● Bandwidth rate control
● Per-port programmable MAC address locking
● Up to 24 static secure MAC addresses per port
● Port mirroring

24-Port L2 Plus Managed Fast Ethernet Switch + 2 TP/SFP Gigabit Dual Media

● 2 Dual Media for Flexible Fiber Connection
● Port Mirroring helps supervisor monitoring network
● Support Q-in-Q (Double-tag)
● IEEE802.1Q tag-base VLAN for performance & security and 4094 VLAN entries
● IEEE802.1X Access Control improve network security
● IEEE802.1D Compatible, IEEE802.1w Rapid Spanning Tree & IEEE802.1s Multiple Spanning Tree
● Unknown Unicast/Broadcast/Multicast storm control
● Multicast VLAN management for IPTV
● IP-MAC-Port binding for LAN security
● QCL Based on Application traffic for QoS and rate limitation management

24-port 10/100Base Fast Ethernet Hardened Managed Ethernet Switch with up to 4-port Gigabit

● Complies with NEMA TS1 & TS2 environmental requirements for traffic control equipment
● Complies with IEC61000-6-2 EMC generic standard immunity for industrial environment
● Proprietary "α-ring" support for network redundancy; recovery time <15 ms
● IEEE802.1w RSTP, IEEE802.1S MSTP and IEEE802.1D STP compatible
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking with automatic link fail-over
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web
● Supports IEEE802.1x Security
● Per-port programmable MAC address locking
● Port mirroring
● 8192 MAC addresses and 3 M bits buffer memory
● 1000Mbps-full-duplex, 10/100Mbps-full/halfduplex, auto-negotiation, auto-MDI/MDIX
● -40 °C to +75°C operating temperature range

Single-mode 40 km, SC Connector, 6-Port 10/100 Base-T + 2-Port 100 Base-FX Fiber Managed Switch with metal case (RoHS)



● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 1 Mbit
● Integrated look-up engine with dedicated 2 K unicast MAC addresses
● Redundant Power Inputs +12 ~ +48V DC
Power failure alarm by relay output
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail mount and screw hole for wall mounting kit



6-Port 10/100 Base-T + 2-Port 100 Base-FX Fiber Managed Switch with metal case (Multi Mode, ST connector)



● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 1 Mbit
● Integrated look-up engine with dedicated 2 K unicast MAC addresses
● Redundant Power Inputs +12 ~ +48 VDC
Power failure alarm by relay output
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail mount and screw hole for wall mounting kit



1-20 van 23
Pagina
  1. 1
  2. 2
  • Deskundig advies
  • Flexibiliteit
  • Oplossingen
Advies nodig?
