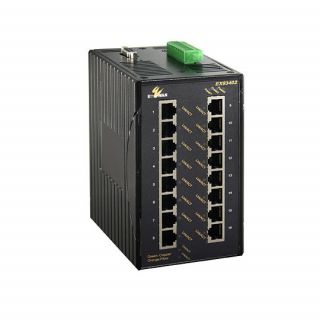

EtherWAN Ethernet Switch EX83000
16-port 10/100Base IEC61850/IEEE1613 Managed Hardened Ethernet Switch with 2-port Combo Gigabit
● Complies with IEC61850-3 & IEEE1613 environmental requirements for power substation automation systems
● Complies with EN50121-4 environmental requirement for railway application
● Complies with IEC61000-6-2 EMC generic standard immunity for industrial environment
● Proprietary "α-ring" support for network redundancy recovery time <15ms
● IEEE802.1w RSTP, IEEE802.1S MSTP and IEEE802.1D STP compatible
● IP multicast filtering through IGMP snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q
● VLAN tagging and GVRP
● IEEE802.1p QoS with four priority queues MAC-based trunking with automatic link fail-over RS-232 console, Telnet, SSL/SSH, SNMP V1& V2c & V3, RMON, Web browser, and TFTP management
● Supports command line interface in RS-232 console
● Supports IEEE802.1x security
● Bandwidth rate control
● Per-port programmable MAC address locking
● Up to 24 static secure MAC addresses per port
● Port mirroring
EtherWAN's EX83000 Series provides a Hardened Fully Managed 18-port switching platform combining high performance switching backbone with robust and secure management features required for mission critical and harsh environments where sustained connectivity is crucial.
The EX83000 Series is equipped with Sixteen 10/100BASE Fast Ethernet ports, in combination with up to Two Gigabit, Fixed Fiber, or SFP Combo port options. Mountable on a DIN-rail. The EX83000 Series is equipped with EtherWAN’s Alpha-Ring self-healing technology, providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption.
Users are able to access management features such as port security, IGMP snooping, VLANs, GARP protocols, LACP, and GOOSE messaging to name a few, via web browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces. With its hardened-grade specifications and IEC61850 & IEEE1613 certifications, the EX83000 Series is capable of operating under high EMI environments at the temperatures ranging from -40°C to 75°C, making it an ideal choice for harsh applications.
| Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab1000BASE-T, IEEE802.3z 1000BASE-SX/1000BASE-LX, IEEE802.3x, IEEE802.1p, IEEE802.1Q, IEEE802.1w, IEEE802.1x | ||
| Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps |
||
| Packet Buffer Memory | 2M bits | ||
| Processing Type |
|
||
| Address Table Size | 8192 MAC addresses |
| Ethernet Port |
|
|||
| Console Port | Port: One DB9 RS-232 port | |||
| LED Indicators |
|
|||
| Alarm Contact | One relay output with current 1A @ 24VDC |
| Input |
|
||
| Power Consumption | 15W Max. 1.25A@12VDC, 0.625A@24VDC | ||
| Overload Current Protection | Present | ||
| Reverse Polarity Protection | Present |
| Casing | Aluminium Case (IP30) |
| Dimensions (w x h x d) | 84 x 145 x 125mm |
| Installation | DIN-Rail (Top hat type 35mm), panel mounting |
| Operating Temperature |
|
||
| Storage Temperature | -45 °C ~ +85 °C | ||
| Humidity | 5% to 95% (non-condensing) |
| ISO | Manufactured in an ISO9001 facility |
| EMI | FCC Part 15, Class A |
| EMS | EN61000-6-4 |
| Environmental Test Compliance | IEC60068-2-6 Fc (vibration resistance) * 5g @ 10~150KHz, amplitude 0.35mm (operation/storage/transport) IEC60068-2-27 Ea (shock) * 25g @ 11ms (half-sine shock pulse; operation) * 50g @ 11ms (half-sine shock pulse; storage/transport) IEC60068-2-32 Ed (free fall) * 1M (3.281ft.) |
