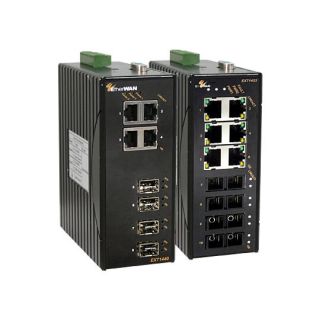

EtherWAN Ethernet Switch EX71000
Managed Hardened 8-port 10/100BASE and 2-port Gigabit Ethernet Switch with SFP options
● Certified by NEMA TS2 Environmental requirements for Traffic control equipment
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
EtherWAN’s EX71000 Series provides a Hardened Fully Managed 10-port switching platform combining high performance switching backbone with robust and secure management features required for mission critical and harsh environments where sustained connectivity is crucial.
The EX71000 Series is equipped with Ten 10/100BASE Fast Ethernet ports, in combination with up to Two Gigabit, Fixed Fiber, or SFP port options. Mountable on a DIN-rail. The EX71000 Series is equipped with EtherWAN’s Alpha-Ring self-healing technology, providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption.
Users are able to access management features such as; port security, IGMP snooping, VLANs, GARP protocols, LACP, via web browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces.
| Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE- TX/100BASE-FX, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-SX/1000BASE-LX, IEEE802.3x, IEEE802.1p, IEEE802.1Q, IEEE802.1w, IEEE802.1x |
||
| Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps |
||
| Packet Buffer Memory | 2M bits | ||
| Processing Type |
|
||
| Address Table Size | 8192 MAC addresses |
| Ethernet Port | 10/100BASE-TX: 8, 6 or 4 port 100BASE-FX: 0 to 4 ports Gigabit: 0, 1 or 2 ports |
| Console Port | Port: One DB9 RS-232 port |
| LED Indicators | Per Unit: Power Status (Power 1, Power 2, Power 3) Per Port: 10/100TX, 100FX/ SFP: Link/Activity, Speed10/100/1000TX, 1000SX/LX/ SFP: Link/Activity,Speed |
| Alarm Contact | One relay output with current 1A @ 24VDC |
| Input |
|
||
| Power Consumption | 11W Max. 0.92A @ 12VDC, 0.46A @ 24VDC |
||
| Overload Current Protection | Present | ||
| Reverse Polarity Protection | Present |
| Casing | Aluminium Case (IP30) |
| Dimensions (w x h x d) | 60mm (W) x 125mm (D) x 145mm (H) (2.36" (W) x 4.92" (D) x 5.7" (H)) |
| Weight | 1.1Kg (2.42lbs.) |
| Installation | DIN-Rail (Top hat type35mm), Rack Mount, Wall Mount |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) Tested @ -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% (non-condensing) |
| ISO | Manufactured in an ISO9001 facility |
| Safety | UL508 |
| EMI | FCC Part 15, Class A EN61000-6-4 - EN55022 - EN61000-3-2 - EN61000-3-3 |
| EMS |
EN61000-6-4 |
| Environmental Test Compliance | IEC60068-2-6 Fc (vibration resistance) * 5g @ 10~150KHz, amplitude 0.35mm (operation/storage/transport) IEC60068-2-27 Ea (shock) * 25g @ 11ms (half-sine shock pulse; operation) * 50g @ 11ms (half-sine shock pulse; storage/transport) IEC60068-2-32 Ed (free fall) * 1M (3.281ft.) |
