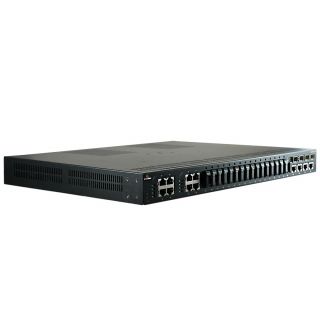

EtherWAN Ethernet Switch EX87000

Levertijd:
3~4 weken
SKU
EX87000

IEC61850-3/IEEE1613 Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with IEC61850-3/IEEE1613 for power substations & EN50121-4 for railway applications
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy and GOOSE Message
● Zero Packet Loss pass by GOOSE Message
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 Console, Telnet, SNMP V1, V2c & V3, RMON, WebBrowser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range,tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Brochure EN

EtherWAN’s EX87000 Series provides a Hardened Fully Managed 28-port switching platform combining high performance switching backbone with robust and secure management features required for mission critical and harsh environments where sustained connectivity is crucial.

The EX87000 Series is equipped with twenty-four 10/100BASE Fast Ethernet ports, in combination with up to four Gigabit, Fixed Fiber, or SFP Combo port options. Mountable on a 1U rack, the EX87000 Series is equipped with EtherWAN’s Alpha-Ring self-healing technology, providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption.

Users are able to access management features such as port security, IGMP snooping, VLANs, GARP protocols, LACP, and GOOSE messaging to name a few, via web browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces. With its hardened-grade specifications and IEC61850 & IEEE1613 certifications, the EX87000 Series is capable of operating under high EMI environments at the temperatures ranging from -40°C to 75°C, making it an ideal choice for harsh applications.

Meer informatie
Art.nr.
EX87000
Fabrikant
EtherWAN
Land van herkomst
Taiwan
Technology
Standards IEEE802.3 10BASE-T, IEEE802.3u 100BASE
TX/100BASE-FX, IEEE802.3ab 1000BASE-T,
IEEE802.3z 1000BASE-SX/1000BASE-LX,
IEEE802.3x, IEEE802.1p, IEEE802.1Q, IEEE802.1w,
IEEE802.1x
Forward and Filtering Rate 14,880pps for 10Mbps
148,810pps for 100Mbps
1,488,100pps for 1000Mbps
Packet Buffer Memory 3M bits
Processing Type
Store-and-forward
Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Address Table Size 8192 MAC addresses
Interface
Ethernet Port 10/100BASE-TX: 24, 16, 8 or 0 port
100BASE-FX: 0, 4, 8, 12, 16, 20 or 24 ports
Gigabit: 0, 2 or 4 ports
Console Port Port: One DB9 RS-232 port
LED Indicators Per Unit: Power Status
Per Port: 10/100TX, 100FX: Link/Activity (Green)
10/100/1000TX, 1000SX/LX: Link/Activity(Green)
SFP Selected: Selected/Unselected (Green)
Power
Input (T) : + / - 48VDC (36 - 75VDC) Internal Universal PSU
(W) : 88 - 370VDC and 90 - 264VAC Internal Universal PSU
(C) : 90 - 264VAC, 50 - 60Hz Internal Universal PSU
Power Consumption 42.7W Max.
Overload Current Protection Present
Mechanical
Casing Aluminium Case (IP30)
Dimensions (w x h x d) Single Power: 442mm (W) x 284mm (D) x 44.2mm (H)
(17.4" (W) x 11.1" (D) x 1.74" (H))
Redundant Power: 442mm (W) x 375mm (D) x 44.2mm (H)
(17.4" (W) x 14.7" (D) x 1.74" (H))
Weight Single Power: 5.1Kg (11.2lbs.)
Redundant Power: 6.2Kg (13.7lbs.)
Installation Rack Mounting
Environmental
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
Storage Temperature -45°C to 85°C (-49°F to 185°F)
Humidity 5% to 95% (non-condensing)
Approvals
ISO Manufactured in an ISO9001 facility
EMI FCC Part 15, Class A
EN61000-6-4
- EN55022, N61000-3-2, EN61000-3-3
EMS

EN61000-6-2
- EN61000-4-2 (ESD Standards)
Contact: + / - 8KV
Air: + / - 15KV
- EN61000-4-3 (Radiated RFI Standards)
35V/m, 80 to 3G; 80% AM
- EN61000-4-4 (Burst Standards)
Signal Ports: + / - 4KV
A.C. Power Ports: + / - 4KV
- EN61000-4-5 (Surge Standards)
Signal Ports: + / - 4KV; Line-to-Earth
A.C. Power Ports: + / - 4KV; Line-to-Earth
D.C. Power Ports: +/-4KV; Line-to-Earth
- EN61000-4-6 (Induced RFI Standards)
Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
A.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
- EN61000-4-8 (Magnetic Field Standards)
1000A/m @ 50, 60Hz
- IEC61000-4-10 (Oscillatory wave magnetic field test)
100kHz and 1MHz: 30A/m
- IEC61000-4-16 (Power frequency immunity test) 50Hz: 300V
- IEC61000-4-18 (Oscillatory wave immunity test):
100 kHz, 2.5kV CM and 2.5kV DM
1MHz , 2.5kV CM and 2.5kV DM
- IEEE1613:
power frequency withstand voltage: 2KV, Insulation
resistance >550 MOhm
RJ45 Port 500V, Insulation resistance >550 MOhm
Impulse voltage: 5Kv, Insulation resistance >550 MOhm
IEC60870-2-1: AC/DC power supply voltage variations
Environmental Test Compliance IEC60068-2-6 Fc (Vibration Resistance)
1g @ 10 - 150Hz, Amplitude 0.35mm
(Operation/Storage/Transport)
IEC60068-2-27 Ea (Shock)
25g @ 11ms (Half-Sine Shock Pulse; Operation)
50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
FED STD 101C Method 5007.1 (Free fall w/ package)
-Tested with Cross Weight and Drop High standard table
