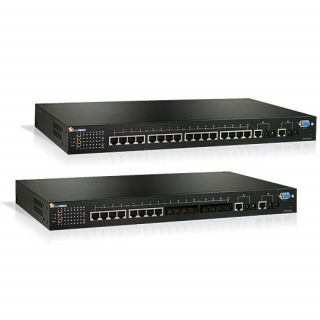

EtherWAN Ethernet Switch EX76000

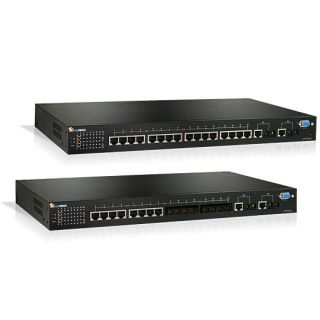

Managed Hardened 16-port 10/100BASE PoE with 2-port Gigabit combo Ethernet Switch
● Supports PoE Power Sourcing Equipment (PSE)
● PoE control and scheduling
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● DHCP Client/Server
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
EtherWAN's EX76000 Series provides a hardened 18-port switching platform supporting IEEE802.3af/at Power over Ethernet, high performance switching with robust management features required for mission-critical and harsh environments where sustained connectivity is crucial.
The EX76000 Series is equipped with 16 10/100BASE-TX PoE ports, in combination with two Gigabit SX/LX/BX/WDM combo port options. The IEEE802.3af/at PoE ports provide up to 15.4W/30W per port with a total power budget of 246W/480W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements such as; outdoor PTZ dome cameras, wireless access points, and way-side communication devices.
1U rack mountable, the EX76000 Series is equipped with EtherWAN's Alpha-Ring self-healing ring technology providing less than 15ms fault recovery time. Users are able to access management features such as port security, IGMP snooping, port-based VLAN, GARP protocols, link aggregation , via web browser, telnet, SSH, SNMP, RMON, TFTP, and RS-232 console interfaces. With the hardened specifications, the EX76000 Series is designed to operate at -40°C to 75°C in harsh environments, where high ESD, shock, and vibration may be present.
| Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASETX/100BASE-FX, IEEE802.3ab 1000BASE-T,IEEE802.3z 1000BASE-SX/1000BASE-LX, IEEE802.3x,IEEE802.1p, IEEE802.1Q, IEEE802.1w, IEEE802.1x,IEEE802.3af |
| Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps |
| Packet Buffer Memory | 2M bits |
| Processing Type |
Store-and-Forward |
| Address Table Size | 8192 MAC addresses |
| Input | Redundant power inputs:Terminal Block: 47 - 55VDC |
| Power Consumption | Max. 12W (without PoE) PoE power budget (depends on power input):246.4W Max. |
| PoE Power Output |
Port 1 to 16 IEEE802.3af: up to 15.4W/Port, 47 - 55VDC IEEE802.3at: up to 30W/port, 50 - 57VDC |
| Supports overload current protection Supports reverse polarity protection |
|
| Ethernet Port | 10/100BASE-TX: 16, 12 or 8 ports 100BASE-FX: 0, 2 or 4 ports Gigabit: 0, 1 or 2 ports |
| Console Port | Port: One DB9 RS-232 port |
| LED Indicators | Per Unit: Power Status (Power 1, Power 2) Per Port: PoE (Amber) for 10/100TX, 10/100TX, 100FX: Link/Activity (Green),Speed (Green) |
| Case | Metal case IP30 |
| Dimensions (w x h x d) | 442mm (W) x 205mm (D) x 44mm (H) (17.40" (W) x 8.07" (D) x 1.73" (H)) |
| Weight | 3.5Kg (7.7lbs.) |
| Installation | Rack mounting |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) Tested @ -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% (non-condensing) |
| ISO | Manufactured in an ISO9001 facility |
| Safety | UL 508 |
| EMI | FCC Part 15, Class A EN61000-6-4 - EN55022 - EN61000-3-2 - EN61000-3-3 |
| EMS | EN61000-6-2 - EN61000-4-2 (ESD Standards) Contact: + / - 6KV Air: + / - 8KV - EN61000-4-3 (Radiated RFI Standards) 10V/m, 80 to 1000MHz; 80% AM - EN61000-4-4 (Burst Standards) Signal Ports: + / - 4KV D.C. Power Ports: + / - 4KV - EN61000-4-5 (Surge Standards) Signal Ports: + / - 1KV; Line-to-Line D.C. Power Ports: + / - 0.5KV; Line-to-Earth - EN61000-4-6 (Induced RFI Standards) Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM - EN61000-4-8 (Magnetic Field Standards) 30A/m @ 50, 60Hz |
| Environmental Test Compliance | IEC60068-2-6 Fc (Vibration Resistance) 5g @ 10 - 150Hz, Amplitude 0.35mm (Operation/Storage/Transport) IEC60068-2-27 Ea (Shock) 25g @ 11ms (Half-Sine Shock Pulse; Operation) 50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport) FED STD 101C Method 5007.1 (Free fall w/package) - Tested with Cross Weight and Drop High standard table |
