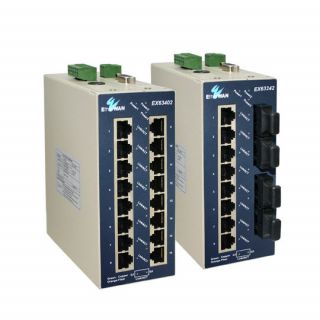

EtherWAN Ethernet Switch EX63000
Industrial Managed 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range
EtherWAN’s EX63000 Series provides an industrial Fully Managed 18-port switching platform combining high performance switching backbone with robust and secure management features required for mission critical and harsh environments where sustained connectivity is crucial.
The EX63000 Series is equipped with sixteen 10/100BASE Fast Ethernet ports, in combination with up to two Gigabit combo ports with Fixed Fiber options. Mountable on a DIN-rail, the EX63000 Series is equipped with EtherWAN’s Alpha-Ring self-healing technology, providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption.
Users are able to access management features such as; port security, IGMP snooping, VLANs, GARP protocols, LACP, and via web browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces.
| Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE- SX/1000BASE-LX, IEEE802.3x, IEEE802.1p, IEEE802.1Q, IEEE802.1w, IEEE802.1x |
| Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps |
| Packet Buffer Memory | 2M bits |
| Processing Type |
Store-and-Forward |
| Address Table Size | 8192 MAC addresses |
| Input | Input Voltage: 12 to 48VDC (Terminal Block); 12VDC (DC Jack) |
| Power Consumption | 15W Max. 1.25A @ 12VDC, 0.625A @ 24VDC |
| Supports overload current protection Supports reverse polarity protection |
|
| Ethernet Port | 10/100BASE-TX: 16, 12 or 8 ports 100BASE-FX: 0, 1, 2 or 4 ports Gigabit: 0, 1 or 2 ports |
| Console Port | Port: One DB9 RS-232 port |
| LED Indicators | Per Unit: Power Status (Power 1, Power 2, Power 3) Per Port: 10/100BASE: Link/Activity 1000BASE: Link/Activity (Green: Copper,Amber: Fiber) |
| Alarm Contact | One relay output with current 1A @ 24VDC |
| Case | Metal case IP30 |
| Dimensions (w x h x d) | 59mm (W) x 125mm (D) x145mm (H) (2.32" (W) x 4.92" (D) x 5.71" (H)) |
| Weight | 1Kg (2.2lbs.) |
| Installation | DIN-Rail (Top hat type 35mm), Wall Mount |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) Tested @ -20°C to 70°C( -4°F to 158°F) |
| Storage Temperature | -45°C to 85°C (-49°F to 185°F) |
| Humidity | 5% to 95% (non-condensing) |
| ISO | Manufactured in an ISO9001 facility |
| EMI | FCC Part 15, Class A EN61000-6-4 - EN55022 - EN61000-3-2 - EN61000-3-3 |
| EMS | EN61000-6-2 - EN61000-4-2 (ESD Standards) Contact: + / - 6KV Air: + / - 8KV - EN61000-4-3 (Radiated RFI Standards) 10V/m, 80 to 1000MHz; 80% AM - EN61000-4-4 (Burst Standards) Signal Ports: + / - 4KV D.C. Power Ports: + / - 4KV - EN61000-4-5 (Surge Standards) Signal Ports: + / - 1KV; Line-to-Line D.C. Power Ports: + / - 0.5KV; Line-to-Earth - EN61000-4-6 (Induced RFI Standards) Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM - EN61000-4-8 (Magnetic Field Standards) 30A/m @ 50, 60Hz |
| Environmental Test Compliance | IEC60068-2-6 Fc (Vibration Resistance) 5g @ 10 - 150Hz, Amplitude 0.35mm (Operation/Storage/Transport) IEC60068-2-27 Ea (Shock) 25g @ 11ms (Half-Sine Shock Pulse; Operation) 50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport) FED STD 101C Method 5007.1 (Free fall w/ package) -Tested with Cross Weight and Drop High standard table |
