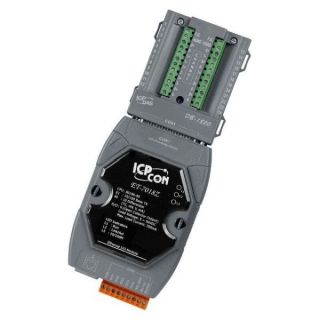

ICPDAS ET-7018Z

Levertijd:
2~7 dagen
SKU
ET-7018Z

10-channel Thermocouple Input with High Voltage Protection and 6-channel Isolated Digital Output Module

● Regular Ethernet Options
● Built-In Web Server
● Web HMI
● Modbus/TCP, Modbus/UDP Protocol
● Communication Security
● Dual Watchdog
● Operating Temperature: -25 °C ~ +75 °C
● I/O Pair Connection
● Built-in I/O (Thermocouple Input: 10 Channels, DO: 6 Channels)

The ET-7000/PET-7000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfi ng the Internet.

Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000/PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the ET-7000/PET-7000 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.


Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.

The "Z" version is another milestone in the development of thermocouple series and a testament to excellence by ICP DAS. ET-7018Z is specifically designed for extremely accurate thermocouple measurement. It features automatic cold-junction compensation for each channel to get temperature outputs consistency and stable temperature output in the field. Current input and voltage input are supported. Another feature is that ten of its input channels can individually be configured with different kinds of analog input. ET-7018Z also got open thermocouple detection and many protection mechanisms. The 6 digital output can be set alarm output with short-circuit protection and overload protection.



APPLICATIONS:
● Building Automation
● Factory Automation
● Machine Automation
● Remote Maintenance
● Remote Diagnosis
● Testing Equipment

Meer informatie
Art.nr.
ET-7018Z
Fabrikant
ICPDAS
Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 second), Communication (Programmable)
Thermocouple Input
Input Channels 10 (Differential)
Sensor Type
±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Requires Optional External 125Ω Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710)
Individual Channel Configuration Yes
Resolution 16-bit
Sampling Rate 10 Samples/Sec. (Total)
Accuracy ±0.1% or better
Zero Drift ±0.5 μV/°C
Span Drift ±25 ppm/°C
Overvoltage Protection 240 Vrms
Input Impedance >300 kΩ
Common Mode Rejection 150 dB Min.
Normal Mode Rejection 100 dBV
Temperature Outputs Consistency Yes
Stable Temperature Output in the Field Yes
Open Wire Detection Yes
Digital Output
Output Channels 6
Type Isolated Open Collector (Sink)
Max. Load Current 700 mA/Channel
Load Voltage 5 VDC ~ 50 VDC
Overvoltage Protection 60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power On Value Yes, Programmable
Safe Value Yes, Programmable
2-Way Isolation
Ethernet 1500 VDC
I/O 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for each terminal and 8 kV Air for random point
EFT (IEC 61000-4-4) ±4 kV for Power
LED Indicators
LED 1 System Running
LED 2 Ethernet Link/Act
LED 3 Ethernet 10/100 M Speed
PoE Power -
Power
Reverse Polarity Protection Yes
Powered from Terminal Block Yes, 10 ~ 30 VDC
Powered from PoE -
Consumption 2.0 W
Mechanical
Dimensions (w x l x d) 72 x 123 x 35mm
Installation DIN-Rail or Wall Mounting
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, non-condensing
