8-channel Analog Input with High Voltage Protection and 4-channel Isolated Digital Output Module

● PoE and Regular Ethernet Options
● Built-In Web Server
● Web HMI
● Modbus/TCP, Modbus/UDP Protocol
● Communication Security
● Dual Watchdog
● Operating Temperature: -25 °C ~ +75 °C
● I/O Pair Connection
● Built-In I/O (AI: 8 Channels, DO: 4 Channels)

The ET-7000/PET-7000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfing the Internet.


Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000/PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the ET-7000/PET-7000 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.

Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.

The ET-7017 is a 16-bit, 8-channel differential analog inputs and 4-channel digital ouputs module that provides programmable input range on all analog channels (±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA and 4~20 mA) and digital output can be set alarm output with short-circuit protection and overload protection. Each analog channel is allowed to configure an individual range and has 240 Vrms high overvoltage protection. Jumper selectable for voltage or current input.

The sampling rate of ET-7017 is changeable; there are fast mode and normal mode for your consideration. ET-7017 also has qualification for 4 kV ESD protection as well as 3000 VDC  intra-module isolation.

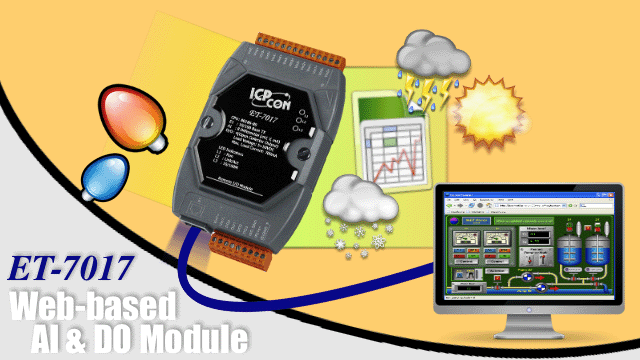

https://www.icpdas.com/products/Remote_IO/et-7000/images/ET-7017_photo.gif





APPLICATIONS

● Building Automation
● Factory Automation
● Machine Automation
● Remote Maintenance
● Remote Diagnosis
● Testing Equipment

Meer informatie
Art.nr.
ET-7017
Fabrikant
ICPDAS
Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 second), Communication (Programmable)
Analog Input
Input Channels 8 (Differential)
Input Type
±150 mV, ±500 mV, ±1V, ±5V, ±10V
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (jumper selectable)
Individual Channel Configuration Yes
Resolution
Normal Mode 16-bit
Fast Mode 12-bit
Sampling Rate
Normal Mode 10 Samples/Sec. (Total)
Fast Mode 60 Samples/Sec. (Total)
Accuracy
Normal Mode ±0.1%
Fast Mode ±0.5% or better
Zero Drift ±20 μV/°C
Span Drift ±25 ppm/°C
Overvoltage Protection 240 Vrms
Input Impedance
Voltage 2 MΩ
Current 125 Ω
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Digital Output
Output Channels 4
Type Isolated Open Collector (Sink)
Max. Load Current 700 mA/Channel
Load Voltage 5 VDC ~ 50 VDC
Overvoltage Protection 60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power On Value Yes, Programmable
Safe Value Yes, Programmable
2-Way Isolation
Ethernet 1500 VDC
I/O 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for each terminal and 8 kV Air for random point
EFT (IEC 61000-4-4) ±4 kV for Power
LED Indicators
L1 LED System Running Indicator
L2 LED Ethernet Link/Act Indicator
L3 LED Ethernet 10/100 M Speed
Power
Reverse Polarity Protectionn Yes
Powered from terminal block Yes, 10 ~ 30 VDC
Powered from PoE -
Consumption 2.6 W
Mechanical
Dimensions (w x l x d) 72 x 123 x 35mm
Installation DIN-Rail or Wall mounting
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, non-condensing
