Lighting Control

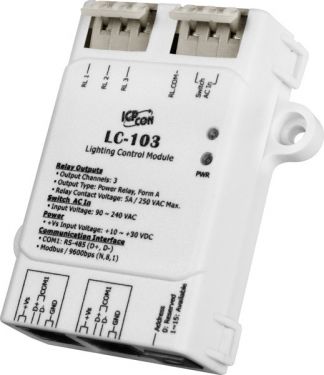

1-channel AC Digital Input and 3-channel Relay Output Lighting Control Module

● Cost-effective for lighting control
● Power Relay Outputs
● AC Digital Input
● Tiny form-factor with easy screw mounting
● Made from fire retardant materials (UL94-V0 Level)
● Low power consumption

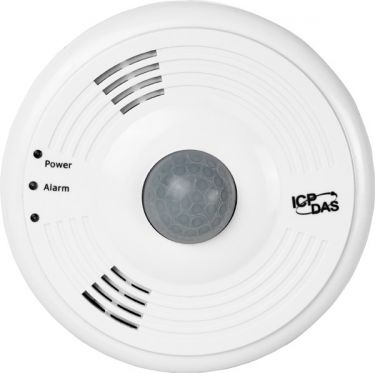

PIR Motion Sensor and Temperature Sensor Module

● 360° Motion Detection Up to 8 m Diameter Range
● Time-Delay / Lux. / Sensitivity Adjustable
● Photo Sensor Inside for Smart Switch-on Control
● LED Indicator for PIR/Temperater Sensor
● The Temperature Sensor for Measuring Room Temperature or Fire Alarm
● Relay Output Can be Used to Control the Light Via the PIR/Temperature Sensor
● Up to 1500 W Incandescent and 300 W Fluorescent (T8) Loading Capability
● RS-485 Communication Interface
● DCON and Modbus RTU Protocols
● Ceiling Surface Mount Design

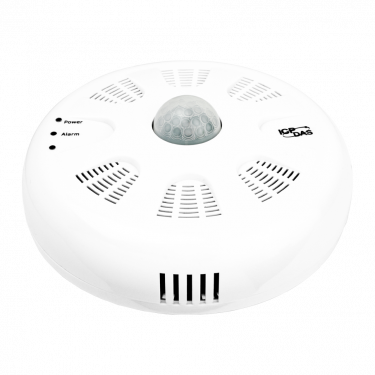

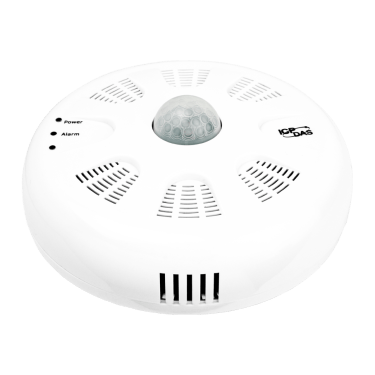

Motion, Temperature, and Humidity Sensor Module

● Adjustable Time-Delay / Lux / Sensitivity
● Internal Photosensor for Smart Switch Control
● LED Indicator for PIR/Temperature Sensor
● Temperature Sensor for Measuring Room Temperature
● Suitable as either Temperature or Fire Alarm
● Relay Output Can be Used to Control Light Via the PIR/Temperature Sensor
● Suitable for loads up to 1500 W (Incandescent) and 300 W (Fluorescent)
● Fluorescent (T8) Loading Capability
● Wide range of Communication Interfaces and Protocols
● Ceiling or Surface-Mount Design

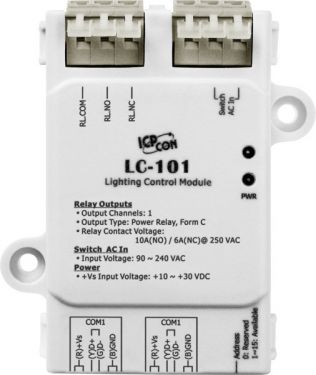

1-channel AC Digital Input and 1-channel Relay Output Lighting Control Module

● Cost-effective for lighting control
● Power Relay Output
● Isolated AC Digital Input
● Tiny form-factor
● Low power consumption
