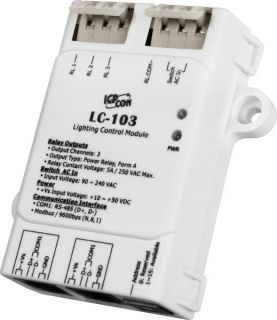

ICPDAS LC-103
Levertijd:
2~7 dagen
SKU
LC-103
1-channel AC Digital Input and 3-channel Relay Output Lighting Control Module
● Cost-effective for lighting control
● Power Relay Outputs
● AC Digital Input
● Tiny form-factor with easy screw mounting
● Made from fire retardant materials (UL94-V0 Level)
● Low power consumption
The LC-103 is an easy-to-use lighting control module that requires no specialist skills to install and operate, and no software is needed in order to control the DO channels.
The LC-103 provides 1 channel for digital input (photo couple isolation) and 3 channels for relay output. All output channels are form A type relays, while the input channel is based on a sink-type using a wire connection. The input channel can directly control a 3-channel relay ON and OFF sequence without requiring a remote host controller. 4 kV ESD protection and 5000 Vrms intra-module isolation are also provided.
When required, communication with the LC-103 is programmable based on the Modbus RTU protocol, and an added benefit is that different addresses can be set for Modbus RTU communication via hardware configuration.
Meer informatie
Art.nr.
LC-103
Fabrikant
ICPDAS
Digital Input
| Input Channels | 1 |
| Type | 90~240 VAC |
| On voltage Level | 85 VAC |
| Off voltage Level | 60 VAC |
| Input Impedance | 68 KΩ, 1 W |
| Isolation | 5000 Vrms |
| Function | Local and Remote Direct Control Relay ON/OFF and Remote Status Monitoring |
Communication Interface
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 9600 bps |
| Protocol | Modbus/RTU/ASCII |
LED Indicators
| 1 LED | Power Indicator |
EMS Protection
| ESD (IEC 61000-4-2) |
|
||
| EFT (IEC 61000-4-4) | ±2 kV for Power |
Power
| Input voltage range | 10 ~ 30 VDC |
| Connector | RJ-11 |
| Consumption | 0.5 W max. |
Mechanical
| Dimensions (w x l x h) | 52 x 98 x 27 mm |
| Installation |
Screw Mounting |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
