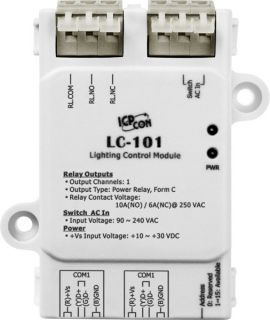

ICPDAS LC-101 1-channel AC Digital Input and 1-channel Relay Output Lighting Control Module

The LC-101 is an easy-to-use lighting control module that requires no specialist skills to install and operate, and no software is needed in order to control the DO channels.
The LC-101 provides 1 channel for digital input (photo couple isolation) and 1 channel for relay output. The output channel is form C type relay, while the input channel is based on a sink-type using a wire connection. The input channel can directly control the relay ON and OFF sequence without requiring a remote host controller. 4 kV ESD protection and 5000 Vrms intra-module isolation are also provided.

 When required, communication with the LC-101 is programmable based on the Modbus RTU protocol, and an added benefit is that different addresses can be set for Modbus RTU communication via hardware configuration.
