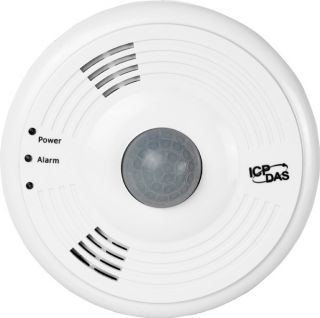

ICPdas PIR-130 - PIR Motion Sensor
PIR Motion Sensor and Temperature Sensor Module
● 360° Motion Detection Up to 8 m Diameter Range
● Time-Delay / Lux. / Sensitivity Adjustable
● Photo Sensor Inside for Smart Switch-on Control
● LED Indicator for PIR/Temperater Sensor
● The Temperature Sensor for Measuring Room Temperature or Fire Alarm
● Relay Output Can be Used to Control the Light Via the PIR/Temperature Sensor
● Up to 1500 W Incandescent and 300 W Fluorescent (T8) Loading Capability
● RS-485 Communication Interface
● DCON and Modbus RTU Protocols
● Ceiling Surface Mount Design
The PIR-130 module includes a 1-channel passive infrared (PIR) sensor that is able to detect infrared waves generated by human within a range of approximately 8 meters in diameter with a 360° coverage area.
The PIR-130 is used for indoor motion detection, and can be configured to automatically switch on a light if motion is detected.
The PIR-130 module also includes a 1-channel temperature sensor that can be used for measuring room temperature or can be configured to activate a fire alarm.
