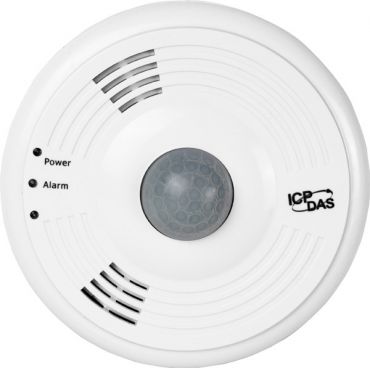

ICPdas PIR Microwave Motion Sensor, PIR Motion Sensor, Temperature and Humidity Sensor Module

PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be confi gured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or it can be confi gured to activate a fi re alarm. The RPIR versions include added microwave detection technology that is especially suitable for BA applications. A wide range of interface connections can be selected to suit individual needs, including RS-485/ZigBee/Ethernet/Bluetooth/ Wi-Fi models, and the various models provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems.

The PIR series provides motion detection and temperature measurement capabilities, while the RPIR series provides motion and presence detection capabilities, as well as temperature and humidity and other environmental measurements. The energy-effi ciency enhancements provided in the PIR series are very helpful for indoor motion sensing, anti-theft security, quality of life, green energy, and environmental protection. A free Utility is also included that allows confi guration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel.

The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fi reproof material, and the white minimalist exterior design ensures that it easy to match with interior decoration.
