DeviceNet Series

J1939 to Modbus TCP Server / RTU Slave Gateway

● RoHS Design
● Provide PWR / ERR / J1939 / MODBUS indication LEDs
● The built-in jumper to select 120 ohm terminal resister of CAN bus
● Watchdog inside

Modbus TCP server/DeviceNet Master Gateway

● Programmable DeviceNet Master MAC ID
● Programmable DeviceNet transfer-rate 125K, 250K, 500K
● Supports maximum DeviceNet devices up to 6
● Predefined Master/Slave Connection Set
● The maximum Fragment number is (Input/Output) up to 64
● Supports I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
● Supports one Poll, one Bit-Strobe, one COS, one Cyclic IO connection for each DeviceNet device when connected with this module
● Supports on-line adding device into and removing device from network
● Converters single Mobbus/TCP to multi Modbus/RTU, setting by Utility
● Supports VxComm technique for every COM ports of controllers, setting by Utility
● Allowed multi-client (or master) access simultaneously
● Support "Set/Get Explicit Message" methods via Modbus TCP/RTU command
● Supports Modbus RTU to DeviceNet master, setting by Utility

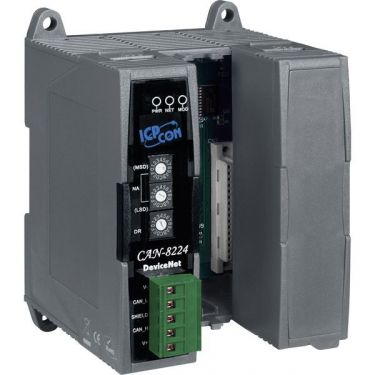

DeviceNet Embedded Device with 4 I/O Expansions

● DeviceNet Version: DeviceNet Specification Volume I & II, Release 2.0
● Number of Nodes: 64 max.
● Baud Rate: 125K, 250K, 500K bps
● Support Message Groups: Predefined Master/Slave Connection set (Group 2 only Server)
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● Device Heartbeat & Shutdown Message
● Produce EDS file Dynamically
● No. of Fragment I/O: 128 Bytes max. (Input / Output)
● MAC ID Setting by Rotary Switch
● Baud Rate Setting by Rotary Switch

DeviceNet Embedded Device with 2 I/O Expansions

● Number of Nodes: 64 max.
● Baud Rate: 125 K, 250 K, 500 K
● Support Message Groups: Group 2 only Server
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● Device Heartbeat & Shutdown Message
● Produce EDS file Dynamically
● No. of Fragment I/O: 128 Bytes max. (Input / Output)
● MAC ID Setting by Rotary Switch
● Baud Rate Setting by Rotary Switch
● Status LED: NET, MOD, PWR

DeviceNet Embedded Device with 1 I/O Expansion

● Number of Nodes: 64 max.
● Baud Rate: 125K, 250K, 500K
● Support Message Groups: Group 2 only Server
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● Device Heartbeat & Shutdown Message
● Produce EDS file Dynamically
● No. of Fragment I/O: 128 Bytes max. (Input / Output)
● MAC ID Setting by Rotary Switch
● Baud Rate Setting by Rotary Switch
● Status LED: NET, MOD, PWR

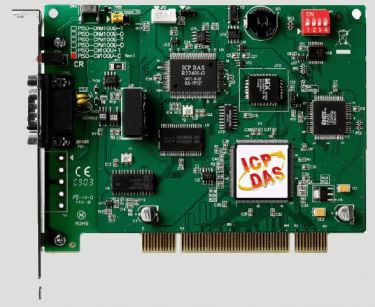

1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside

● DeviceNet Version: Volume I & II, Release 2.0
● Programmable Master MAC ID and Baud Rate
● Baud Rate: 125 kbps, 250 kbps, 500 kbps
● Support Group 2 and UCMM connection
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● I/O Length: 512 Bytes max (Input/Output) per slave
● Slave Node : 63 nodes max
● Support Auto-Search slave device function
● Support on-line adding and removing devices
● Support Auto-detect Group 2 and UCMM device

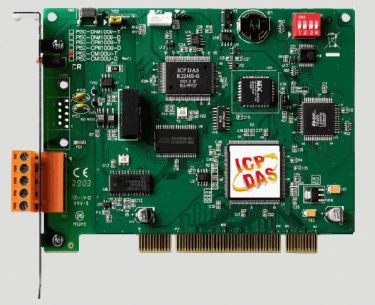

1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside

● DeviceNet Version: Volume I & II, Release 2.0
● Programmable Master MAC ID and Baud Rate
● Baud Rate: 125 kbps, 250 kbps, 500 kbps
● Support Group 2 and UCMM connection
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● I/O Length: 512 Bytes max (Input/Output) per slave
● Slave Node : 63 nodes max
● Support Auto-Search slave device function
● Support on-line adding and removing devices
● Support Auto-detect Group 2 and UCMM device

1 Port DeviceNet Master Module with dual port RAM

● 3 indication LEDs (Error,Status,Bus LEDs)
● Programmable Master MAC ID
● Programmable transfer-rate 125K, 250K, 500K
● Support maximum nodes up to 64
● Support Group 2 and UCMM functions
● The maximum Fragment number is (Input/Output) up to 64
● Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
● Support Auto-scan slave device function
● Support on-line add device into and remove device from network
● Support Auto-Reconnect when the connection is broken

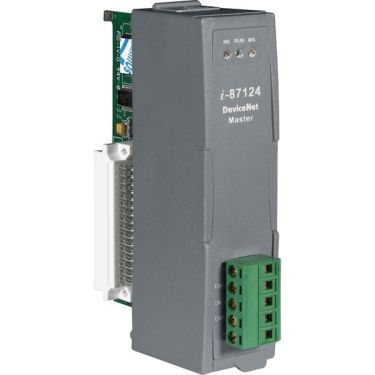

1 Port DeviceNet Master Slot Module

● 3 indication LEDs (Error,Status,Bus LEDs)
● 1 KVdc isolation on CAN side
● Programmable Master MAC ID
● Programmable transfer-rate 125 K, 250 K, 500 K
● Support maximum nodes up to 64
● Support Group 2 Only Server functions
● The maximum Fragment number is (Input/Output) up to 64
● Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
● Support Auto-scan slave device function
● Support on-line add device into and remove device from network

Modbus Master / DeviceNet / Slave Gateway

● Group 2 Only Server DeviceNet subscriber
● Support Explicit and Poll Connection
● User can select the Modbus RTU/ASCII protocol for each COM port
● Maximum support 10 Modbus RTU/ASCII commands for each COM port
● Maximum support 4 Modbus TCP devices
● Maximum support 5 Modbus TCP commands for each Modbus TCP device
● Support Modbus function codes: 0x01，0x02，0x03，0x04，0x05，0x06，0x0F and 0x10
● Maximum support 2048 channels DI，2048 channels DO，1024 channels AI and 1024 channels AO for each Modbus TCP device

CAN bus Remote I/O module with CANopen Protocol of 8-Channel PWM and 8-Channel High Speed Counter

● Hardware-controlled PWM output
● PWM output frequency: 0.2 Hz ~ 500 kHz with 0.1%~99.9% duty cycle
● PWM Output Modes: software trigger / hardware trigger
● Trigger each PWM output individually or all PWM outputs synchronously
● Support Burst output mode and Continue output mode
● Provide 32-bit 500 kHz high-speed counter for each DI channel
● Pass the validation of DeviceNet conformance test
● Provide EDS file for DeviceNet master interface

2-Port Isolated Protection Universal PCI CAN Card with 5-Pin Screw Terminal Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● Universal PCI card, supports both 5V and 3.3V PCI bus

2-Port Isolated Protection Universal PCI CAN Card with 9-Pin D-Sub Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● Universal PCI card, supports both 5V and 3.3V PCI bus

2-Port Isolated Protection CAN Communication Board with 5-Pin Screw Terminal Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● PCI card, supports 5V PCI bus

2-Port Isolated Protection CAN Communication Board with 9-Pin D-Sub Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● PCI card, supports 5V PCI bus
