DeviceNet Gateway Series

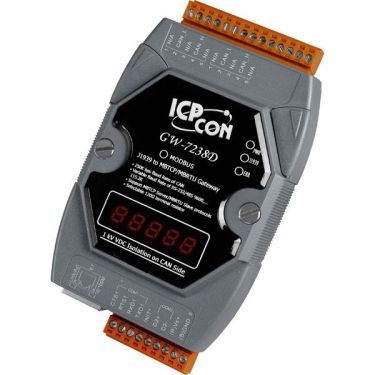

J1939 to Modbus TCP Server / RTU Slave Gateway

● RoHS Design
● Provide PWR / ERR / J1939 / MODBUS indication LEDs
● The built-in jumper to select 120 ohm terminal resister of CAN bus
● Watchdog inside

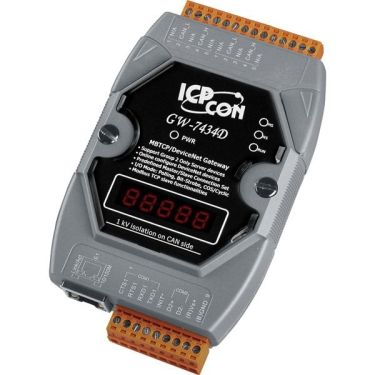

Modbus TCP server/DeviceNet Master Gateway

● Programmable DeviceNet Master MAC ID
● Programmable DeviceNet transfer-rate 125K, 250K, 500K
● Supports maximum DeviceNet devices up to 6
● Predefined Master/Slave Connection Set
● The maximum Fragment number is (Input/Output) up to 64
● Supports I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
● Supports one Poll, one Bit-Strobe, one COS, one Cyclic IO connection for each DeviceNet device when connected with this module
● Supports on-line adding device into and removing device from network
● Converters single Mobbus/TCP to multi Modbus/RTU, setting by Utility
● Supports VxComm technique for every COM ports of controllers, setting by Utility
● Allowed multi-client (or master) access simultaneously
● Support "Set/Get Explicit Message" methods via Modbus TCP/RTU command
● Supports Modbus RTU to DeviceNet master, setting by Utility

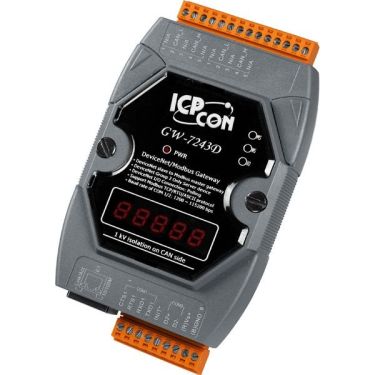

Modbus Master / DeviceNet / Slave Gateway

● Group 2 Only Server DeviceNet subscriber
● Support Explicit and Poll Connection
● User can select the Modbus RTU/ASCII protocol for each COM port
● Maximum support 10 Modbus RTU/ASCII commands for each COM port
● Maximum support 4 Modbus TCP devices
● Maximum support 5 Modbus TCP commands for each Modbus TCP device
● Support Modbus function codes: 0x01，0x02，0x03，0x04，0x05，0x06，0x0F and 0x10
● Maximum support 2048 channels DI，2048 channels DO，1024 channels AI and 1024 channels AO for each Modbus TCP device
