DeviceNet Master Series

1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside

● DeviceNet Version: Volume I & II, Release 2.0
● Programmable Master MAC ID and Baud Rate
● Baud Rate: 125 kbps, 250 kbps, 500 kbps
● Support Group 2 and UCMM connection
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● I/O Length: 512 Bytes max (Input/Output) per slave
● Slave Node : 63 nodes max
● Support Auto-Search slave device function
● Support on-line adding and removing devices
● Support Auto-detect Group 2 and UCMM device

1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside

● DeviceNet Version: Volume I & II, Release 2.0
● Programmable Master MAC ID and Baud Rate
● Baud Rate: 125 kbps, 250 kbps, 500 kbps
● Support Group 2 and UCMM connection
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● I/O Length: 512 Bytes max (Input/Output) per slave
● Slave Node : 63 nodes max
● Support Auto-Search slave device function
● Support on-line adding and removing devices
● Support Auto-detect Group 2 and UCMM device

1 Port DeviceNet Master Module with dual port RAM

● 3 indication LEDs (Error,Status,Bus LEDs)
● Programmable Master MAC ID
● Programmable transfer-rate 125K, 250K, 500K
● Support maximum nodes up to 64
● Support Group 2 and UCMM functions
● The maximum Fragment number is (Input/Output) up to 64
● Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
● Support Auto-scan slave device function
● Support on-line add device into and remove device from network
● Support Auto-Reconnect when the connection is broken

1 Port DeviceNet Master Slot Module

● 3 indication LEDs (Error,Status,Bus LEDs)
● 1 KVdc isolation on CAN side
● Programmable Master MAC ID
● Programmable transfer-rate 125 K, 250 K, 500 K
● Support maximum nodes up to 64
● Support Group 2 Only Server functions
● The maximum Fragment number is (Input/Output) up to 64
● Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
● Support Auto-scan slave device function
● Support on-line add device into and remove device from network

2-Port Isolated Protection Universal PCI CAN Card with 5-Pin Screw Terminal Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● Universal PCI card, supports both 5V and 3.3V PCI bus

2-Port Isolated Protection Universal PCI CAN Card with 9-Pin D-Sub Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● Universal PCI card, supports both 5V and 3.3V PCI bus

2-Port Isolated Protection CAN Communication Board with 5-Pin Screw Terminal Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● PCI card, supports 5V PCI bus

2-Port Isolated Protection CAN Communication Board with 9-Pin D-Sub Connector

● Two independent CAN bus 2.0A/2.0B communication ports
● Compatible with CAN specification 2.0 parts A and B
● On-board optical isolation protection
● Programmable transfer rate up to 1 Mbps
● Jumper select 120Ω terminator resistor for each port
● Direct memory mapping to the CAN controllers
● 33MHz 32bit 5V PCI bus (V2.1) plug and play
● PCI card, supports 5V PCI bus

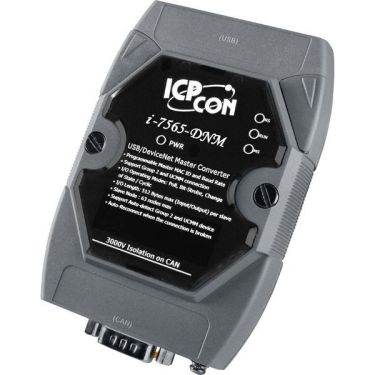

USB/DeviceNet Master communication Converter with D-sub 9-pin connector.

● Fully compliant with USB 1.1/2.0 (Full Speed)
● No external power supply is required as I-7565 takes it's power from the USB bus
● DeviceNet Version: Volume I & II, Release 2.0
● Programmable Master MAC ID and Baud Rate
● Baud Rate: 125k, 250k, 500k
● Support Group 2 and UCMM connection
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● I/O Length: 512 Bytes max (Input/Output) per slave
● Slave Node : 63 nodes max
● Support Auto-Search slave device function
