Fieldbus is an industrial network system for real-time distributed control. It is a way to connect instruments in a manufacturing plant. Fieldbus works on a network structure which typically allows daisy-chain, star, ring, branch, and tree network topologies with many major advantages to all applications of automation. ICP DAS offers fieldbus products different with different protocols applying in different industrial applications.

ICP DAS provides wide range of fieldbus products, such as industrial Ethernet, CAN bus, ProfiBus,J1939, EtherNet/IP, BACnet/IP EtherCAT, M-bus, Hart... etc.

1-20 van 126
Pagina
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5

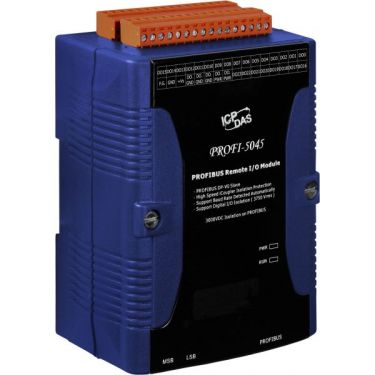

PROFIBUS Remote I/O Module (24-channel Isolated Digital Output)


● Support for PROFIBUS DP-V0 protocol
● Detect transmission rate automatically(Max. 12 mbps)
● Address 0 ~ 99 set by rotary switches
● Network Isolation Protection
● 3000 VDC isolation protection on PROFIBUS side
● 4KV ESD Protection (contact for any terminal)
● Wide range of power input (DC 10 ~ 40 VDC) and operating temperature (-25 °C~+75 °C)

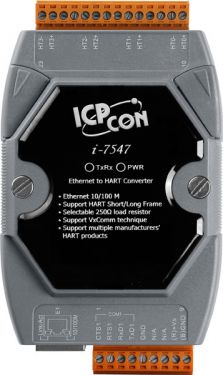

Ethernet to HART Converter

● Support HART Short/Long frame
● Support HART Burst mode
● Support point-to-point or multi-drop HART mode
● Support connecting up to 15 HART slave devices
● Allow two HART masters
● Provide PWR / TxRx indication LED
● 4KV ESD Protection
● Built-in Watchdog
● Selectable 250Ω load resistor
● Provide four HART channels
● Support VxComm technique


4-ch Digital Input and 4-ch Relay Output CANopen Slave Module

● I/O Channels: 4DI and 4DO
● Digital Input Type: Sink/Source
● Digital Output Type: Relay
● Relay Type: Form A (SPST-NO)
● Load: 5A, each channel
● ESD Protection: +/- 4kV, Contact for each terminal
● Intra-module Isolation: Field to logic 3750 VDC

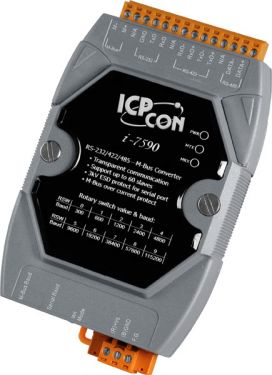

RS-232 / RS-422 / RS-485 to M-Bus Convertor (RoHS)

● Serial Baud and M-Bus Baud can be configured separately
● Provides 10 kinds of Baud for default, 6 kinds of Baud for user-defined
● Supports up to 100 M-Bus slaves
● Provides transparent communication
● Watchdog inside
● Bias resistors of RS-422 and RS-485 adjust by switch
● Allows updating firmware by the RS-232 port
● Overcurrent and short-circuit protection on the M-Bus port
● 3750 Vrms photocouple isolation on the M-Bus port
● ±4 kV ESD to contact
● Reverse polarity protection on power
● Provide 3 LED indicators, PWR LED, MTX LED and MRX LED

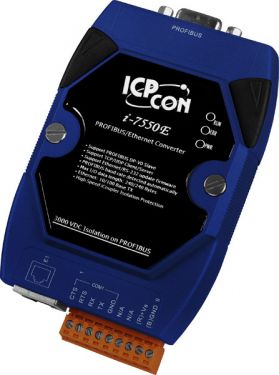

PROFIBUS/Ethernet Converter(RoHS)

● DP-V0 Slave
● Transmission Rate (kbps) 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
● Automatically sets transmission rates
● Max Input/Output of Data is 240Bytes
● Web Configuration
● 10/100 Base-TX
● 2500 Vrms Network Isolation Protection
● 3000 VDC DC Protection Isolation Protection on PROFIBUS side

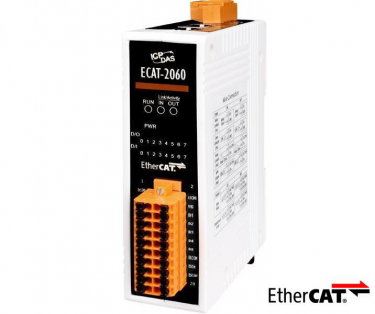

EtherCAT Slave I/O Module with Isolated 6-ch DI and 6-ch Relay DO

● On the fly processing: EtherCAT
● Powerful MCU handles efficient network traffic
● 2 x RJ-45 bus interface
● Distance between Stations up to 100 m (100BASE-TX)
● Support daisy chain connection
● EtherCAT conformance test tool verified
● Removable terminal block connector
● LED indicators for the I/O status
● Built-In digital I/O: 6 DI and 6 Relay DO
● RoHS compliant
● ESD Protection 4 KV Contact for each channel

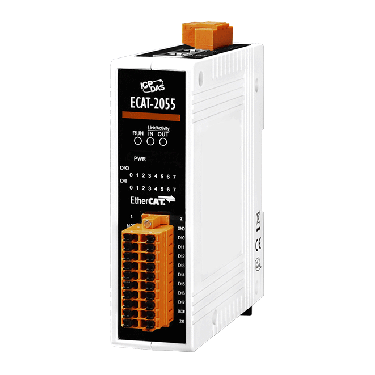

EtherCAT Slave I/O Module with Isolated 8-ch DO and 8-ch DI

● On the fly processing: EtherCAT
● Powerful MCU handles efficient network traffic
● 2 x RJ-45 bus interface
● Distance between Stations up to 100 m (100BASE-TX)
● Support daisy chain connection
● EtherCAT conformance test tool verified
● Removable terminal block connector
● LED indicators for the I/O status
● Built-In digital I/O: 8 DI and 8 DO
● RoHS compliant
● ESD Protection 4 KV Contact for each channel



EtherCAT Slave I/O Module with Isolated 16-ch DI

● On the fly processing: EtherCAT
● Powerful MCU handles efficient network traffic
● 2 x RJ-45 bus interface
● Distance between Stations up to 100 m (100BASE-TX)
● Support daisy chain connection
● EtherCAT conformance test tool verified
● Removable terminal block connector
● LED indicators for the I/O status
● Built-In digital I/O: 16 DI
● RoHS compliant
● ESD Protection 4 KV Contact for each channel




EtherCAT Slave I/O Module with Isolated 8-ch DO and 8-ch DI

● On the fly processing: EtherCAT
● Powerful MCU handles efficient network traffic
● 2 x RJ-45 bus interface
● Distance between Stations up to 100 m (100BASE-TX)
● Support daisy chain connection
● EtherCAT conformance test tool verified
● Removable terminal block connector
● LED indicators for the I/O status
● Built-In digital I/O: 8 DI and 8 DO
● RoHS compliant
● ESD Protection 4 KV Contact for each channel

EtherCAT Slave I/O Module with Isolated 8-ch DO and 8-ch DI

● On the fly processing: EtherCAT
● Powerful MCU handles efficient network traffic
● 2 x RJ-45 bus interface
● Distance between Stations up to 100 m (100BASE-TX)
● Support daisy chain connection
● EtherCAT conformance test tool verified
● Removable terminal block connector
● LED indicators for the I/O status
● Built-In digital I/O: 8 DI and 8 DO
● RoHS compliant
● ESD Protection 4 KV Contact for each channel




EtherCAT Slave I/O Module with Isolated 16-ch Digital Inputs

● On the fly processing: EtherCAT
● Powerful MCU handles efficient network traffic
● 2 x RJ-45 bus interface
● Distance between Stations up to 100 m (100BASE-TX)
● Support daisy chain connection
● EtherCAT conformance test tool verified
● Removable terminal block connector
● LED indicators for the input status
● Built-In 16 digital inputs
● RoHS compliant
● ESD Protection 4 KV Contact for each channel




EtherCAT Slave I/O Module with Isolated 16-ch Digital Outputs(RoHS)

● On the fly processing: EtherCAT
● Powerful MCU handles efficient network traffic
● 2 x RJ-45 bus interface
● Distance between Stations up to 100 m (100BASE-TX)
● Support daisy chain connection
● EtherCAT conformance test tool verified
● Removable terminal block connector
● LED indicators for the output status
● Built-In 16 digital outputs
● RoHS compliant
● ESD Protection 4 KV Contact for each channel


PROFIBUS Remote I/O Module

● Support for PROFIBUS DP-V0 protocol
● Detect transmission rate automatically(Max. 12Mbps)
● Support device-related & channel-related diagnosis
● Address 0~126 set by rotary switches or SSA telegram
● 16-bits resolution & 100ksps AD converter
● Network isolation protection
● 3000VDC isolation protection on PROFIBUS
● 4kV ESD protection (contact for any terminal)
● Wide range of power input (DC 10~40VDC) and operating temperature (-25°C~+75°C)



6-ch Analog Input, 2-ch Analog Output, 2-ch Digital Input and 1-ch Digital Output CANopen Slave Module

● I/O Channels: 6AI, 2AO, 2DI and 1DO
● Analog Input Type: +/-150mV, +/-500 mV, +/-1V, +/-5 V, +/-10 V +/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Current measurement with external 125Ω resistor required )
● Analog Output Type: +0 V ~ +5 V, +/-5 V, +0 V ~ +10 V, +/-10 V
● Analog Input sample rate: 60 Samples/Sec. (Total)
● Digital Input Type: Sink
● Digital Output Type: Sink
● Analog Input Resolution: 16-bit
● Analog Input Accuracy: +/-0.1% FSR
● Analog Output Resolution: 12-bit
● Analog Output Accuracy: +/-0.1% FSR
● ESD Protection: +/- 4kV, Contact for each terminal
● Intra-module Isolation: Field to logic 3000 VDC



Industrial 4-port CAN bus Switch with Metal casing

● 4 CAN communication ports
● Compatible with CAN specification 2.0A and 2.0B
● Fully compatible with the ISO 11898-2 standard
● Baud rate : 5 k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
● CAN bus filter is configurable
● 100 data frames buffer for each CAN channel
● Max data flow up to 2500 fps for all CAN channel
● Selectable baud rate by rotary switch
● Selectable 120Ω terminator resistor by DIP switch
● LED for CAN reception and transmission
● Support CAN network with star or tree topology
● Extending the CAN bus distance to expand the CAN network size
● Integrating different CAN network with different baud rate

BACnet/IP to Modbus TCP Gateway

● Quickly and Cost Effectively integrate networks
● Provide PWR/Communication Status indication LED
● Read/Write any standard Modbus register via BACnet
● No Programming Required
● Modbus  register mapping configured via web interface
● Fully Compliant with BACnet/IP Server
● Supports up to 200 objects each of types: Analog Input, Analog Output, Analog Value, Binary Input, Binary Output, Value, Multi-State Input, Multi-State Output,
● BIBB (BACnet Interoperability Building Blocks) Supported: DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B
● Fully User Configurable Modbus TCP Client
● Supports Modbus coils, input register, holding registers.
● Supports for Function Code 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x10, 0x0F.

BACnet/IP to Modbus TCP Gateway

● Quickly and Cost Effectively integrate networks
● Provide PWR/Communication Status indication LED
● Read/Write any standard Modbus register via BACnet
● No Programming Required
● Modbus  register mapping configured via web interface
● Fully Compliant with BACnet/IP Server
● Supports up to 200 objects each of types: Analog Input, Analog Output, Analog Value, Binary Input, Binary Output, Value, Multi-State Input, Multi-State Output,
● BIBB (BACnet Interoperability Building Blocks) Supported: DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B
● Fully User Configurable Modbus TCP Client
● Supports Modbus coils, input register, holding registers.
● Supports for Function Code 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x10, 0x0F.

PROFIBUS Remote I/O Unit with 8 Expansion Slots

● Protocol& hierarchy: DP-V0 Slave
● Detect transmission rate (9.6 ~ 12000 kbps) automatically
● Support all I-8k & I-87k I/O Module
● Support Device-Related & Channel-Related Diagnosis
● Address 0~126 set by rotary switches or SSA-Telegram
● Support Hot-Swap for I-87k High-Profile Modules
● Network Isolation Protection
● 3000 VDC isolation protection on PROFIBUS side
● 4 kV ESD Protection (contacting for any terminal)



J1939 to Modbus TCP Server / RTU Slave Gateway

● RoHS Design
● Provide PWR / ERR / J1939 / MODBUS indication LEDs
● The built-in jumper to select 120 ohm terminal resister of CAN bus
● Watchdog inside



Isolated 6-ch DI and 6-ch Relay Output EtherNet/IP I/O module

● Transfer protocol: EtherNet/IP
● Powerful 32-bit MCU handles efficient network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
● Easy firmware update via Ethernet
● Removable terminal block connector
● RoHS compliant with Halogen-free
● LED display to indicate the I/O status



1-20 van 126
Pagina
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
