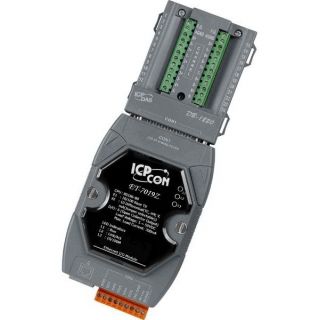

ICPDAS ET-7019Z
Levertijd:
2~7 dagen
SKU
ET-7019Z
10-channel Thermocouple Input Module
● Built-in Web Server
● Web HMI
● Support for both Modbus/TCP and Modbus/UDP Protocols
● Communication Security
● Dual Watchdog
● Wide Operating Temperature Range: -25 °C ~ +75 °C
● I/O Pair Connection
● Built-in I/O (AI: 10 Channels with 240 Vrms Overvoltage Protection; DO: 6 Channels)
The ET-7000/PET-7000, a web-based Ethernet I/O module, features a built-in web server which allows confi guration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfi ng the Internet.
Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000/PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the ET-7000/PET-7000 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.
Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.
The ET-7019Z is a web-based Ethernet I/O module that features a built-in web server which allows remote configuration, I/O monitoring and I/O control simply by using a regular web browser. Remote control is as easy as surfing the Internet. In addition, the web HMI function means that programming or HTML skills are no longer required so creating dynamic and attractive web pages for I/O monitoring and I/O control purposes will be more fun for engineers in the future. The ET-7019Z offers easy and safe access for users at anytime and from anywhere, and also supports the Modbus/TCP protocol that ensures perfect integration with SCADA software.
The “Z” version is another milestone in the development of the thermocouple series and is a testament to the excellence of ICP DAS products.
The ET-7019Z is specifically designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported. Another feature is that its ten input channels can be individually be configured for different kinds of analog input. Open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six digital output channels can be set as alarm outputs with short-circuit protection and overload protection.
AUTOMATION:
● Building Automation
● Factory Automation
● Machine Automation
● Remote Maintenance
● Remote Diagnosis
● Testing Equipment
Meer informatie
Art.nr.
ET-7019Z
Fabrikant
ICPDAS
Software
| Built-In Web Server | Yes |
| Web HMI | Yes |
| I/O Pair Connection | Yes |
Communication
| Ethernet Port | 10/100 Base-TX with Auto MDI/MDI-X |
| Protocol | Modbus/TCP, Modbus/UDP |
| Security | ID, Password and IP Filter |
| Dual Watchdog | Yes, Module (0.8 second), Communication (Programmable) |
Analog Input
| Channels | 10 (Differential) | ||
| Sensor Type |
|
||
| Individual Channel Configuration | Yes | ||
| Resolution | 16-bit | ||
| Sampling Rate | 10 Samples/Second (Total) | ||
| Accuracy | ±0.1% of FSR or better | ||
| Zero Drift | ±0.5 μV/°C | ||
| Span Drift | ±25 ppm/°C | ||
| Over Voltage Protection | 240 Vrms | ||
| Input Impedance | >300 kΩ | ||
| Common Mode Rejection | 86 dB Min. | ||
| Normal Mode Rejection | 100 dB | ||
| Temperature Output Consistency | Yes | ||
| Stable Temperature Output in the Field | Yes | ||
| Open Wire Detection | Yes |
Digital Output
| Channels | 6 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Max. Load Current | 700 mA/Channel |
| Load Voltage | 5 VDC ~ 50 VDC |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power-on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
2-Way Isolation
| Ethernet | 1500 VDC |
| I/O | 2500 VDC |
EMS Protection
| ESD (IEC 61000-4-2) |
|
||
| EFT (IEC 61000-4-4) | ±4 kV for Power | ||
| Surge (IEC 61000-4-5) | ±3 kV for Power |
LED Indicators
| L1 | Systems Running |
| L2 | Ethernet Link/Act |
| L3 | Ethernet 10/100 M Speed |
Power
| Reverse Polarity Protection | Yes |
| Powered from Terminal Block | Yes, 10 ~ 30 VDC |
| Consumption | 2.5 W |
Mechanical
| Dimensions (w x l x h) | 72 x 116 x 35mm |
| Installation | DIN-Rail or Wall Mounting |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
