ICPDAS tM-7561

Levertijd:
Uit voorraad leverbaar
SKU
tM-7561

USB to Isolated RS-485 Converter

● Fully Compliant with the USB 1.1/2.0 (High Speed)
● No External Power Supply required
● Baud Rate, 300 ~ 115200 bps from the USB Bus
● 2500 VDC Isolation Protection on the RS-485 side
● Operating Temperatures: -25 °C ~ +75 °C
● Driver Supports Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/8 (32/64-bit)Linux
● DIN-Rail

The tM-7561 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface. Connecting the tM-7561 to a PC, you get one RS-485 port.

Like the I-7520, the tM-7561 contains "Self Tuner" chip auto-tunes the Baud Rate and data format to the RS-485 network. The tM-7561 module derives its power from the USB port and doesn't need any power adapter. It also features a high-speed 115.2 kbps transmission rate, and supports various O.S. independent RS-485 port.



APPLICATIONS:

Meer informatie
Art.nr.
tM-7561
Fabrikant
ICPDAS
Interface
USB Compatibility: USB 1.1 and 2.0 standards
RS-485 Data+, Data-
2-wire cabling Belden 8941 (2P twisted-pair cable), if different cables are used, the transmission distance may change
RS-485 Transfer Distance
Max. 1,200 m at 9.6 kbps
Max. 400 m at 115.2 kbps
Maximum Supported RS-485 Devices 256 (Without repeater)
Self-Tuner Asic Inside Yes
Speed 300 ~ 115200 bps
Connection
RS-485 Removable 7-Pin Terminal Block
USB Type B

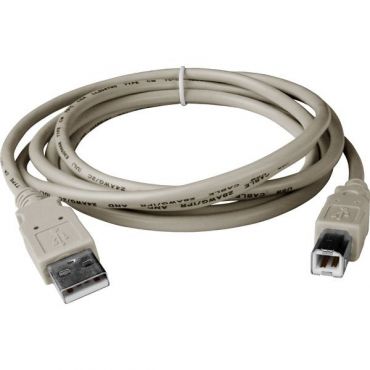

Cable Included CA-USB18 (1.8 m Cable) x 1
LED Indicators
Power/Communication Yes
Power
Input Voltage Range +5 VDC from USB
Power Consumption 0.4 W
Mechanical
Casing Plastic
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimensions (w x h x d) 52 x 87 x 27mm
Installation DIN-Rail
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +75 °C
Humidity 10 ~ 90% RH, non-condensing
