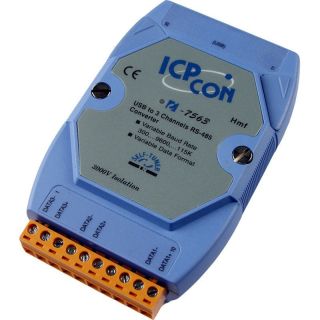

ICPDAS I-7563
Levertijd:
Uit voorraad leverbaar
SKU
I-7563
USB to Isolated RS-485 Active Star Wiring Converter
● Fully Compliant with USB 1.1/2.0 (High Speed)
● No External Power Supply is required as the I-7561 is powered
● RS-485 Active Star Wiring Applications from the USB Bus
● Baud Rate: 300 ~ 115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● ESD Protection for the RS-485 Data Line
● Operating Temperatures: -25 °C ~ +75 °C
● Driver Supports Windows 7/10 (32/64-bit)/Linux
● DIN-Rail Mountable
The I-7563 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface.
Connecting the I-7563 to a PC. The I-7563 contains "Self-Tuner" This chip auto-tunes the Baud Rate and data format to the RS-485 network.
The I-7563 module derives its power from the USB port and doesn't need any power adapter. It also features a high-speed 115.2 kbps transmission rate, and supports various O.S.
Do you have any RS-485 wiring problems I-7563 is a USB to 1-channel RS-485 converter with a 3-way RS-485 Hub. Each channel contains its own RS-485 driver IC, so it can support star-shaped wiring.
Meer informatie
Art.nr.
I-7563
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Interface
| USB | Compatibility: USB 1.1 and 2.0 standards | ||||
| RS-485 |
|
||||
| 2-wire cabling | Belden 8941 (2P twisted-pair cable), if different cables are used, the transmission distance may change | ||||
| RS-485 Transfer Distance | Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps | ||||
| Maximum Supported RS-485 Devices | Max. of 256 devices | ||||
| Self-Tuner Asic Inside for RS-485 | Yes | ||||
| Speed | 300 ~ 115200 bps | ||||
| Connection RS-485 | Removable 10-Pin Terminal Block | ||||
| Connection USB | Type B | ||||

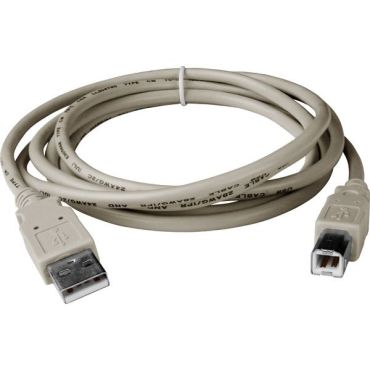

| Cable Included | CA-USB18 (1.8 m Cable) x 1 |
LED Indicators
| Power | Yes |
Power
| Input Voltage Range | +5 VDC from USB |
| Power Consumption | 0.5 W |
Mechanical
| Casing | Plastic |
| Flammability | UL94-V0 |
| Dimensions (w x h x d) | 72 x 115 x 35mm |
| Installation | DIN-Rail |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
