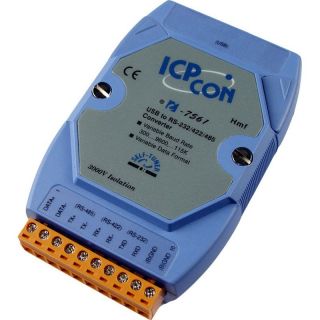

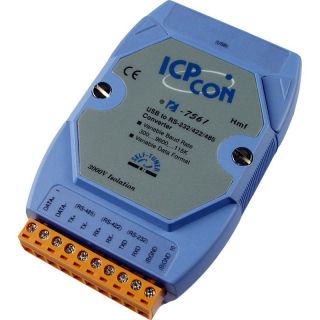

ICPDAS I-7561 - USB to Isolated RS-232/422/485 Converter

Levertijd:
Uit voorraad leverbaar
SKU
I-7561

USB to Isolated RS-232/422/485 Converter

● Fully Compliant with the USB 1.1/2.0 (High Speed)
● No External Power Supply is required as the I-7561 is powered
● Baud Rate: 300 ~ 115200 bps
● 3000 VDC Isolation Protection on the RS-232/422/485 side
● ESD Protection for the RS-232/422/485 Data Line
● Operating Temperatures: -25 °C ~ +75 °C
● Driver Supports Windows 7(32/64-bit)/10/2012/Linux
● DIN-Rail Mountable


Brochure EN

The I-7561 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface.

Connecting the I-7561 to a PC, you get one RS-232/422/485 port. Like the I-7520A, the I-7561 contains "Self Tuner" chip auto-tunes the Baud Rate and data format to the RS-485 network.

The I-7561 module derives its power from the USB port and doesn't need any power adapter. It also features a high-speed 115.2 kbps transmission rate, and supports various O.S. independent RS-232/422/485 Ports.

Meer informatie
Art.nr.
I-7561
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Interface
USB Compatibility: USB 1.1 and 2.0 standards
Serial Interface
RS-232 TxD, RxD, GND
RS-422 TxD+, TxD-, RxD+, RxD
RS-485 Data+, Data-
The RS-232, RS-422 and RS-485 cannot be used simultaneously
2-wire cabling/4-wire cabling Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used,
the transmission distance may change
RS-422/485 Transfer Distance
Max. 1,200 m @ 9.6 kbps
Max. 400 m @ 115.2 kbps
Maximum Supported RS-485 Devices 256 (Without repeater)
Self-Tuner Asic Inside (RS-485) Yes
Speed 300 ~ 115200 bps
Connection
RS-232/422/485 Removable 10-Pin Terminal Block
USB Type B
Cable Included CA-USB18 (1.8 m Cable) x1
LED Indicators
Power Yes
Power
Input Voltage Range +5 VDC from USB
Power Consumption 0.1A @ 5V = 0.5W, ±5%
Mechanical
Casing Plastic
Flammability UL 94V-0 materials
Dimensions 61 x 33 x 15mm
Installation DIN-Rail
Omgeving
Operating Temperature -25 °C ~ 75 °C
Storage Temperature -30 °C ~ 75 °C
Humidity 10% ~ 90% RH, non-condensing
