Fanless Ruggedized Systems
Axiomtek biedt een reeks fanless ruggedized systemen aan die ontworpen zijn om zware omgevingen te weerstaan en betrouwbare computertoepassingen te bieden. Deze systemen worden vaak gebruikt in industriële automatisering, transport, buitentoepassingen en andere veeleisende scenario's waar traditionele computers mogelijk moeite hebben om effectief te werken. Hier zijn enkele belangrijke kenmerken die vaak voorkomen in Axiomtek's fanless ruggedized systemen:
1. Fanless Design: Het ontbreken van koelventilatoren vermindert het risico op mechanische storingen, minimaliseert onderhoudsvereisten en zorgt voor stille werking. Fanloze ontwerpen zijn bijzonder gunstig in stoffige of vuile omgevingen waar op ventilator gebaseerde systemen verstopping of beschadiging kunnen ondervinden.
2. Ruggedized Constructie: De ruggedized systemen van Axiomtek zijn gebouwd om extreme temperaturen, trillingen, schokken en vochtigheid te weerstaan. Ze beschikken meestal over robuuste behuizingen en componenten die ruwe omstandigheden kunnen doorstaan zonder de prestaties of betrouwbaarheid in gevaar te brengen.
3. Brede Temperatuurbereik: Deze systemen zijn vaak ontworpen om te werken binnen een breed temperatuurbereik, van onder nul tot hoge hitteomgevingen, wat zorgt voor betrouwbare prestaties in verschillende klimaten en omstandigheden.
4. Schok- en Trillingsbestendigheid: Ruggedized systemen zijn ontworpen om de effecten van schokken en trillingen op te vangen en te verminderen, waardoor ze geschikt zijn voor gebruik in voertuigen, zware machines en andere dynamische omgevingen.
5. IP-beoordeelde Bescherming: Sommige modellen kunnen IP-beoordeelde bescherming hebben, die beschermt tegen stof, water en andere omgevingsverontreinigingen. Dit zorgt ervoor dat de interne componenten veilig en functioneel blijven, zelfs in uitdagende omgevingen.
6. Uitbreiding en Connectiviteit: Ondanks hun compacte formaat bieden de ruggedized systemen van Axiomtek vaak een scala aan connectiviteitsopties, waaronder meerdere I/O-poorten, uitbreidingssleuven en draadloze connectiviteit, waardoor naadloze integratie mogelijk is met een verscheidenheid aan randapparatuur en netwerkomgevingen.
7. Levensduur en Betrouwbaarheid: Axiomtek geeft prioriteit aan de levensduur en betrouwbaarheid van hun ruggedized systemen, door hoogwaardige componenten te gebruiken en rigoureuze tests uit te voeren om consistente prestaties te garanderen, zelfs in veeleisende toepassingen gedurende langere periodes.
Over het algemeen zijn de fanless ruggedized systemen van Axiomtek goed geschikt voor gebruik in industriële en buitenomgevingen waar duurzaamheid, betrouwbaarheid en prestaties van essentieel belang zijn. Ze bieden een combinatie van robuuste constructie, fanloze werking, breed temperatuurbereik en veelzijdige connectiviteitsopties om te voldoen aan de behoeften van diverse toepassingen en industrieën.

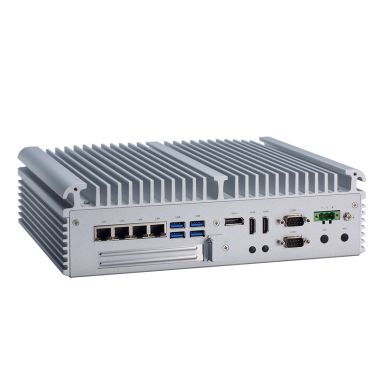

Axiomtek eBOX710A - 10th Generation Fanless Embedded System● 10th/11th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (Comet Lake-S) up to 65W
● 4 GbE LAN and 4 COM ports
● Dual 2.5" SATA HDD drive bays
● 2 HDMI and 1 DisplayPort with dual view supported
● -40 °C to +70 °C wide operating temperatures
● Wide range power input from 9 to 48 VDC
● 1 PCIe x4 slot for I/O card
● Flexible I/O window slot for mPCIe modules
Axiomtek eBOX630A - 11th Generation Fanless Embedded System● 11th gen Intel® Core™ i7/i5/i3 or Celeron® Quad-core ULT
● Dual-channel DDR4-3200 SO-DIMM for up to 64GB of memory
● Supports 3x 2.5 GbE, 6 USB, 4 COM
● -40°C to +60°C wide operating temperatures
● 9 to 48 VDC wide range DC power input
● Supports triple displays with 2 HDMI, and 1 DisplayPort++
● Intel® Iris® Xe integrated graphics (i7 & i5 SKUs)
● Trusted platform module (TPM 2.0 onboard)

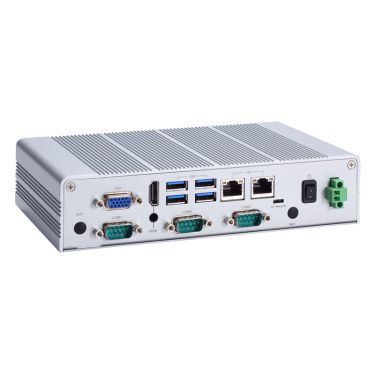

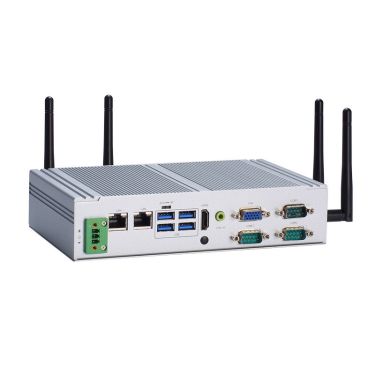

Fanless Embedded System with Intel® Celeron J6412 2.0 GHz, HDMI, VGA, 6 USB, 2 LAN, 3 COM, and 9 to 36V DC● Intel® Celeron® processor J6412 quad-core onboard
● -10°C to +60 °C operating temperature
● 1 HDMI and 1 VGA for dual-view display
● 1 2.5GbE and 1 1GbE Ethernet ports
● Trusted Platform Module (TPM) 2.0 onboard
● M.2 Key E for WiFi/WiFi 6 connection
● 9-36 VDC Wide range power input
Axiomtek eBOX630-528-FL - 8th Generation Fanless Embedded SystemFanless Embedded System with 8th Gen Intel® Core™ i7/i5/i3 & Celeron® ULT Processor, 2 HDMI, 1 VGA, 3 GbE LAN, 6 USB, Dual PCI Express Mini Card Slots and 9 to 36V DC
● 8th gen Intel® Core™ i7/i5/i3 & Celeron® ULT processor (Whiskey Lake-U)
● Dual-channel DDR4 2400 SO-DIMM up to 64GB memory
● Supports 2 HDMI, VGA, 3 GbE LAN, 4 COM and 6 USB
● Trusted platform module (TPM 2.0 onboard)
● Fanless -40°C to +70°C* operating temperature
● 9 to 36 VDC wide range DC power input
● AMS.AXView intelligent remote monitoring software for IIoT
Fanless Edge AI System with NVIDIA® Jetson AGX Xavier™ SoM● NVIDIA® Jetson AGX Xavier™ with 512-core Volta GPU with 64 Tensor cores GPU
● High AI computing performance for GPU-accelerated processing
● Ideal for intelligent edge applications, AGV, AMR and computer vision
● Supports M.2 NVMe PCIe x4 SSD slot
● Wide operating temperature from -30°C to +50°C
● JetPack supported

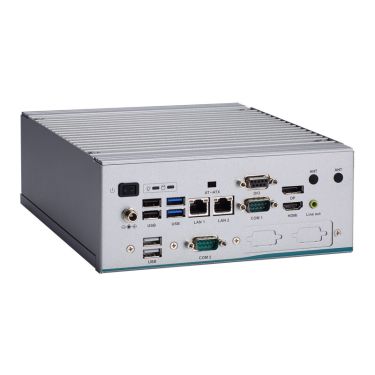

Fanless Embedded System with 9th/8th Gen Intel® Core™ Processor, Intel® H310, HDMI, DisplayPort, 6 USB, 2 COM and 8-CH DI/DO● Supports 2 COM, 6 USB and 8-CH DI/DO
● Two 2.5" SATA drive bay
● M.2 Key E 2230 for Wi-Fi
● Front I/O connectivity design
● Flexible I/O window supported
Fanless Embedded System with Intel® Xeon®, 9th/8th Gen Intel® Core™ i7/i5/i3 Processor, Intel® C246, ECC/Non-ECC and 1 PCIe x4 Expansion Slot● Intel® Xeon®, 9th/8th gen Intel® Core™ i7/i5/i3 ®processor
● 2 DDR4 ECC/non-ECC memory supported, up to 64GB
● Dual swappable 2.5" SATA HDD drive bays with RAID 0 & 1
● DVI-I, HDMI, and DisplayPort with triple-view supported
● 6 GbE LAN, 6 USB 3.2 and 1 PCIe x4 expansion slot
● Flexible I/O window supported
Fanless Embedded System with Intel® Atom® x5-E3940 1.8 GHz, HDMI, VGA, 2 GbE LAN, 6 USB and 3 COM● Intel® Atom® x5-E3940 onboard
● 204-pin DDR3L-1866 SO-DIMM for up to 8GB of memory
● Supports 2 GbE LAN, 3 COM and 6 USB
● One 2.5” SATA drive bay and mSATA supported
● Trusted Platform Module (TPM) 1.2
● 2 PCI Express Mini Card slots and 1 SIM slot
● -40°C to +60°C operating temperature range
● AMS.AXView intelligent remote monitoring software for IIoT
eBOX100-51R-FL - Fanless Ultra Compact Embedded System● Ultra compact size with high performance
● Intel® Core™ i5-7300U or Celeron® 3965U
● M.2 Key E 2230 for Wi-Fi
● M.2 Key B 2242 for storage
● Azure certified and AMS.AXView supported
● Supports Intel® AMT 11
● Multiple mounting designs: Wall mount, DIN-rail and VESA mount

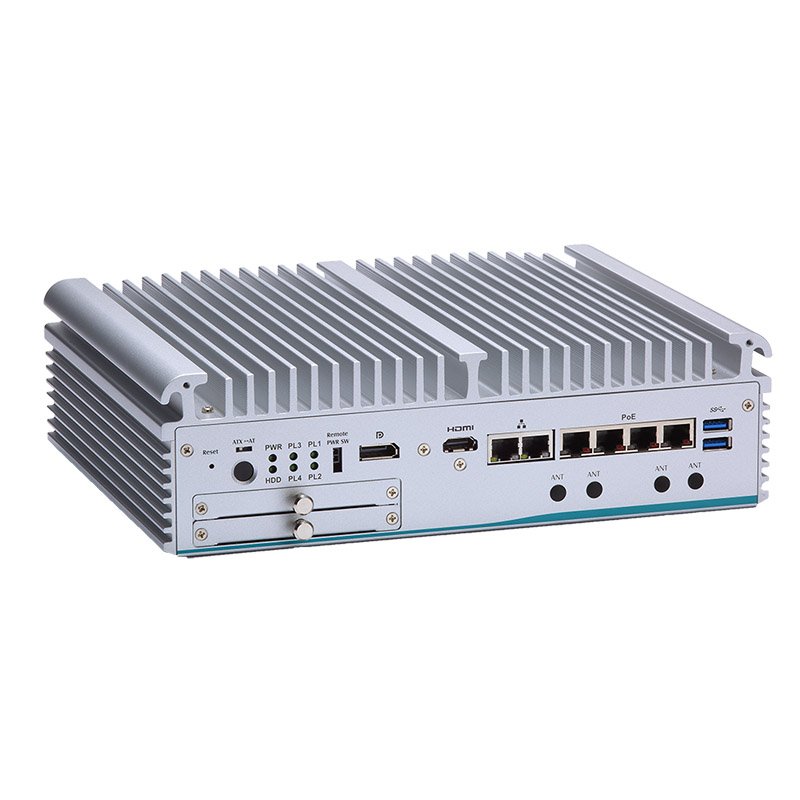

eBOX671-521-FL - GPU Embedded Computing System● 9th/8th gen Intel® Core™ i7/i5/i3 & Celeron® with Intel® Q370 chipset (Coffee Lake/Coffee Lake Refresh-S)
● 4-CH PoE (IEEE802.3at compliance)
● Dual swappable 2.5" SATA HDD drive bay with RAID 0 &1
● Supports MXM 3.1 type A graphics module (optional)
● Supports Intel® Movidius™ Myriad™ X VPU (optional mPCIe)
● Supports Intel® Distribution of OpenVINO™ toolkit (optional)
● DVI-I, HDMI, and DisplayPort with triple-view supported
● AMS.AXView 3.0 intelligent remote monitoring software for IIoT
Protech High Performance Intel® Kabylake-U Fanless Embedded PC - BS-E099● Intel® 7th Gen. Core™ i5 / i3 / Pentium® CPU (fanless)
● 4K resolution DP & HDMI support
● Max up to 8 ports USB or 4 ports COM
● Digital I/O 8 in / 8 out support
● DC power in support 12V / 24V
● Operating temperature support max -10°C ~60°C
Protech Compact and Fanless Embedded PC - SE-N207● Intel® 8th Gen. Core™ i7/ i5/ i3 and Celeron mobile processor
● Storage and Main Board easy maintenance design
● Three independent displays (1 x HDMI + 2 x HDMI/DP up to 4K)
● Multiple I/O board (LAN / USB / COM / CANBus / LPT) (Optional)
● PoE function (Support PD / PSE)(Optional)
● Expansion slot (full-sized Mini PCIe / SD slot / M.2)
● Support 4 x antenna holes
● Support power remote switch
● Wide-ranged voltage DC In (9~36V)
● Wide-ranged temperature (Optional)
● TPM module (Optional)
eBOX800-900-FL Rugged IP67-rated Fanless Edge System with LTE modem€ 1.125,00 Excl. BTWRugged IP67-rated Fanless Edge System with NVIDIA® JETSON™ TX2, 1 HDMI, 1 GbE LAN, 1-CH PoE, 1 USB 2.0 and 100 to 240 V AC Power input
● IP67-rating for outdoor use
● NVIDIA® JETSON™ TX2 with Pascal™, 256 CUDA cores GPU
● High AI computing performance for GPU-accelerated processing
● -30°C to +60°C operating temperature range
● 100 to 240 VAC wide range power input with 10kV surge protection
● 4 N-jack antenna openings with water proof design
● Features M12 lockable I/Os
● 1 IEEE 802.3at GbE LAN port (30W)
● Rich I/O options for customized designs and mission-critical projects

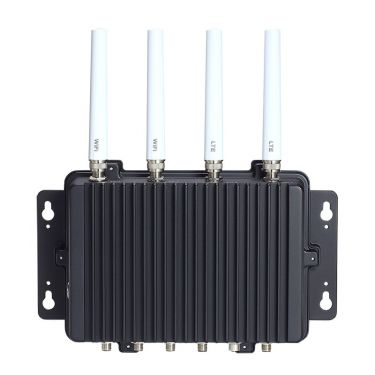

Axiomtek eBOX800-511-FLIP67-rated Fanless Embedded System with Intel Core™ i5-7300U/Celeron® 3965U, VGA, 1 GbE LAN, 2 USB, 2 COM and 9 ~ 36V DC
● IP67 rated Edge computing for outdoor environment
● Intel® Core™ i5-7300U or Celeron® 3965U onboard
● 9 ~ 36 VDC wide range power input
● -30°C ~ +60°C wide operating temperature range
● M12 lockable I/O supported
● Quick customized service for mission critical projects

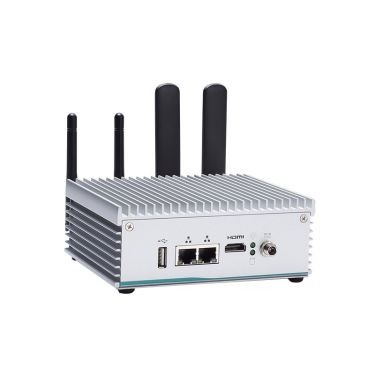

Industrial Fanless Edge System - eBOX560-900-FLFanless Edge System with NVIDIA® JETSON™ TX2, 1 HDMI 2.0, 2 GbE LANs and 1 USB 2.0
● NVIDIA® JETSON™ TX2 w/ Pascal™, 256 CUDA cores GPU
● High AI computing performance for GPU-accelerated processing
● Ideal for intelligent edge applications
● Compact size w/ NVMe supported
● JetPack support

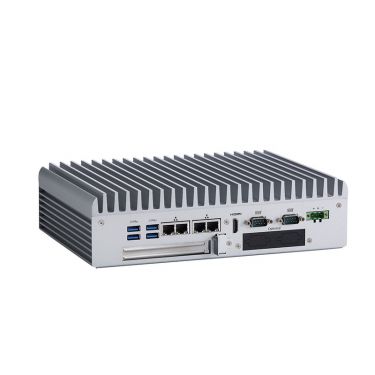

Axiomtek eBOX700-891-FLFanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® H110, 2 HDMI ,1 DisplayPort, 4 GbE LANs, 6 USB, 1 PCIe x4 Expansion and 9 ~ 36 VDC
● Fanless operating temperature range from -40°C to +50°C
● 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® processor
● 1 x PCIe x4 expansion slot
● 6 USB ports and 4 GbE LANs
● 2 full-size PCIe Mini Card for WLAN/WWAN/mSATA

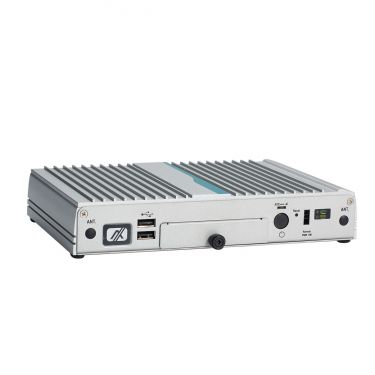

Axiomtek fanless low power embedded system - eBOX100-312-FLFanless Embedded System with Intel® Celeron® Processor N3350 2.4 GHz, 2 HDMI, 2 GbE LANs and 6 USB
● Fanless operation with low power consumption
● Intel® Celeron® N3350 2.4 GHz dual core
● 1 COM port, 6 USB ports and 2 GbE LANs
● 2 full-size PCIe Mini Card slots for WLAN and WWAN
● 2.5" swappable SATA HDD drive bay for easy to maintain
● Supports Jumbo Frame (9k), WoL, PXE Remote Boot
● Suitable for smart retail and light industries

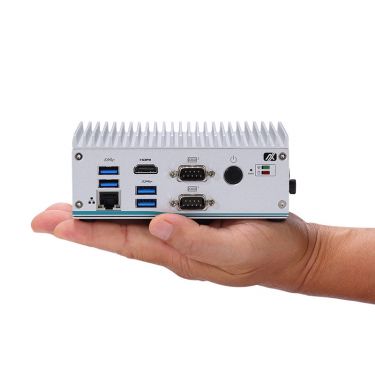

Industrial Fanless Embedded System - eBOX560-512-FLFanless Embedded System with Intel® Core™ i5-7300U 3.5 GHz/Celeron® 3965U 2.2 GHz, 2 HDMI, 2 GbE LANs, 4 USB 3.0 and PCI Express Mini Card Slot
● Intel® Core™ i5-7300U 3.5 GHz/Celeron® 3965U 2.2 GHz
● Ultra-compact enclosure and wide range power input with protection
● 1 PCI Express Mini Card slot and 4 USB 3.0
● One 2.5" SATA HDD drive bay and mSATA interface
● 2 HDMI with dual-view support
● AXView 2.0 supported

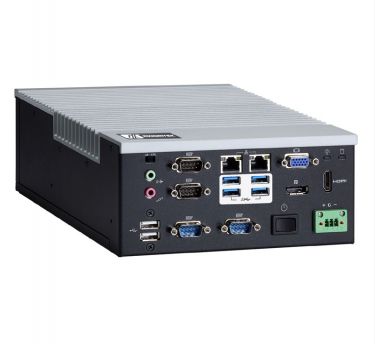

Axiomtek Fanless Embedded System eBOX640-500-FLFanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ & Celeron® Processor, Intel® H110, 1 HDMI/DP/VGA, 4 USB 3.0, 4 COM, 1 PCIe Mini Card and 10 - 30 V DC
● LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Skylake/Kaby Lake)
● Fanless operation with compact size design
● 4 COM, 6 USB and 2 GbE LANs
● Two 2.5" SATA drive bay, 1 PCIe Mini Card and 1 SIM slot
● Front panel I/O connectivity design
● 10~30 V DC wide range power input

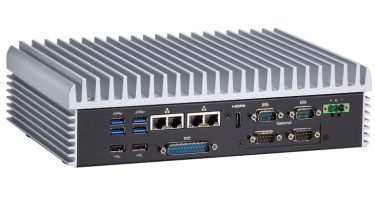

Axiomtek eBOX670-891-FLFanless Embedded System with LGA1151 Socket 6th Generation Intel® Core™ i7/i5/i3 & Celeron® processor, Intel® Q170, 2 HDMI, 1 DisplayPort, 4 GbE LANs, 6 USB 3.0, dual PCIe Mini Card and Wide Range DC-in
● LGA1151 socket 6th generation Intel® Core™ i7/i5/i3 & Celeron® processor (Skylake) with Intel® Q170
● Dual DDR4-2133 SO-DIMM up to 32 GB
● 2 internal PCI Express Mini Cards and 1 SIM slot for WLAN/WWAN
● DispalyPort and 2 HDMI (1 HDMI 2.0) with triple-view supported
● Supports Jumbo Frame (9.5k), WoL, PXE remote boot, teaming
● Supports wide range 9 to 36 VDC input
● Supports various I/O modules
● Supports AXView 2.0 intelligent remote management software
