Fanless Embedded System with Intel® Xeon®, 9th/8th Gen Intel® Core™ i7/i5/i3 Processor, Intel® C246, ECC/Non-ECC and 1 PCIe x4 Expansion Slot

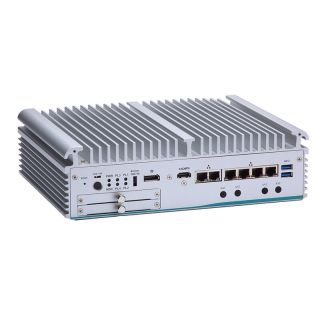

The eBOX710-521-FL is powered by the workstation-grade Intel® Xeon® processor with the Intel® C246 chipset. It is also capable of offering the best quality imaging with triple independent displays. To meet different needs in the automation industry, the eBOX710-521-FL has a flexible I/O window slot for ease of customization and two swappable 2.5” SATA HDD drive bays with Intel® RAID 0&1.

The durable embedded system was designed to operate reliably in industrial environments with a wide operating temperature range of -40°C to 70°and vibration endurance for up to 3G. It is well-suited for machine learning, deep learning, intelligent surveillance, robotic control, edge computing, and more AIoT applications. The eBOX710-521-FL features scalable CPU options with the Intel® Xeon® processor, 9th/8th generation Intel® Core™ or Intel® Celeron® processor to satisfy a range of performance requirements and price points.

It is equipped with two 260-pin DDR4-2666 ECC/non-ECC SO-DIMM slots for up to 64GB of system memory. The workstation-grade embedded system offers complete expandability and full featured I/O, including two RS-232/422/485, one DVI-I, one HDMI, one DisplayPort, four USB 3.2 Gen2, two USB 3.2 Gen1 and six Gigabit Ethernet port. It also offers a Phoenix-type VDC power input connector, one AT/ATX quick switch, one ATX power switch, one reset switch, and one remote switch. In addition, it comes with two full-size PCI Express Mini Card slots, two SIM slots and four SMA-type antenna openings for 3G/4G, GPS, Wi-Fi, Bluetooth or other RF connections.
