Axiomtek Industrial fanless embedded system - eBOX560-512-FL (Axiomtek ebox)

Details

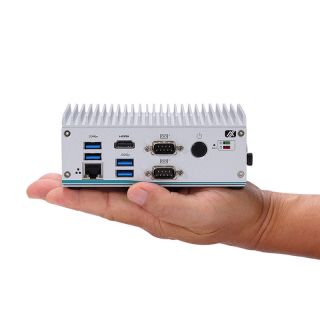

Axiomtek has launched the eBOX560-512-FL, an extremely compact embedded system powered by the Intel® Core™ i5-7300U or Celeron® 3965U processor (formally codename: Kaby Lake). To enhance system efficiency, the embedded box PC supports one 260-pin DDR4-2133 SO-DIMM socket with up to 16 GB system memory. Two HDMI ports with up to 4K resolution are supported for dual independent display applications. The palm-sized fanless embedded system is dedicated to smart factory automation, thin clients, industrial controller system, digital signage and retail equipment.

“Axiomtek's eBOX560-512-FL was designed to operate reliably in industrial and embedded application environments. It is enclosed in an IP40-rated heavy-duty aluminum extrusion and steel enclosure and offers a wide operating temperature range from -10°C to 55°C and up to 3G vibration endurance,” said Janney Lee, a product manager of Product PM Division at Axiomtek.

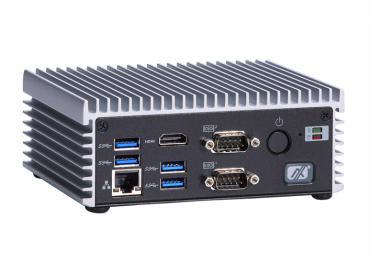

To meet various communication requirements, the compact Intel® Core™-based embedded PC provides four USB 3.0 ports, two RS-232/422/485 ports, two Gigabit Ethernet ports, two HDMI ports, and a lockable 12 VDC power input with power protection feature. One PCI Express Mini Card slot and two antenna connectors enable wireless network communications. Additionally, it offers one 2.5" SATA HDD and one mSATA for data storage. This super lightweight embedded box computer also features a user-friendly AT/ATX DIP switch to allow users to make quick adjustments with a single click.

The high-performance eBOX560-512-FL is compatible with Windows® 10 IoT. It also supports Axiomtek’s exclusive AXView 2.0 software for smart device monitoring and remote management for industrial internet of things applications. For flexible installation, this fanless rugged embedded platform supports wall mount, VESA mount and DIN-rail mount.

Advanced Features:
Intel® Core™ i5-7300U 3.5 GHz/Celeron® 3965U 2.2 GHz (codename: Kaby Lake)
Ultra-compact enclosure and wide range power input with protection
1 PCI Express Mini Card slot and 4 USB 3.0 ports
One 2.5" SATA HDD drive bay and mSATA interface
2 HDMI with dual-view
AXView 2.0 supported

SPECIFICATIES

Meer informatie

Art.nr.

eBOX560-512

Fabrikant

Axiomtek

Land van herkomst

Taiwan

Construction

Aluminum extrusion and heavy-duty steel, IP40

CPU

Intel® Core™ i5-7300U 3.5 GHz/Celeron® 3965U 2.2 GHz

System Memory

1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB

Chipset

SoC integrated

BIOS

AMI

System I/O Outlet

4 x USB 2.0
2 x Antenna opening
1 x ATX/AT quick switch
1 x ATX power switch
1 x Reset button
2 x RS-232/422/485
2 x 10/100/1000 Mbps Ethernet (Intel® i210AT, i219LM)
2 x HDMI with dual-view support
1 x DC power input (screw type)

Watchdog Timer

255 levels, 1 ~ 255 sec.

Expansion Interface

1 x full-size PCI Express Mini Card slot (USB + PCIe)

Storage

1 x 2.5" SATA HDD drive bay 1 x mSATA

System Indicator

1 x green LED for system power-on
1 x yellow LED for HDD active

Power Supply

12V DC

Operating Temperature

-10°C ~ +55°C
